Suzuki DF 115 Parts Listings
S/N 11502F-210001 to 11502F-21XXXX
S/N 11502Z-210001 to 11502Z-21XXXX

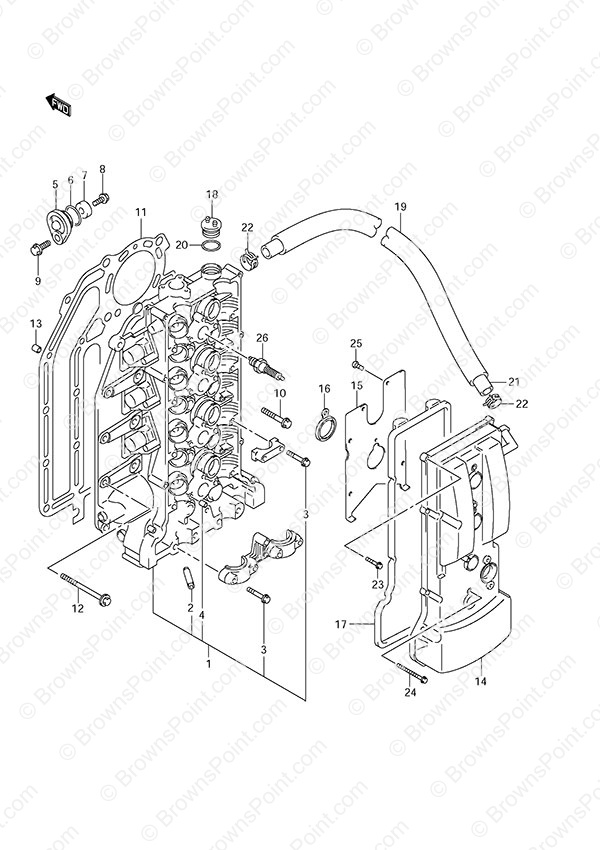

Fig. 1 - Cylinder Head
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 11100-90J11 Cylinder Head
SKU: 11100-90J11 Weight: 30.000000 Brand: Price: $ 1,875.87 |
Cylinder Head | 1 | $ 1,875.87 | ||
| 2 | 11115-85FA1-001 Valve Guide (OS:0.30)
SKU: 11115-85FA1-001 Weight: 0.125000 Brand: Price: $ 27.40 |
Valve Guide (OS:0.30) | 16 | $ 27.40 | Optional | |
| 3 | 09103-06266 Bolt (6x40)
SKU: 09103-06266 Weight: 0.250000 Brand: Price: $ 2.21 |
Bolt (6x40) | 21 | $ 2.21 | ||
| 4 | 09206-08001 Knock Pin (8x11)
SKU: 09206-08001 Weight: 0.060000 Brand: Price: $ 1.78 |
Knock Pin (8x11) | 18 | $ 1.78 | ||
| 5 | 11261-93J00 Protection Anode Cover
SKU: 11261-93J00 Weight: 0.150000 Brand: Price: $ 16.29 |
Protection Anode Cover | 2 | $ 16.29 | ||
| 6 | 09280-22019 O-Ring
SKU: 09280-22019 Weight: 0.060000 Brand: Price: $ 2.38 |
O-Ring | 2 | $ 2.38 | ||
| 7 | 55321-87J01 Aluminum Anode
SKU: 55321-87J01 Weight: 0.125000 Brand: Price: $ 7.36 |
Aluminum Anode | 2 | $ 7.36 | ||
| 8 | 09103-06281 Bolt (6x14)
SKU: 09103-06281 Weight: 0.060000 Brand: Price: $ 2.99 |
Bolt (6x14) | 2 | $ 2.99 | ||
| 9 | 01550-08207 BOLT
SKU: 01550-08207 Weight: 0.060000 Brand: Price: $ 2.74 |
BOLT | 2 | $ 2.74 | ||
| 10 | 11117-89J00 Bolt
SKU: 11117-89J00 Weight: 0.200000 Brand: Price: $ 6.49 |
Bolt | 10 | $ 6.49 | ||
| 11 | 11141-90J01 Cylinder Head Gasket
SKU: 11141-90J01 Weight: 0.380000 Brand: Price: $ 90.51 |
Cylinder Head Gasket | 1 | $ 90.51 | ||
| 12 | 09116-08125 Bolt (8x50)
SKU: 09116-08125 Weight: 0.100000 Brand: Price: $ 2.91 |
Bolt (8x50) | 8 | $ 2.91 | ||
| 13 | 04211-13189 PIN
SKU: 04211-13189 Weight: 0.060000 Brand: Price: $ 2.21 |
PIN | 2 | $ 2.21 | ||
| 14 | 11170-90J01 Cylinder Head Cover
SKU: 11170-90J01 Weight: 2.000000 Brand: Price: $ 310.99 |
Cylinder Head Cover | 1 | $ 310.99 | ||
| 15 | 11173-90J00 Breather Plate
SKU: 11173-90J00 Weight: 0.400000 Brand: Price: $ 9.89 |
Breather Plate | 1 | $ 9.89 | ||
| 16 | 11179-90J00 Spark Plug Hole Gasket
SKU: 11179-90J00 Weight: 0.060000 Brand: Price: $ 7.00 |
Spark Plug Hole Gasket | 4 | $ 7.00 | ||
| 17 | 11189-90J00 Cylinder Head Cover Gasket
SKU: 11189-90J00 Weight: 0.120000 Brand: Price: $ 30.24 |
Cylinder Head Cover Gasket | 1 | $ 30.24 | ||
| 18 | 11382-99E00 Oil Filler Cap
SKU: 11382-99E00 Weight: 0.060000 Brand: Price: $ 7.28 |
Oil Filler Cap | 1 | $ 7.28 | ||
| 19 | 18498-90J20 Breather Hose Protector *
SKU: 18498-90J20 Weight: 0.160000 Brand: Price: $ 9.89 |
Breather Hose Protector * | 1 | $ 9.89 | ||
| 20 | 09280-26006 O-Ring
SKU: 09280-26006 Weight: 0.060000 Brand: Price: $ 2.80 |
O-Ring | 1 | $ 2.80 | ||
| 21 | 09355-13207-00B Breather Hose
SKU: 09355-13207-00B Weight: 12.000000 Brand: Price: $ 65.02 |
Breather Hose | 1 | $ 65.02 | L:2000->660 | |
| 22 | 09401-20409 Clip
SKU: 09401-20409 Weight: 0.060000 Brand: Price: $ 3.71 |
Clip | 2 | $ 3.71 | ||
| 23 | 01547-06257 BOLT 6X25
SKU: 01547-06257 Weight: 0.060000 Brand: Price: $ 2.04 |
BOLT 6X25 | 11 | $ 2.04 | ||
| 24 | 01547-06557 BOLT 6 X 55
SKU: 01547-06557 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT 6 X 55 | 4 | $ 2.33 | ||
| 26 | 09482-00427 NGK BKR6E Spark Plug
SKU: 09482-00427 Weight: 0.187500 Brand: Price: $ 3.77 |
NGK BKR6E Spark Plug | 4 | $ 3.77 | ||
| 25 | 02112-0612A SCREW
SKU: 02112-0612A Weight: 0.060000 Brand: Price: $ 1.44 |
SCREW | 7 | $ 1.44 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
