Suzuki DF 90A Parts Listings - 2013
S/N 09003F-310001 to 09003F-31XXXX

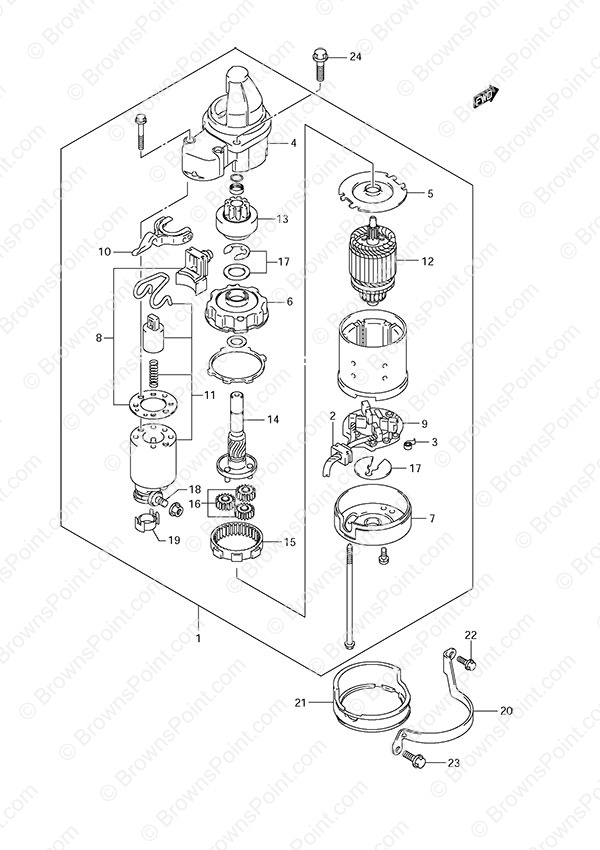

Fig. 23 - Starting Motor
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 31100-96J02 Starter Motor Assembly
SKU: 31100-96J02 Weight: 6.620000 Brand: Price: $ 911.82 |
Starter Motor Assembly | 1 | $ 911.82 | ||
| 2 | 31131-90J01 Brush Set (+)
SKU: 31131-90J01 Weight: 0.100000 Brand: Price: $ 40.03 |
Brush Set (+) | 1 | $ 40.03 | ||
| 3 | 31135-90J00 Spring
SKU: 31135-90J00 Weight: 0.060000 Brand: Price: $ 8.46 |
Spring | 4 | $ 8.46 | ||
| 4 | 31151-94J01 Gear Case
SKU: 31151-94J01 Weight: 1.000000 Brand: Price: $ 172.32 |
Gear Case | 1 | $ 172.32 | ||
| 5 | 31152-90J00 Center Plate (NLA)
SKU: 31152-90J00 Weight: 0.100000 Brand: Price: $ 16.98 |
Center Plate (NLA) | 1 | $ 16.98 | ||
| 6 | 31153-90J00 Planet Gear Bracket (NLA)
SKU: 31153-90J00 Weight: 0.100000 Brand: Price: $ 29.89 |
Planet Gear Bracket (NLA) | 1 | $ 29.89 | ||
| 7 | 31170-90J00 Rear Cover Assembly
SKU: 31170-90J00 Weight: 0.250000 Brand: Price: $ 43.52 |
Rear Cover Assembly | 1 | $ 43.52 | ||
| 8 | 31171-96J00 Dust Cover Kit
SKU: 31171-96J00 Weight: 0.100000 Brand: Price: $ 18.24 |
Dust Cover Kit | 1 | $ 18.24 | ||
| 9 | 31173-90J02 Brush Holder
SKU: 31173-90J02 Weight: 0.250000 Brand: Price: $ 123.62 |
Brush Holder | 1 | $ 123.62 | ||
| 10 | 31191-96J00 Shift Lever (NLA)
SKU: 31191-96J00 Weight: 0.100000 Brand: Price: $ 15.49 |
Shift Lever (NLA) | 1 | $ 15.49 | ||
| 11 | 31220-94J00 Magnet Switch
SKU: 31220-94J00 Weight: 0.500000 Brand: Price: $ 254.81 |
Magnet Switch | 1 | $ 254.81 | ||
| 12 | 31310-90J00 Armature
SKU: 31310-90J00 Weight: 5.000000 Brand: Price: $ 574.14 |
Armature | 1 | $ 574.14 | ||
| 13 | 31320-93J00 Pinion Assembly (NLA)
SKU: 31320-93J00 Weight: 0.100000 Brand: Price: $ 200.83 |
Pinion Assembly (NLA) | 1 | $ 200.83 | ||
| 14 | 31341-93J00 Pinion Shaft (NLA)
SKU: 31341-93J00 Weight: 0.100000 Brand: Price: $ 101.44 |
Pinion Shaft (NLA) | 1 | $ 101.44 | ||
| 15 | 31343-90J00 Internal Gear (NLA)
SKU: 31343-90J00 Weight: 0.100000 Brand: Price: $ 63.52 |
Internal Gear (NLA) | 1 | $ 63.52 | ||
| 16 | 31344-90J00 Planetary Gear (NLA)
SKU: 31344-90J00 Weight: 0.100000 Brand: Price: $ 27.77 |
Planetary Gear (NLA) | 3 | $ 27.77 | ||
| 17 | 31360-93J01 Washer Set
SKU: 31360-93J01 Weight: 0.100000 Brand: Price: $ 13.71 |
Washer Set | 1 | $ 13.71 | ||
| 18 | 31913-93J00 Terminal
SKU: 31913-93J00 Weight: 0.100000 Brand: Price: $ 20.06 |
Terminal | 1 | $ 20.06 | ||
| 19 | 31914-93J00 Terminal Cap
SKU: 31914-93J00 Weight: 0.100000 Brand: Price: $ 4.72 |
Terminal Cap | 1 | $ 4.72 | ||
| 20 | 31912-87L00 Starting Motor Band (NLA)
SKU: 31912-87L00 Weight: 0.250000 Brand: Price: $ 11.33 |
Starting Motor Band (NLA) | 1 | $ 11.33 | ||
| 21 | 31918-87L00 Lower Damper
SKU: 31918-87L00 Weight: 0.250000 Brand: Price: $ 7.79 |
Lower Damper | 1 | $ 7.79 | ||
| 22 | 01550-06167 BOLT
SKU: 01550-06167 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 1 | $ 2.33 | ||
| 23 | 01550-08207 BOLT
SKU: 01550-08207 Weight: 0.060000 Brand: Price: $ 2.74 |
BOLT | 1 | $ 2.74 | ||
| 24 | 01550-08357 BOLT
SKU: 01550-08357 Weight: 0.060000 Brand: Price: $ 3.54 |
BOLT | 2 | $ 3.54 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
