Suzuki DF 70A Parts Listings - 2013
S/N 07003F-310001 to 07003F-31XXXX

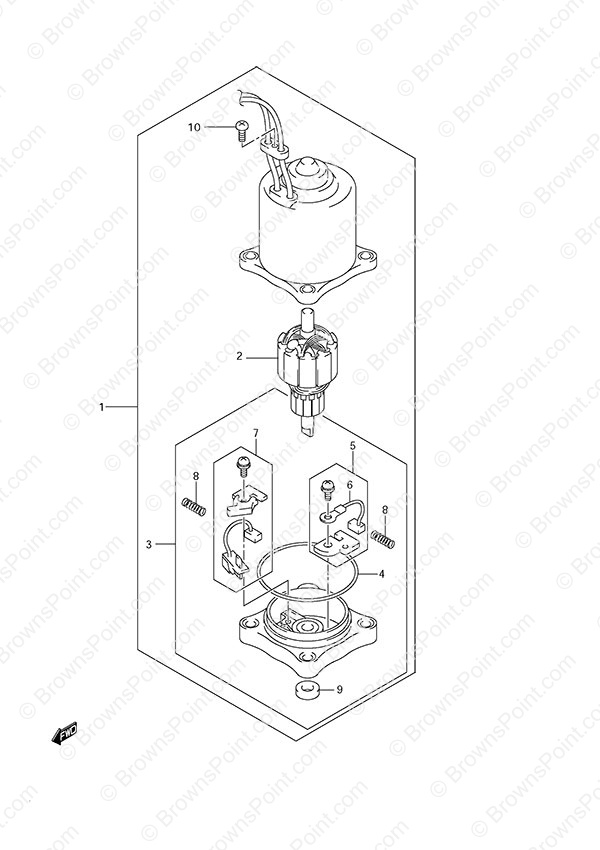

Fig. 34 - PTT Motor

Ref# Part Number Description Req Qty* Price Each Order Remarks
1 38100-87L04 PTT Motor Assembly 1 $ 486.66
2 31311-93J00 Armature (NLA) 1 $ 482.48
3 31173-94920 Brush Holder Assembly 1 $ 339.85
4 31123-94910 O-Ring 1 $ 14.72
5 31133-90J20 Brush Assembly 1 $ 9.64
6 31133-94910 Brush 1 $ 12.57
7 31136-90J20 Breaker Assembly 1 $ 57.61
8 31135-94900 Spring 2 $ 5.02
9 33799-97E00 Oil Seal 1 $ 23.27
10 31111-94900 Yoke Screw 1 $ 4.39

Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each. The information on this page is specific to the model and year and/or serial number shown in the header above.

Please verify your model and serial number before placing your order.
