Suzuki DF 70A Parts Listings - 2013
S/N 07003F-310001 to 07003F-31XXXX

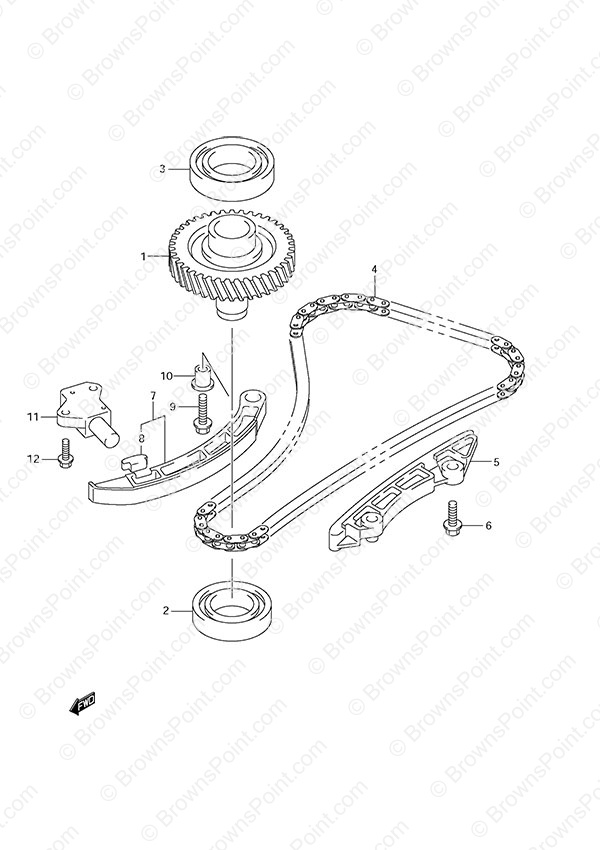

Fig. 5 - Timing Chain
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 12730-87L00 Driven Gear
SKU: 12730-87L00 Weight: 1.000000 Brand: Price: $ 217.82 |
Driven Gear | 1 | $ 217.82 | ||
| 2 | 09262-32008 Bearing (32x58x13)
SKU: 09262-32008 Weight: 0.500000 Brand: Price: $ 35.16 |
Bearing (32x58x13) | 1 | $ 35.16 | ||
| 3 | 09262-35070 Bearing (35x62x14)
SKU: 09262-35070 Weight: 0.250000 Brand: Price: $ 47.33 |
Bearing (35x62x14) | 1 | $ 47.33 | ||
| 4 | 12761-87L00 Timing Chain
SKU: 12761-87L00 Weight: 1.000000 Brand: Price: $ 98.22 |
Timing Chain | 1 | $ 98.22 | ||
| 5 | 12771-87L00 Timing Chain Guide (NLA)
SKU: 12771-87L00 Weight: 0.250000 Brand: Price: $ 74.43 |
Timing Chain Guide (NLA) | 1 | $ 74.43 | ||
| 6 | 01550-0825A BOLT
SKU: 01550-0825A Weight: 0.100000 Brand: Price: $ 2.33 |
BOLT | 2 | $ 2.33 | ||
| 7 | 12810-87L00 Timing Chain Tensioner Assembly
SKU: 12810-87L00 Weight: 0.500000 Brand: Price: $ 85.63 |
Timing Chain Tensioner Assembly | 1 | $ 85.63 | ||
| 8 | 12813-73G00 Timing Chain Tensioner Pad
SKU: 12813-73G00 Weight: 0.100000 Brand: Price: $ 4.09 |
Timing Chain Tensioner Pad | 1 | $ 4.09 | ||
| 9 | 01550-0835A BOLT
SKU: 01550-0835A Weight: 0.060000 Brand: Price: $ 3.09 |
BOLT | 1 | $ 3.09 | ||
| 10 | 12812-90J00 Timing Chain Tensioner Spacer
SKU: 12812-90J00 Weight: 0.100000 Brand: Price: $ 7.10 |
Timing Chain Tensioner Spacer | 1 | $ 7.10 | ||
| 11 | 12831-93J01 Tensioner Adjuster Assembly
SKU: 12831-93J01 Weight: 0.250000 Brand: Price: $ 100.53 |
Tensioner Adjuster Assembly | 1 | $ 100.53 | ||
| 12 | 01550-0620A BOLT
SKU: 01550-0620A Weight: 0.060000 Brand: Price: $ 1.97 |
BOLT | 2 | $ 1.97 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
