Suzuki DF 90A Parts Listings - 2012
S/N 09003F-210001 to 09003F-21XXXX

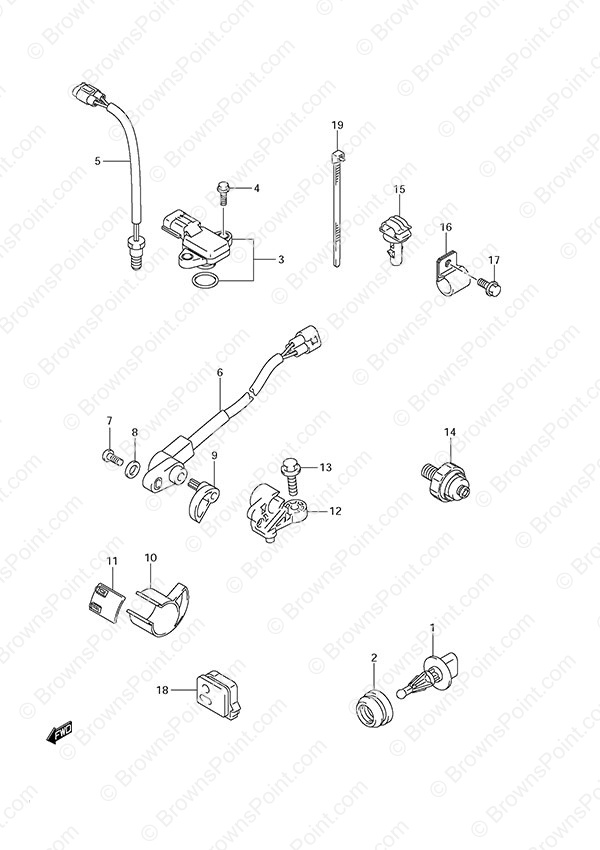

Fig. 26 - Sensor
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 13650-52G00 Inlet Air Temp Sensor
SKU: 13650-52G00 Weight: 0.060000 Brand: Price: $ 113.36 |
Inlet Air Temp Sensor | 1 | $ 113.36 | ||
| 2 | 13655-87J01 Air Temp Sensor Grommet
SKU: 13655-87J01 Weight: 0.125000 Brand: Price: $ 2.91 |
Air Temp Sensor Grommet | 1 | $ 2.91 | ||
| 3 | 18590-68H00 MAP Sensor
SKU: 18590-68H00 Weight: 0.120000 Brand: Price: $ 297.49 |
MAP Sensor | 1 | $ 297.49 | ||
| 4 | 02162-05207 SCREW
SKU: 02162-05207 Weight: 0.060000 Brand: Price: $ 1.95 |
SCREW | 2 | $ 1.95 | ||
| 5 | 34830-87J20 Temp Sensor Assy
SKU: 34830-87J20 Weight: 0.060000 Brand: Price: $ 71.57 |
Temp Sensor Assy | 1 | $ 71.57 | ||
| 6 | 34840-98J11 Trim Sensor Assembly
SKU: 34840-98J11 Weight: 0.500000 Brand: Price: $ 132.01 |
Trim Sensor Assembly | 1 | $ 132.01 | ||
| 7 | 09125-05046 Screw (5x12)
SKU: 09125-05046 Weight: 0.060000 Brand: Price: $ 1.82 |
Screw (5x12) | 1 | $ 1.82 | ||
| 8 | 09160-05029 Washer (5.5x10x0.8)
SKU: 09160-05029 Weight: 0.060000 Brand: Price: $ 1.70 |
Washer (5.5x10x0.8) | 1 | $ 1.70 | ||
| 9 | 34841-87L10 Trim Sensor Lever
SKU: 34841-87L10 Weight: 0.200000 Brand: Price: $ 3.83 |
Trim Sensor Lever | 1 | $ 3.83 | ||
| 10 | 34842-87L01 Trim Sensor Upper Cam
SKU: 34842-87L01 Weight: 0.250000 Brand: Price: $ 5.86 |
Trim Sensor Upper Cam | 1 | $ 5.86 | ||
| 11 | 99103-11252 Trim Sensor Lower Cam
SKU: 99103-11252 Weight: 0.125000 Brand: Price: $ 3.89 |
Trim Sensor Lower Cam | 1 | $ 3.89 | ||
| 12 | 34845-87L10 Trim Sensor Bracket
SKU: 34845-87L10 Weight: 0.200000 Brand: Price: $ 14.84 |
Trim Sensor Bracket | 1 | $ 14.84 | ||
| 13 | 01550-06207 BOLT
SKU: 01550-06207 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 1 | $ 2.33 | ||
| 14 | 37820-99E02 Oil Pressure Switch
SKU: 37820-99E02 Weight: 0.125000 Brand: Price: $ 24.10 |
Oil Pressure Switch | 1 | $ 24.10 | ||
| 15 | 09403-07338 Clamp (NLA)
SKU: 09403-07338 Weight: 0.100000 Brand: Price: $ 3.23 |
Clamp (NLA) | 1 | $ 3.23 | ||
| 16 | 09403-13413 CLAMP
SKU: 09403-13413 Weight: 0.000000 Brand: Price: $ 5.28 |
CLAMP | 1 | $ 5.28 | ||
| 17 | 01550-06127 BOLT
SKU: 01550-06127 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 1 | $ 2.33 | ||
| 18 | 36656-87L00 PTT Cable Grommet
SKU: 36656-87L00 Weight: 0.060000 Brand: Price: $ 4.46 |
PTT Cable Grommet | 1 | $ 4.46 | ||
| 19 | 09407-14407 Clamp (L:140)
SKU: 09407-14407 Weight: 0.060000 Brand: Price: $ 3.09 |
Clamp (L:140) | 2 | $ 3.09 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
