Suzuki DF 90A Parts Listings - 2012
S/N 09003F-210001 to 09003F-21XXXX

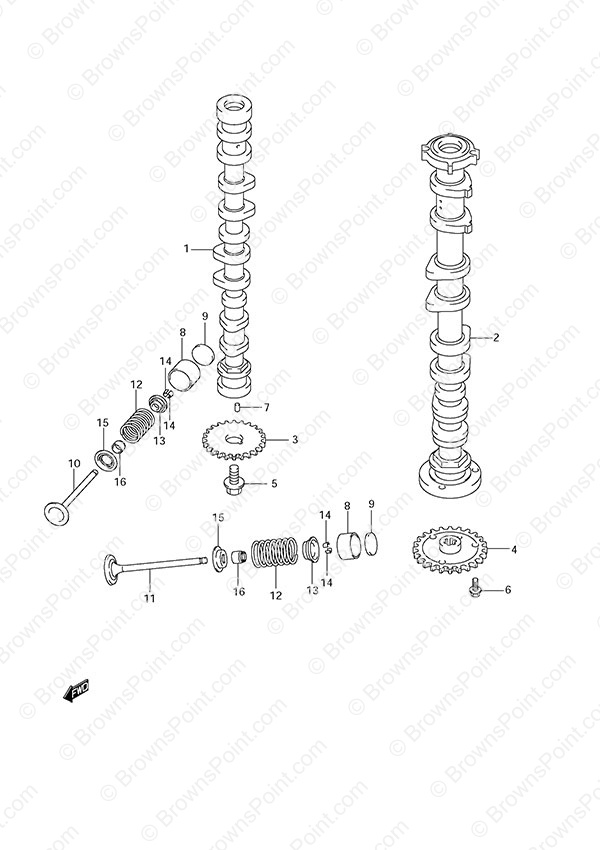

Fig. 8 - Camshaft

Ref# Part Number Description Req Qty* Price Each Order Remarks
1 12701-87L10 Intake Camshaft 1 $ 317.40

Not Available

2 12705-87L10 Exhaust Camshaft 1 $ 441.56
3 12741-90J01 Camshaft Timing Sprocket 1 $ 21.84
4 12748-87L00 Exhaust Camshaft Sprocket 1 $ 50.74
5 12749-93J00 Exhaust Camshaft Bolt 1 $ 3.29
6 01550-0612A BOLT 3 $ 1.97
7 04221-05109 PIN 2 $ 1.49
8 12891-69J00 Tappet (NLA) 16 $ 26.10

Not Available

9-1 12892-69J00-228 Tappet Shim (2.28) 0 $ 11.52
9-2 12892-69J00-230 Tappet Shim (2.30) 0 $ 11.52
9-3 12892-69J00-232 Tappet Shim (2.32) 0 $ 11.52
9-4 12892-69J00-234 Tappet Shim (2.34) 0 $ 11.09
9-5 12892-69J00-236 Tappet Shim (2.36) 0 $ 11.52
9-6 12892-69J00-238 Tappet Shim (2.38) 0 $ 11.52
9-7 12892-69J00-240 Tappet Shim (2.40) 0 $ 11.52
9-8 12892-69J00-242 Tappet Shim (2.42) 0 $ 11.09
9-9 12892-69J00-244 Tappet Shim (2.44) 0 $ 11.31
9-10 12892-69J00-246 Tappet Shim (2.46) 0 $ 11.31
9-11 12892-69J00-248 Tappet Shim (2.48) 0 $ 11.31
9-12 12892-69J00-250 Tappet Shim (2.50) 0 $ 11.31
9-13 12892-69J00-252 Tappet Shim (2.52) 0 $ 11.09
9-14 12892-69J00-254 Tappet Shim (2.54) 0 $ 11.09
9-15 12892-69J00-256 Tappet Shim (2.56) 0 $ 11.09
9-16 12892-69J00-258 Tappet Shim (2.58) 0 $ 11.52
9-17 12892-69J00-260 Tappet Shim (2.60) 0 $ 11.52
9-18 12892-69J00-262 Tappet Shim (2.62) 0 $ 11.52
9-19 12892-69J00-264 Tappet Shim (2.64) 0 $ 11.52
9-20 12892-69J00-266 Tappet Shim (2.66) 0 $ 11.52
9-21 12892-69J00-268 Tappet Shim (2.68) 0 $ 11.52
9-22 12892-69J00-270 Tappet Shim (2.70) (NLA) 0 $ 8.67

Not Available

9-23 12892-69J00-272 Tappet Shim (2.72) (NLA) 0 $ 8.67

Not Available

10 12911-87L00 Intake Valve 8 $ 31.25
11 12915-87L50 Exhaust Valve 8 $ 42.70
12 12921-87J10 Valve Spring 16 $ 6.48

Not Available

13 12931-78G00 Valve Spring Retainer 16 $ 4.25
14 12932-24400 Valve Cotter 32 $ 2.04
15 12933-51E00 Valve Spring Seat 16 $ 2.44
16 09289-05006 Valve Stem Seal 16 $ 4.02

Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each. The information on this page is specific to the model and year and/or serial number shown in the header above.

Please verify your model and serial number before placing your order.
