Suzuki DF 70A Parts Listings - 2012
S/N 07003F-210001 to 07003F-21XXXX

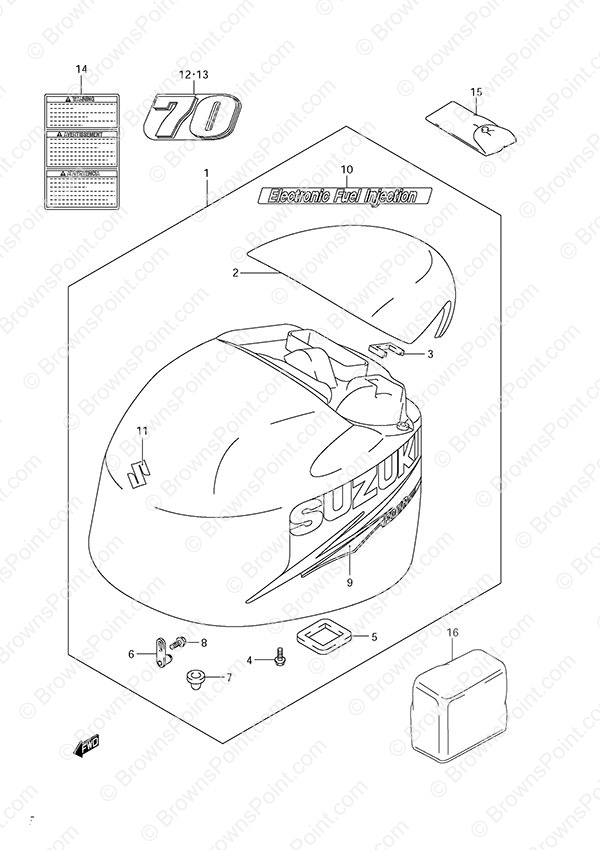

Fig. 39 - Engine Cover
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 61400-87Y80-0EP Engine Cover Set
SKU: 61400-87Y80-0EP Weight: 50.000000 Brand: Price: $ 1,293.36 |
Engine Cover Set | 1 | $ 1,293.36 | ||
| 2 | 61431-87L21-0EP Tilt Up Handle
SKU: 61431-87L21-0EP Weight: 2.000000 Brand: Price: $ 245.36 |
Tilt Up Handle | 1 | $ 245.36 | ||
| 3 | 61439-87L00 Tilt Up Handle Seal (NLA)
SKU: 61439-87L00 Weight: 0.200000 Brand: Price: $ 4.97 |
Tilt Up Handle Seal (NLA) | 1 | $ 4.97 | ||
| 4 | 01550-06167 BOLT
SKU: 01550-06167 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 5 | $ 2.33 | ||
| 5 | 61476-87L00 Air Vent Seal (NLA)
SKU: 61476-87L00 Weight: 0.200000 Brand: Price: $ 4.83 |
Air Vent Seal (NLA) | 1 | $ 4.83 | ||
| 6 | 61610-93J00 Fastener
SKU: 61610-93J00 Weight: 0.060000 Brand: Price: $ 16.59 |
Fastener | 2 | $ 16.59 | ||
| 7 | 09329-10024 Cushion
SKU: 09329-10024 Weight: 0.060000 Brand: Price: $ 4.06 |
Cushion | 2 | $ 4.06 | ||
| 8 | 01550-06127 BOLT
SKU: 01550-06127 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 2 | $ 2.33 | ||
| 9-1 | 61443-87L20 Starboard Engine Cover Stripe
SKU: 61443-87L20 Weight: 0.250000 Brand: Price: $ 54.42 |
Starboard Engine Cover Stripe | 1 | $ 54.42 | ||
| 9-2 | 61453-87L20 Port Engine Cover Stripe
SKU: 61453-87L20 Weight: 0.250000 Brand: Price: $ 45.31 |
Port Engine Cover Stripe | 1 | $ 45.31 | ||
| 10 | 61446-87L12 EFI Decal
SKU: 61446-87L12 Weight: 0.060000 Brand: Price: $ 7.51 |
EFI Decal | 1 | $ 7.51 | ||
| 11 | 68111-18G20 Emblem Mark 'S'
SKU: 68111-18G20 Weight: 0.060000 Brand: Price: $ 34.12 |
Emblem Mark 'S' | 1 | $ 34.12 | ||
| 12 | 61422-87L80 Emblem Mark (70)
SKU: 61422-87L80 Weight: 0.200000 Brand: Price: $ 7.62 |
Emblem Mark (70) | 1 | $ 7.62 | ||
| 13 | 61435-87L51 Rear Emblem Mark (70)
SKU: 61435-87L51 Weight: 0.200000 Brand: Price: $ 8.81 |
Rear Emblem Mark (70) | 1 | $ 8.81 | ||
| 14 | 61458-99E31 Engine Cover Label
SKU: 61458-99E31 Weight: 0.060000 Brand: Price: $ 11.87 |
Engine Cover Label | 1 | $ 11.87 | ||
| 15 | 09800-81841 Tool Set
SKU: 09800-81841 Weight: 1.060000 Brand: Price: $ 28.52 |
Tool Set | 1 | $ 28.52 | ||
| 16 | 68110-87D01 Weather Cover (NLA)
SKU: 68110-87D01 Weight: 0.100000 Brand: Price: $ 72.00 |
Weather Cover (NLA) | 1 | $ 72.00 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
