Suzuki DF 70A Parts Listings - 2012
S/N 07003F-210001 to 07003F-21XXXX

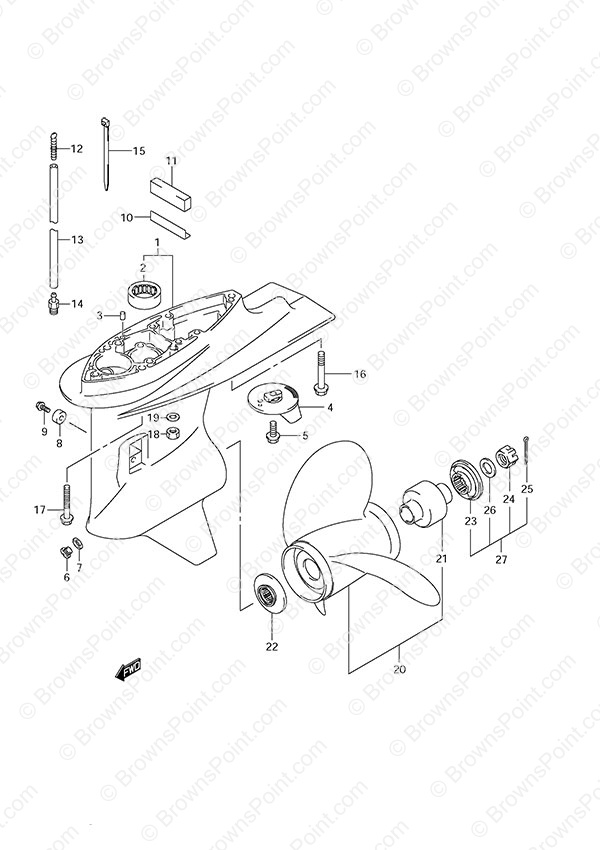

Fig. 37 - Gear Case
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 55110-87L20-0EP Gear Case Housing
SKU: 55110-87L20-0EP Weight: 20.000000 Brand: Price: $ 1,658.63 |
Gear Case Housing | 1 | $ 1,658.63 | ||
| 2 | 09263-26023 Bearing (26x34x30)
SKU: 09263-26023 Weight: 0.125000 Brand: Price: $ 84.31 |
Bearing (26x34x30) | 1 | $ 84.31 | ||
| 3 | 09202-08006 Knock Pin (8x12)
SKU: 09202-08006 Weight: 0.060000 Brand: Price: $ 2.77 |
Knock Pin (8x12) | 2 | $ 2.77 | ||
| 4 | 55125-90J01 Trim Tab
SKU: 55125-90J01 Weight: 0.140000 Brand: Price: $ 24.33 |
Trim Tab | 1 | $ 24.33 | ||
| 5 | 09116-08137 Bolt (8x22)
SKU: 09116-08137 Weight: 0.060000 Brand: Price: $ 7.44 |
Bolt (8x22) | 1 | $ 7.44 | ||
| 6 | 09248-10008 Drain Plug
SKU: 09248-10008 Weight: 0.060000 Brand: Price: $ 6.59 |
Drain Plug | 2 | $ 6.59 | ||
| 7 | 09168-10038 GASKET,DRAIN PL
SKU: 09168-10038 Weight: 0.000000 Brand: Price: $ 2.23 |
GASKET,DRAIN PL | 2 | $ 2.23 | ||
| 8-1 | 55321-87J01 Aluminum Anode
SKU: 55321-87J01 Weight: 0.125000 Brand: Price: $ 7.36 |
Aluminum Anode | 1 | $ 7.36 | ||
| 8-2 | 55321-87J11 Magnesium Anode
SKU: 55321-87J11 Weight: 0.125000 Brand: Price: $ 13.01 |
Magnesium Anode | 1 | $ 13.01 | Opt: Fresh Water Use Only | |
| 9 | 09103-06281 Bolt (6x14)
SKU: 09103-06281 Weight: 0.060000 Brand: Price: $ 2.99 |
Bolt (6x14) | 1 | $ 2.99 | ||
| 10 | 55333-87L00 Exhaust Seal Plate
SKU: 55333-87L00 Weight: 0.200000 Brand: Price: $ 10.44 |
Exhaust Seal Plate | 1 | $ 10.44 | ||
| 11 | 52332-87L10 Exhaust Tube Housing Seal
SKU: 52332-87L10 Weight: 0.200000 Brand: Price: $ 10.87 |
Exhaust Tube Housing Seal | 1 | $ 10.87 | ||
| 12 | 55127-87D00 Hose Union
SKU: 55127-87D00 Weight: 0.060000 Brand: Price: $ 3.83 |
Hose Union | 1 | $ 3.83 | ||
| 13 | 09355-40805-00B Hose (4x8x2000)
SKU: 09355-40805-00B Weight: 0.260000 Brand: Price: $ 29.37 |
Hose (4x8x2000) | 1 | $ 29.37 | L:2000->1500 | |
| 14 | 09362-09008 Nipple
SKU: 09362-09008 Weight: 0.060000 Brand: Price: $ 2.92 |
Nipple | 1 | $ 2.92 | ||
| 15 | 09407-10404 Clamp (L:100)
SKU: 09407-10404 Weight: 0.060000 Brand: Price: $ 2.52 |
Clamp (L:100) | 2 | $ 2.52 | ||
| 16 | 09116-10137 Bolt (10x70)
SKU: 09116-10137 Weight: 0.120000 Brand: Price: $ 8.02 |
Bolt (10x70) | 1 | $ 8.02 | w/Transom (L) | |
| 17 | 09116-10150 Bolt (10x55)
SKU: 09116-10150 Weight: 0.200000 Brand: Price: $ 15.95 |
Bolt (10x55) | 4 | $ 15.95 | w/Transom (L) | |
| 18 | 09140-10031 Nut (10mm)
SKU: 09140-10031 Weight: 0.060000 Brand: Price: $ 2.04 |
Nut (10mm) | 5 | $ 2.04 | Type: X | |
| 19 | 09160-10141 Washer (10.5x19x2)
SKU: 09160-10141 Weight: 0.060000 Brand: Price: $ 3.41 |
Washer (10.5x19x2) | 5 | $ 3.41 | Type: X | |
| 20-1 | 990C0-00750-13P Aluminum Propeller 3x14x13
SKU: 990C0-00750-13P Weight: 15.000000 Brand: Price: $ 269.68 |
Aluminum Propeller 3x14x13 | 1 | $ 269.68 | ||
| 20-2 | 990C0-00750-15P Aluminum Propeller 3x13-7/8x15
SKU: 990C0-00750-15P Weight: 15.000000 Brand: Price: $ 269.68 |
Aluminum Propeller 3x13-7/8x15 | 1 | $ 269.68 | ||
| 20-3 | 990C0-00750-17P Aluminum Propeller 3x13-3/4x17
SKU: 990C0-00750-17P Weight: 15.000000 Brand: Price: $ 269.68 |
Aluminum Propeller 3x13-3/4x17 | 1 | $ 269.68 | ||
| 20-4 | 990C0-00750-19P Aluminum Propeller 3x13-3/4x19
SKU: 990C0-00750-19P Weight: 15.000000 Brand: Price: $ 269.68 |
Aluminum Propeller 3x13-3/4x19 | 1 | $ 269.68 | ||
| 20-5 | 990C0-00750-21P Aluminum Propeller 3x13-3/4x21
SKU: 990C0-00750-21P Weight: 15.000000 Brand: Price: $ 269.68 |
Aluminum Propeller 3x13-3/4x21 | 1 | $ 269.68 | ||
| 20-6 | 58100-87LF0-019 Aluminum Propeller 3x13-3/4x23
SKU: 58100-87LF0-019 Weight: 15.000000 Brand: Price: $ 259.72 |
Aluminum Propeller 3x13-3/4x23 | 1 | $ 259.72 | ||
| 20-7 | 990C0-00610-16P S/S Propeller 3x14x16
SKU: 990C0-00610-16P Weight: 25.000000 Brand: Price: $ 579.95 |
S/S Propeller 3x14x16 | 1 | $ 579.95 | ||
| 20-8 | 990C0-00610-18P S/S Propeller 3x14x18
SKU: 990C0-00610-18P Weight: 25.000000 Brand: Price: $ 579.95 |
S/S Propeller 3x14x18 | 1 | $ 579.95 | ||
| 20-9 | 990C0-00610-20P S/S Propeller 3x14x20
SKU: 990C0-00610-20P Weight: 25.000000 Brand: Price: $ 579.95 |
S/S Propeller 3x14x20 | 1 | $ 579.95 | ||
| 20-10 | 990C0-00610-22P S/S Propeller 3x14x22
SKU: 990C0-00610-22P Weight: 25.000000 Brand: Price: $ 579.95 |
S/S Propeller 3x14x22 | 1 | $ 579.95 | ||
| 21 | 58120-90J00 Propeller Bushing
SKU: 58120-90J00 Weight: 1.160000 Brand: Price: $ 52.71 |
Propeller Bushing | 1 | $ 52.71 | ||
| 22 | 57632-87L01 Propeller Stopper Bushing
SKU: 57632-87L01 Weight: 0.500000 Brand: Price: $ 112.89 |
Propeller Stopper Bushing | 1 | $ 112.89 | ||
| 23 | 57633-90J02 Propeller Nut Spacer
SKU: 57633-90J02 Weight: 0.320000 Brand: Price: $ 60.46 |
Propeller Nut Spacer | 1 | $ 60.46 | ||
| 24 | 09141-18005 Nut (18mm)
SKU: 09141-18005 Weight: 0.140000 Brand: Price: $ 10.32 |
Nut (18mm) | 1 | $ 10.32 | ||
| 25 | 09204-03003 Prop Nut Cotter Pin
SKU: 09204-03003 Weight: 0.060000 Brand: Price: $ 2.44 |
Prop Nut Cotter Pin | 1 | $ 2.44 | ||
| 26 | 09160-18028 Washer (18.5x31x1.0)
SKU: 09160-18028 Weight: 0.060000 Brand: Price: $ 3.69 |
Washer (18.5x31x1.0) | 1 | $ 3.69 | ||
| 27 | 57630-90J10 Propeller Hardware Kit DF70A/DF80A/DF90A/DF90 to DF140
SKU: 57630-90J10 Weight: 0.000000 Brand: Price: $ 43.28 |
Propeller Hardware Kit DF70A/DF80A/DF90A/DF90 to DF140 | 1 | $ 43.28 | Optional | |
| 28 | 25700-87L00 Gear Case Seal Kit DF70A / DF80A / 90A
SKU: 25700-87L00 Weight: 0.200000 Brand: Price: $ 37.38 |
Gear Case Seal Kit DF70A / DF80A / 90A | 1 | $ 37.38 | Opt: Not Shown |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
