Suzuki DF 70A Parts Listings - 2012
S/N 07003F-210001 to 07003F-21XXXX

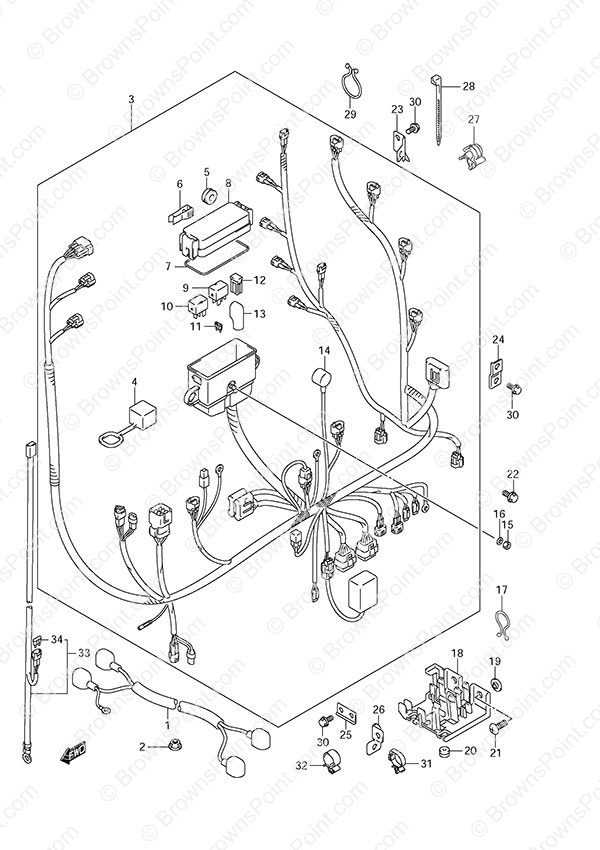

Fig. 27 - Harness
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 33810-90J30 CABLE ASSY,STAR
SKU: 33810-90J30 Weight: 0.000000 Brand: Price: $ 173.78 |
CABLE ASSY,STAR | 1 | $ 173.78 | ||
| 2 | 08316-10087 Nut
SKU: 08316-10087 Weight: 0.060000 Brand: Price: $ 2.27 |
Nut | 1 | $ 2.27 | ||
| 3 | 36610-87L30 Wiring Harness Assembly
SKU: 36610-87L30 Weight: 5.000000 Brand: Price: $ 849.40 |
Wiring Harness Assembly | 1 | $ 849.40 | ||
| 4 | 33634-96J00 Service Connector Cap
SKU: 33634-96J00 Weight: 0.125000 Brand: Price: $ 7.28 |
Service Connector Cap | 1 | $ 7.28 | ||
| 5 | 09320-08510 Cushion (8.5x20x8)
SKU: 09320-08510 Weight: 0.060000 Brand: Price: $ 1.71 |
Cushion (8.5x20x8) | 2 | $ 1.71 | ||
| 6 | 36737-96J00 Fuse Puller (NLA)
SKU: 36737-96J00 Weight: 0.060000 Brand: Price: $ 4.01 |
Fuse Puller (NLA) | 1 | $ 4.01 | ||
| 7 | 36721-96J00 Upper Cover O-Ring
SKU: 36721-96J00 Weight: 0.060000 Brand: Price: $ 11.89 |
Upper Cover O-Ring | 1 | $ 11.89 | ||
| 8 | 36738-87L00 Replaced by 36738-98L00
SKU: 36738-87L00 Weight: 0.200000 Brand: Price: $ 13.59 |
Replaced by 36738-98L00 | 1 | $ 13.59 | ||
| 9 | 38860-76F01 Relay
SKU: 38860-76F01 Weight: 0.060000 Brand: Price: $ 36.31 |
Relay | 1 | $ 36.31 | Engine Control Unit | |
| 10 | 38860-76F01 Relay
SKU: 38860-76F01 Weight: 0.060000 Brand: Price: $ 36.31 |
Relay | 1 | $ 36.31 | Starter Motor | |
| 11-1 | 09481-10501 10 Amp Fuse
SKU: 09481-10501 Weight: 0.062500 Brand: Price: $ 2.06 |
10 Amp Fuse | 3 | $ 2.06 | ||
| 11-2 | 09481-30501 30 Amp Fuse
SKU: 09481-30501 Weight: 0.060000 Brand: Price: $ 2.33 |
30 Amp Fuse | 3 | $ 2.33 | ||
| 12 | 09481-40401 40 Amp Fuse
SKU: 09481-40401 Weight: 0.060000 Brand: Price: $ 6.92 |
40 Amp Fuse | 2 | $ 6.92 | ||
| 13 | 36612-96J01 CAP,TERMINAL
SKU: 36612-96J01 Weight: 0.000000 Brand: Price: $ 4.94 |
CAP,TERMINAL | 1 | $ 4.94 | ||
| 14 | 36618-43410 Oil Pressure Switch Cap (NLA)
SKU: 36618-43410 Weight: 0.250000 Brand: Price: $ 2.60 |
Oil Pressure Switch Cap (NLA) | 1 | $ 2.60 | ||
| 15 | 08310-00067 Nut
SKU: 08310-00067 Weight: 0.060000 Brand: Price: $ 1.85 |
Nut | 1 | $ 1.85 | ||
| 16 | 08321-01067 Lock Washer
SKU: 08321-01067 Weight: 0.060000 Brand: Price: $ 1.85 |
Lock Washer | 1 | $ 1.85 | ||
| 17 | 09408-00021 Clamp (NLA)
SKU: 09408-00021 Weight: 0.100000 Brand: Price: $ 0.85 |
Clamp (NLA) | 1 | $ 0.85 | ||
| 18 | 36616-87L00 Cable Holder
SKU: 36616-87L00 Weight: 0.200000 Brand: Price: $ 10.05 |
Cable Holder | 1 | $ 10.05 | ||
| 19 | 09169-06053 Washer (6.3x16x1)
SKU: 09169-06053 Weight: 0.100000 Brand: Price: $ 1.11 |
Washer (6.3x16x1) | 2 | $ 1.11 | ||
| 20 | 09320-04013 Bushing
SKU: 09320-04013 Weight: 0.060000 Brand: Price: $ 1.60 |
Bushing | 2 | $ 1.60 | ||
| 21 | 02142-06167 6 X 16 CROSS SC
SKU: 02142-06167 Weight: 0.060000 Brand: Price: $ 1.38 |
6 X 16 CROSS SC | 2 | $ 1.38 | ||
| 22 | 01550-06127 BOLT
SKU: 01550-06127 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 1 | $ 2.33 | ||
| 23 | 36617-87L00 Harness Clamp (NLA)
SKU: 36617-87L00 Weight: 0.200000 Brand: Price: $ 4.56 |
Harness Clamp (NLA) | 1 | $ 4.56 | ||
| 24 | 36617-93J00 Harness Bracket
SKU: 36617-93J00 Weight: 0.125000 Brand: Price: $ 2.05 |
Harness Bracket | 1 | $ 2.05 | ||
| 25 | 36617-87L10 Harness Clamp (NLA)
SKU: 36617-87L10 Weight: 0.200000 Brand: Price: $ 3.80 |
Harness Clamp (NLA) | 1 | $ 3.80 | ||
| 26 | 36617-87L20 Harness Clamp (NLA)
SKU: 36617-87L20 Weight: 0.200000 Brand: Price: $ 3.80 |
Harness Clamp (NLA) | 1 | $ 3.80 | ||
| 27 | 09403-07308 Clamp
SKU: 09403-07308 Weight: 0.060000 Brand: Price: $ 1.79 |
Clamp | 1 | $ 1.79 | ||
| 28 | 09407-14407 Clamp (L:140)
SKU: 09407-14407 Weight: 0.060000 Brand: Price: $ 3.09 |
Clamp (L:140) | 1 | $ 3.09 | ||
| 29 | 09408-00024 Clamp
SKU: 09408-00024 Weight: 0.060000 Brand: Price: $ 1.52 |
Clamp | 1 | $ 1.52 | ||
| 30 | 01550-06127 BOLT
SKU: 01550-06127 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 2 | $ 2.33 | ||
| 31 | 09403-11321 Clamp
SKU: 09403-11321 Weight: 0.060000 Brand: Price: $ 3.40 |
Clamp | 1 | $ 3.40 | ||
| 32 | 09403-12409 Clamp
SKU: 09403-12409 Weight: 0.200000 Brand: Price: $ 2.37 |
Clamp | 1 | $ 2.37 | ||
| 33 | 36625-93J10 ECM Battery Lead
SKU: 36625-93J10 Weight: 0.750000 Brand: Price: $ 44.63 |
ECM Battery Lead | 1 | $ 44.63 | Optional L:6500 | |
| 34 | 09481-15501 15 Amp Fuse
SKU: 09481-15501 Weight: 0.060000 Brand: Price: $ 2.06 |
15 Amp Fuse | 1 | $ 2.06 | Optional |
