Suzuki DF 2.5 Parts Listings - 2012
S/N 00252F-210001 to 00252F-21XXXX

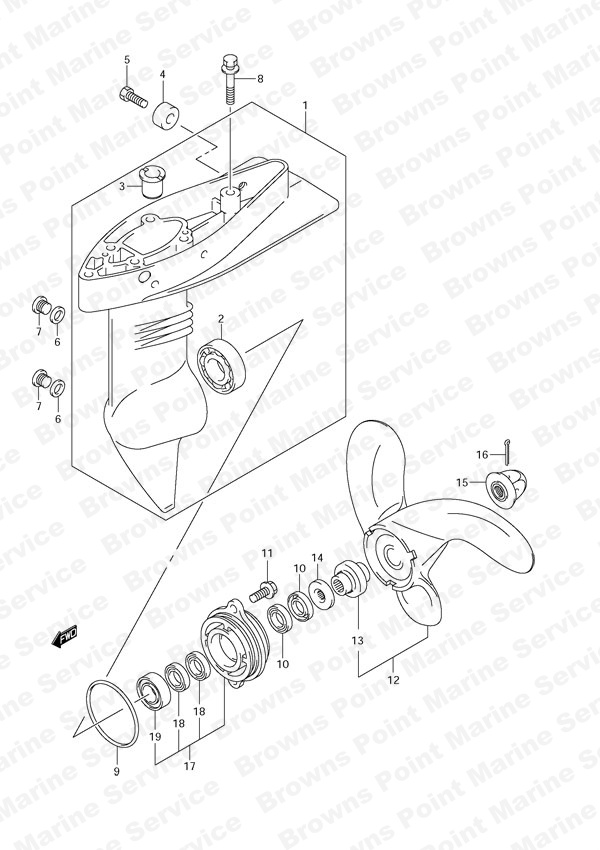

Fig. 17 - Gear Case
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 55110-97J40-0EP Gear Case Housing
SKU: 55110-97J40-0EP Weight: 4.000000 Brand: Price: $ 244.44 |
Gear Case Housing | 1 | $ 244.44 | ||
| 2 | 09262-17019 Bearing (17x35x8)
SKU: 09262-17019 Weight: 0.125000 Brand: Price: $ 19.69 |
Bearing (17x35x8) | 1 | $ 19.69 | ||
| 3 | 59311-97J20 Pinion Bushing
SKU: 59311-97J20 Weight: 0.250000 Brand: Price: $ 28.55 |
Pinion Bushing | 2 | $ 28.55 | ||
| 4 | 55321-87J01 Aluminum Anode
SKU: 55321-87J01 Weight: 0.125000 Brand: Price: $ 7.36 |
Aluminum Anode | 1 | $ 7.36 | ||
| 5 | 09103-06281 Bolt (6x14)
SKU: 09103-06281 Weight: 0.060000 Brand: Price: $ 2.99 |
Bolt (6x14) | 1 | $ 2.99 | ||
| 6 | 59178-97J00 Drain Plug Gasket
SKU: 59178-97J00 Weight: 0.060000 Brand: Price: $ 2.03 |
Drain Plug Gasket | 2 | $ 2.03 | ||
| 7 | 09248-08001 Drain Plug
SKU: 09248-08001 Weight: 0.060000 Brand: Price: $ 2.46 |
Drain Plug | 2 | $ 2.46 | ||
| 8 | 09116-06099 Bolt (6x35)
SKU: 09116-06099 Weight: 0.060000 Brand: Price: $ 2.36 |
Bolt (6x35) | 2 | $ 2.36 | ||
| 9 | 59291-97J00 O-Ring
SKU: 59291-97J00 Weight: 0.060000 Brand: Price: $ 8.34 |
O-Ring | 1 | $ 8.34 | ||
| 10 | 09282-10008 Oil Seal (10x21x4.5)
SKU: 09282-10008 Weight: 0.060000 Brand: Price: $ 3.57 |
Oil Seal (10x21x4.5) | 2 | $ 3.57 | ||
| 11 | 09116-06094 Bolt (6x15)
SKU: 09116-06094 Weight: 0.060000 Brand: Price: $ 2.28 |
Bolt (6x15) | 2 | $ 2.28 | ||
| 12 | 58110-97JA0-019 Propeller (3x7-1/2x6)
SKU: 58110-97JA0-019 Weight: 1.000000 Brand: Price: $ 124.39 |
Propeller (3x7-1/2x6) | 1 | $ 124.39 | ||
| 13 | 58120-97JA0 Proppeller Bushing
SKU: 58120-97JA0 Weight: 0.100000 Brand: Price: $ 86.66 |
Proppeller Bushing | 1 | $ 86.66 | ||
| 14 | 57635-91JL0 Propeller Stopper
SKU: 57635-91JL0 Weight: 0.140000 Brand: Price: $ 44.01 |
Propeller Stopper | 1 | $ 44.01 | ||
| 15 | 58130-91JL0 Propeller Nut
SKU: 58130-91JL0 Weight: 0.125000 Brand: Price: $ 37.86 |
Propeller Nut | 1 | $ 37.86 | ||
| 16 | 09204-03003 Prop Nut Cotter Pin
SKU: 09204-03003 Weight: 0.060000 Brand: Price: $ 2.44 |
Prop Nut Cotter Pin | 1 | $ 2.44 | ||
| 17 | 56120-97J40-0EP Propeller Shaft Housing (NLA)
SKU: 56120-97J40-0EP Weight: 0.100000 Brand: Price: $ 123.24 |
Propeller Shaft Housing (NLA) | 1 | $ 123.24 | ||
| 18 | 09282-12008 Oil Seal (12x24x4.5)
SKU: 09282-12008 Weight: 0.060000 Brand: Price: $ 6.27 |
Oil Seal (12x24x4.5) | 2 | $ 6.27 | ||
| 19 | 09262-12001 Bearing (12x28x8)
SKU: 09262-12001 Weight: 0.250000 Brand: Price: $ 18.80 |
Bearing (12x28x8) | 1 | $ 18.80 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
