Suzuki DF 60A Parts Listings - 2015
S/N06002F-510001 to 06002F-51XXXX, 06003F-510001 to 06003F-51XXXX

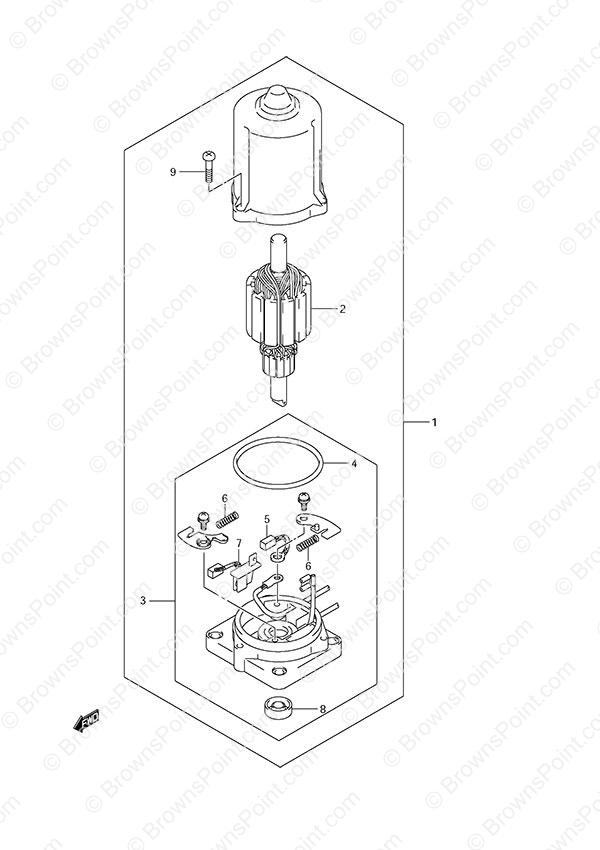

Fig. 44 - PTT Motor
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 38100-88L12 PTT Motor Assembly
SKU: 38100-88L12 Weight: 5.000000 Brand: Price: $ 580.61 |
PTT Motor Assembly | 1 | $ 580.61 | ||
| 2 | 31311-87J10 Armature (NLA)
SKU: 31311-87J10 Weight: 5.000000 Brand: Price: $ 334.64 |
Armature (NLA) | 1 | $ 334.64 | ||
| 3 | 31173-88L00 Brush Holder Assembly
SKU: 31173-88L00 Weight: 2.000000 Brand: Price: $ 447.64 |
Brush Holder Assembly | 1 | $ 447.64 | ||
| 4 | 31123-97E10 O-Ring
SKU: 31123-97E10 Weight: 0.060000 Brand: Price: $ 14.91 |
O-Ring | 1 | $ 14.91 | ||
| 5 | 31133-94910 Brush
SKU: 31133-94910 Weight: 0.060000 Brand: Price: $ 12.57 |
Brush | 1 | $ 12.57 | ||
| 6 | 31135-94900 Spring
SKU: 31135-94900 Weight: 0.060000 Brand: Price: $ 5.02 |
Spring | 2 | $ 5.02 | ||
| 7 | 31136-87J11 Breaker
SKU: 31136-87J11 Weight: 0.060000 Brand: Price: $ 63.44 |
Breaker | 1 | $ 63.44 | ||
| 8 | 33799-97E00 Oil Seal
SKU: 33799-97E00 Weight: 0.060000 Brand: Price: $ 23.27 |
Oil Seal | 1 | $ 23.27 | ||
| 9 | 31111-87J10 Screw (NLA)
SKU: 31111-87J10 Weight: 0.100000 Brand: Price: $ 4.94 |
Screw (NLA) | 3 | $ 4.94 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
