Suzuki DF 60A Parts Listings - 2015
S/N06002F-510001 to 06002F-51XXXX, 06003F-510001 to 06003F-51XXXX

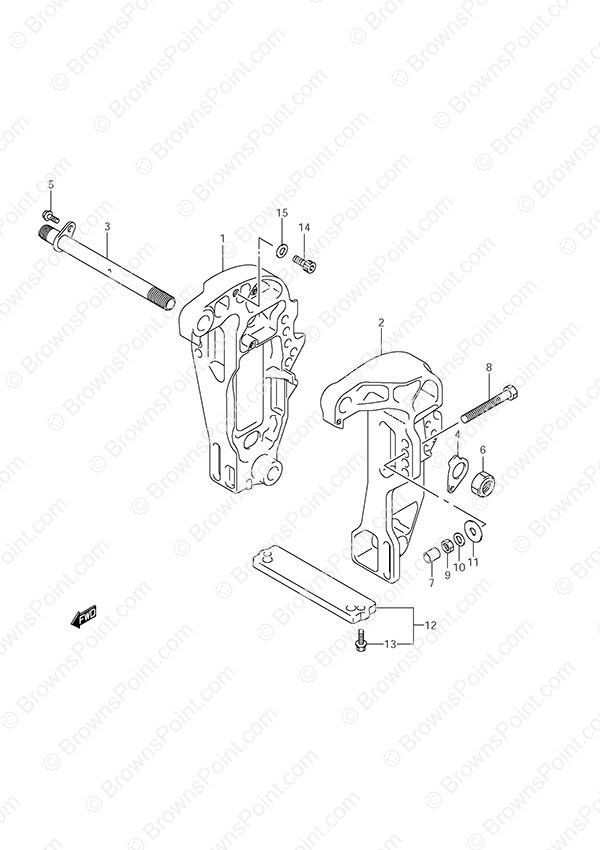

Fig. 37 - Clamp Bracket
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1-1 | 41111-88L11-0EP Starboard Clamp Bracket
SKU: 41111-88L11-0EP Weight: 10.000000 Brand: Price: $ 440.82 |
Starboard Clamp Bracket | 1 | $ 440.82 | ||
| 1-2 | 41111-88L02-Y5S Starboard Clamp Bracket (NLA)
SKU: 41111-88L02-Y5S Weight: 10.000000 Brand: Price: $ 348.50 |
Starboard Clamp Bracket (NLA) | 1 | $ 348.50 | White | |
| 2-1 | 41121-88L01-0EP Port Clamp Bracket
SKU: 41121-88L01-0EP Weight: 10.000000 Brand: Price: $ 402.61 |
Port Clamp Bracket | 1 | $ 402.61 | ||
| 2-2 | 41121-88L01-Y5S Port Clamp Bracket (NLA)
SKU: 41121-88L01-Y5S Weight: 10.000000 Brand: Price: $ 348.50 |
Port Clamp Bracket (NLA) | 1 | $ 348.50 | White | |
| 3 | 41130-88L10 Clamp Bracket Shaft
SKU: 41130-88L10 Weight: 2.000000 Brand: Price: $ 203.85 |
Clamp Bracket Shaft | 1 | $ 203.85 | ||
| 4 | 41135-93J00 Clamp Bracket Shaft Washer
SKU: 41135-93J00 Weight: 0.060000 Brand: Price: $ 6.66 |
Clamp Bracket Shaft Washer | 1 | $ 6.66 | ||
| 5 | 09116-08137 Bolt (8x22)
SKU: 09116-08137 Weight: 0.060000 Brand: Price: $ 7.44 |
Bolt (8x22) | 1 | $ 7.44 | ||
| 6 | 09159-22006 Nut
SKU: 09159-22006 Weight: 0.250000 Brand: Price: $ 25.75 |
Nut | 1 | $ 25.75 | ||
| 7 | 41153-94500 Transom Bolt Cap
SKU: 41153-94500 Weight: 0.060000 Brand: Price: $ 2.96 |
Transom Bolt Cap | 4 | $ 2.96 | ||
| 8-1 | 09100-12093 Transom Bolt (12x100)
SKU: 09100-12093 Weight: 0.220000 Brand: Price: $ 13.75 |
Transom Bolt (12x100) | 4 | $ 13.75 | ||
| 8-2 | 09100-12091 Transom Bolt (12x115)
SKU: 09100-12091 Weight: 0.250000 Brand: Price: $ 14.20 |
Transom Bolt (12x115) | 1 | $ 14.20 | Optional | |
| 9 | 09159-12014 Nut (12x17)
SKU: 09159-12014 Weight: 0.060000 Brand: Price: $ 5.04 |
Nut (12x17) | 4 | $ 5.04 | ||
| 10 | 09160-12110 Washer (12.5x22x3.0)
SKU: 09160-12110 Weight: 0.060000 Brand: Price: $ 3.79 |
Washer (12.5x22x3.0) | 4 | $ 3.79 | ||
| 11 | 09160-12044 Washer (12.5x35x3.2)
SKU: 09160-12044 Weight: 0.060000 Brand: Price: $ 3.49 |
Washer (12.5x35x3.2) | 4 | $ 3.49 | ||
| 12 | 55320-94900 Protection Anode Set
SKU: 55320-94900 Weight: 0.500000 Brand: Price: $ 43.30 |
Protection Anode Set | 1 | $ 43.30 | ||
| 13 | 09116-06121 Bolt (6x25)
SKU: 09116-06121 Weight: 0.060000 Brand: Price: $ 2.72 |
Bolt (6x25) | 2 | $ 2.72 | ||
| 14 | 09106-10065 Bolt (10x20)
SKU: 09106-10065 Weight: 0.050000 Brand: Price: $ 6.19 |
Bolt (10x20) | 2 | $ 6.19 | ||
| 16 | 09160-10082 Washer (10.5x19x2.0)
SKU: 09160-10082 Weight: 0.060000 Brand: Price: $ 1.63 |
Washer (10.5x19x2.0) | 2 | $ 1.63 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
