Suzuki DF 60A Parts Listings - 2015
S/N06002F-510001 to 06002F-51XXXX, 06003F-510001 to 06003F-51XXXX

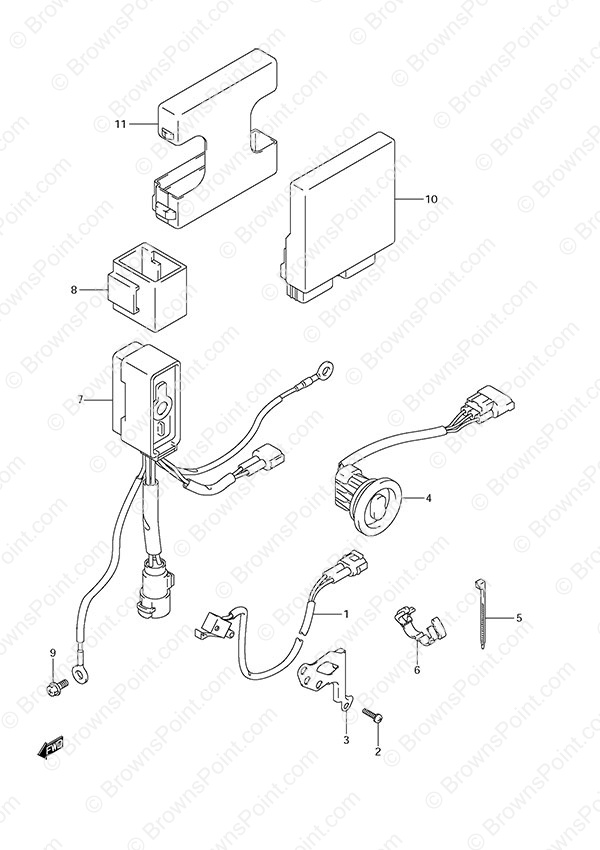

Fig. 34 - PTT Switch/Engine Control Unit
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 37721-93J00 Neutral Switch Assembly
SKU: 37721-93J00 Weight: 0.250000 Brand: Price: $ 41.14 |
Neutral Switch Assembly | 1 | $ 41.14 | ||
| 2 | 09137-04004 Screw (4x16)
SKU: 09137-04004 Weight: 0.060000 Brand: Price: $ 2.36 |
Screw (4x16) | 2 | $ 2.36 | ||
| 3 | 37725-88L00 Neutral Switch Bracket
SKU: 37725-88L00 Weight: 0.250000 Brand: Price: $ 8.95 |
Neutral Switch Bracket | 1 | $ 8.95 | ||
| 4 | 37850-99E05 PTT Switch Assembly
SKU: 37850-99E05 Weight: 0.250000 Brand: Price: $ 83.20 |
PTT Switch Assembly | 1 | $ 83.20 | ||
| 5 | 09407-10404 Clamp (L:100)
SKU: 09407-10404 Weight: 0.060000 Brand: Price: $ 2.52 |
Clamp (L:100) | 1 | $ 2.52 | ||
| 6 | 09408-00184 Clamp
SKU: 09408-00184 Weight: 0.125000 Brand: Price: $ 2.95 |
Clamp | 1 | $ 2.95 | ||
| 7 | 38410-93J12 PTT Relay Assembly
SKU: 38410-93J12 Weight: 0.460000 Brand: Price: $ 136.14 |
PTT Relay Assembly | 1 | $ 136.14 | ||
| 8 | 38415-93J00 PTT Relay Holder
SKU: 38415-93J00 Weight: 0.060000 Brand: Price: $ 6.68 |
PTT Relay Holder | 1 | $ 6.68 | ||
| 9 | 01550-06127 BOLT
SKU: 01550-06127 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 1 | $ 2.33 | ||
| 10 | 33920-88L70 Engine Control Unit
SKU: 33920-88L70 Weight: 2.000000 Brand: Price: $ 2,145.77 |
Engine Control Unit | 1 | $ 2,145.77 | ||
| 11 | 33925-88L00 ECU Cushion
SKU: 33925-88L00 Weight: 0.250000 Brand: Price: $ 12.55 |
ECU Cushion | 1 | $ 12.55 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
