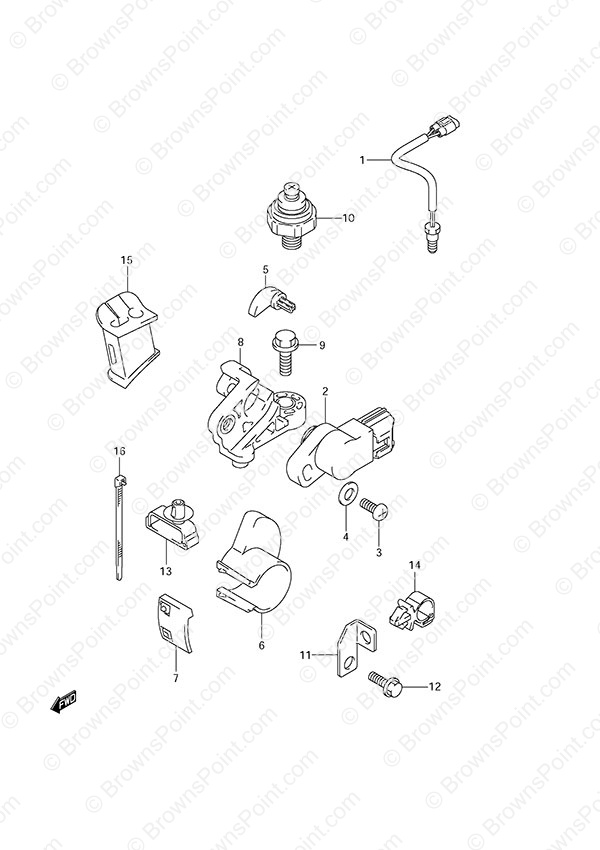

Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
---|---|---|---|---|---|---|
1 | 34830-87J20 Temp Sensor Assy SKU: 34830-87J20 Weight: 0.060000 Brand: Price: $ 71.57 |
Temp Sensor Assy | 1 | $ 71.57 | Cylinder | |
2 | 34840-98J11 Trim Sensor Assembly SKU: 34840-98J11 Weight: 0.500000 Brand: Price: $ 132.01 |
Trim Sensor Assembly | 1 | $ 132.01 | ||
3 | 09125-05046 Screw (5x12) SKU: 09125-05046 Weight: 0.060000 Brand: Price: $ 1.82 |
Screw (5x12) | 1 | $ 1.82 | ||
4 | 34846-87L00 Trim Sensor Washer SKU: 34846-87L00 Weight: 0.060000 Brand: Price: $ 1.26 |
Trim Sensor Washer | 1 | $ 1.26 | ||
5 | 34841-87L10 Trim Sensor Lever SKU: 34841-87L10 Weight: 0.200000 Brand: Price: $ 3.83 |
Trim Sensor Lever | 1 | $ 3.83 | ||
6 | 34842-88L10 Trim Sensor Upper Cam SKU: 34842-88L10 Weight: 0.200000 Brand: Price: $ 5.69 |
Trim Sensor Upper Cam | 1 | $ 5.69 | ||
7 | 99103-11252 Trim Sensor Lower Cam SKU: 99103-11252 Weight: 0.125000 Brand: Price: $ 3.89 |
Trim Sensor Lower Cam | 1 | $ 3.89 | ||
8 | 34845-88L10 Trim Sender Bracket SKU: 34845-88L10 Weight: 0.250000 Brand: Price: $ 13.03 |
Trim Sender Bracket | 1 | $ 13.03 | ||
9 | 01550-06207 BOLT SKU: 01550-06207 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 1 | $ 2.33 | ||
10 | 37820-99E02 Oil Pressure Switch SKU: 37820-99E02 Weight: 0.125000 Brand: Price: $ 24.10 |
Oil Pressure Switch | 1 | $ 24.10 | ||
11 | 36617-88L00 Harness Bracket (NLA) SKU: 36617-88L00 Weight: 0.250000 Brand: Price: $ 3.47 |
Harness Bracket (NLA) | 1 | $ 3.47 | ||
12 | 29103-93J00 Bolt (6x12) SKU: 29103-93J00 Weight: 0.060000 Brand: Price: $ 2.05 |
Bolt (6x12) | 1 | $ 2.05 | ||
13 | 09403-07340 Clamp SKU: 09403-07340 Weight: 0.100000 Brand: Price: $ 3.90 |
Clamp | 1 | $ 3.90 | ||
14 | 09403-11321 Clamp SKU: 09403-11321 Weight: 0.060000 Brand: Price: $ 3.40 |
Clamp | 1 | $ 3.40 | ||
15 | 36656-88L00 PTT Cable Grommet SKU: 36656-88L00 Weight: 0.250000 Brand: Price: $ 5.75 |
PTT Cable Grommet | 1 | $ 5.75 | ||
16 | 09407-14407 Clamp (L:140) SKU: 09407-14407 Weight: 0.060000 Brand: Price: $ 3.09 |
Clamp (L:140) | 2 | $ 3.09 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
All contents of this website apply to the continental U.S. market only.
