Suzuki DF 60A Parts Listings - 2015
S/N06002F-510001 to 06002F-51XXXX, 06003F-510001 to 06003F-51XXXX

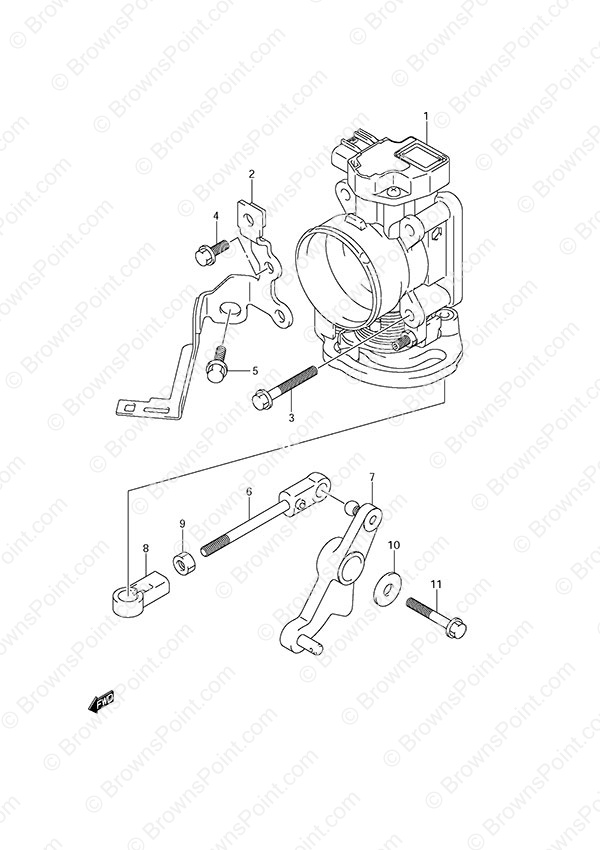

Fig. 17 - Throttle Body
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 13300-88L01 Throttle Body Assembly
SKU: 13300-88L01 Weight: 5.000000 Brand: Price: $ 573.96 |
Throttle Body Assembly | 1 | $ 573.96 | ||
| 2 | 13315-88L00 Throttle Body Bracket (NLA)
SKU: 13315-88L00 Weight: 0.500000 Brand: Price: $ 16.25 |
Throttle Body Bracket (NLA) | 1 | $ 16.25 | ||
| 3 | 01550-06457 BOLT
SKU: 01550-06457 Weight: 0.060000 Brand: Price: $ 2.88 |
BOLT | 4 | $ 2.88 | ||
| 4 | 01550-06167 BOLT
SKU: 01550-06167 Weight: 0.060000 Brand: Price: $ 2.45 |
BOLT | 2 | $ 2.45 | ||
| 5 | 01550-08207 BOLT
SKU: 01550-08207 Weight: 0.060000 Brand: Price: $ 2.88 |
BOLT | 1 | $ 2.88 | ||
| 6 | 13510-88L00 Throttle Rod
SKU: 13510-88L00 Weight: 0.250000 Brand: Price: $ 21.16 |
Throttle Rod | 1 | $ 21.16 | ||
| 7 | 19120-88L01 Throttle Lever
SKU: 19120-88L01 Weight: 0.125000 Brand: Price: $ 28.31 |
Throttle Lever | 1 | $ 28.31 | ||
| 8 | 19131-95502 Connector
SKU: 19131-95502 Weight: 0.060000 Brand: Price: $ 4.68 |
Connector | 1 | $ 4.68 | ||
| 9 | 09140-05005 Nut
SKU: 09140-05005 Weight: 0.060000 Brand: Price: $ 2.74 |
Nut | 1 | $ 2.74 | ||
| 10 | 09160-06047 Washer (6.2x20x2)
SKU: 09160-06047 Weight: 0.060000 Brand: Price: $ 2.02 |
Washer (6.2x20x2) | 1 | $ 2.02 | ||
| 11 | 01550-06407 BOLT
SKU: 01550-06407 Weight: 0.060000 Brand: Price: $ 2.88 |
BOLT | 1 | $ 2.88 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
