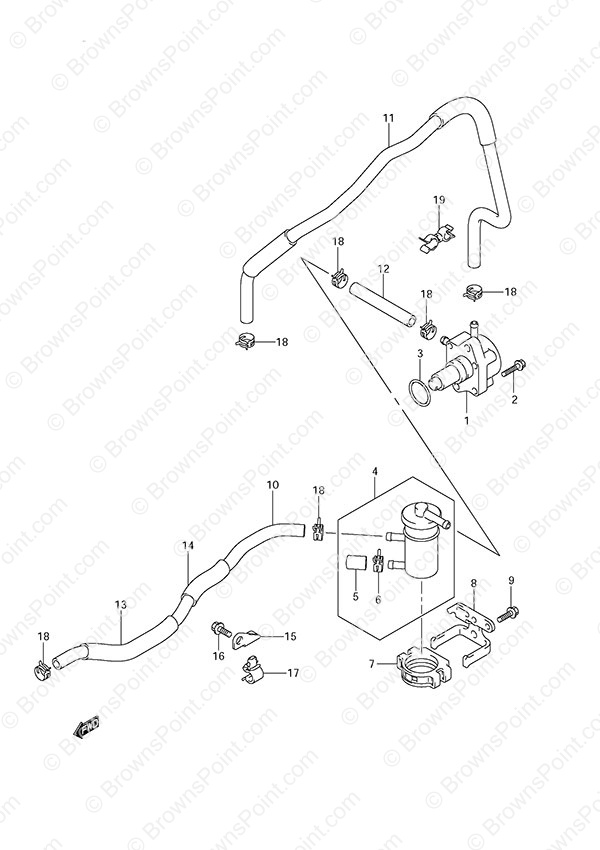

Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
---|---|---|---|---|---|---|
1 | 15100-90J11 Fuel Pump Assembly SKU: 15100-90J11 Weight: 0.500000 Brand: Price: $ 165.75 |
Fuel Pump Assembly | 1 | $ 165.75 | ||
2 | 01550-06257 BOLT SKU: 01550-06257 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 2 | $ 2.33 | ||
3 | 09280-26005 O-Ring SKU: 09280-26005 Weight: 0.060000 Brand: Price: $ 2.33 |
O-Ring | 1 | $ 2.33 | ||
4 | 15410-88L00 Fuel Filter SKU: 15410-88L00 Weight: 0.100000 Brand: Price: $ 16.22 |
Fuel Filter | 1 | $ 16.22 | ||
5 | 15419-87J00 Fuel Filter Cap SKU: 15419-87J00 Weight: 0.060000 Brand: Price: $ 7.40 |
Fuel Filter Cap | 1 | $ 7.40 | ||
6 | 09401-11423 Clip SKU: 09401-11423 Weight: 0.060000 Brand: Price: $ 2.09 |
Clip | 1 | $ 2.09 | ||
7 | 15422-96J01 Fuel Filter Clamp SKU: 15422-96J01 Weight: 0.060000 Brand: Price: $ 6.41 |
Fuel Filter Clamp | 1 | $ 6.41 | ||
8 | 15421-88L00 Fuel Filter Bracket SKU: 15421-88L00 Weight: 0.250000 Brand: Price: $ 11.52 |
Fuel Filter Bracket | 1 | $ 11.52 | ||
9 | 01550-06167 BOLT SKU: 01550-06167 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 2 | $ 2.33 | ||
10 | 15191-88L10 Fuel Hose SKU: 15191-88L10 Weight: 0.250000 Brand: Price: $ 73.42 |
Fuel Hose | 1 | $ 73.42 | Connector to Filter | |
11 | 15192-88L11 Fuel Hose SKU: 15192-88L11 Weight: 0.250000 Brand: Price: $ 56.67 |
Fuel Hose | 1 | $ 56.67 | Pump to Separator | |
12 | 09343-70503-080 Fuel Hose (7x12x80) SKU: 09343-70503-080 Weight: 0.250000 Brand: Price: $ 8.52 |
Fuel Hose (7x12x80) | 1 | $ 8.52 | ||
13 | 18498-99E11 Hose Protector (L:610) SKU: 18498-99E11 Weight: 0.125000 Brand: Price: $ 11.51 |
Hose Protector (L:610) | 1 | $ 11.51 | L:610->230 | |
14 | 18498-96J21 Hose Protector (13.5x16.5x370) SKU: 18498-96J21 Weight: 0.250000 Brand: Price: $ 6.62 |
Hose Protector (13.5x16.5x370) | 1 | $ 6.62 | L:370->95 | |
15 | 15197-88L00 Fuel Hose Clamp Bracket SKU: 15197-88L00 Weight: 0.250000 Brand: Price: $ 4.61 |
Fuel Hose Clamp Bracket | 1 | $ 4.61 | ||
16 | 01550-06127 BOLT SKU: 01550-06127 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 1 | $ 2.33 | ||
17 | 09403-11320 Clamp SKU: 09403-11320 Weight: 0.060000 Brand: Price: $ 2.52 |
Clamp | 2 | $ 2.52 | ||
18 | 09401-11423 Clip SKU: 09401-11423 Weight: 0.060000 Brand: Price: $ 2.09 |
Clip | 5 | $ 2.09 | ||
19 | 09408-00054 Clamp (NLA) SKU: 09408-00054 Weight: 0.060000 Brand: Price: $ 2.26 |
Clamp (NLA) | 1 | $ 2.26 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
All contents of this website apply to the continental U.S. market only.
