Suzuki DF 40A Parts Listings - 2012
S/N 04003F-210001 to 04003F-21XXXX

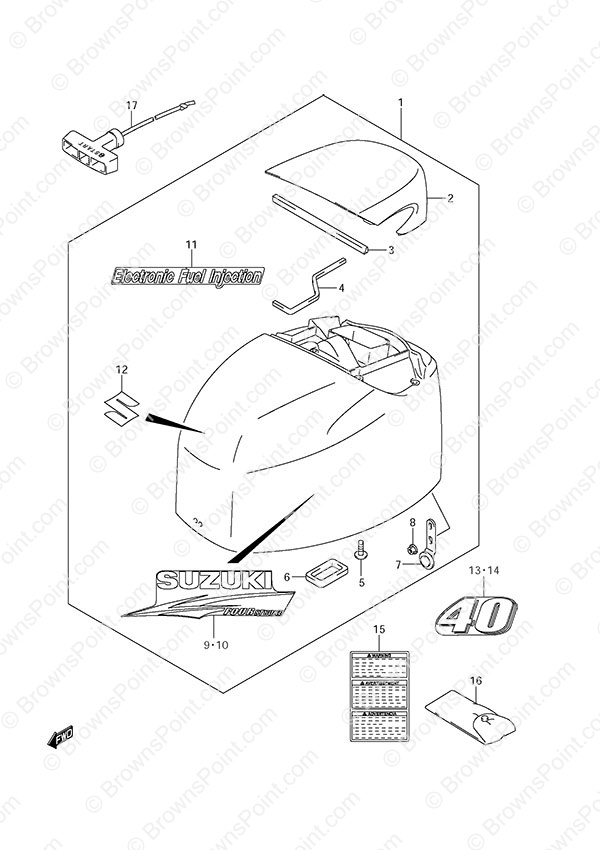

Fig. 53 - Engine Cover
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 61400-88805-0EP Engine Cover Set
SKU: 61400-88805-0EP Weight: 22.000000 Brand: Price: $ 875.53 |
Engine Cover Set | 1 | $ 875.53 | ||
| 2 | 61431-88L10-0EP Tilt Up Handle
SKU: 61431-88L10-0EP Weight: 5.000000 Brand: Price: $ 108.34 |
Tilt Up Handle | 1 | $ 108.34 | ||
| 3 | 61438-88L01 Tilt Up Handle Seal No 1
SKU: 61438-88L01 Weight: 0.250000 Brand: Price: $ 6.86 |
Tilt Up Handle Seal No 1 | 1 | $ 6.86 | ||
| 4 | 61439-88L01 Tilt Up Handle Seal No 2
SKU: 61439-88L01 Weight: 0.100000 Brand: Price: $ 10.84 |
Tilt Up Handle Seal No 2 | 1 | $ 10.84 | ||
| 5 | 03542-06169 SCREW
SKU: 03542-06169 Weight: 0.060000 Brand: Price: $ 2.16 |
SCREW | 5 | $ 2.16 | ||
| 6 | 61476-88L00 Air Vent Seal
SKU: 61476-88L00 Weight: 0.250000 Brand: Price: $ 7.24 |
Air Vent Seal | 1 | $ 7.24 | ||
| 7 | 61610-95J00 Rear Fastener
SKU: 61610-95J00 Weight: 0.200000 Brand: Price: $ 29.40 |
Rear Fastener | 1 | $ 29.40 | ||
| 8 | 09159-06084 Nut (NLA)
SKU: 09159-06084 Weight: 0.100000 Brand: Price: $ 1.62 |
Nut (NLA) | 1 | $ 1.62 | ||
| 9 | 61443-88L02 Starboard Engine Cover Stripe
SKU: 61443-88L02 Weight: 0.250000 Brand: Price: $ 55.49 |
Starboard Engine Cover Stripe | 1 | $ 55.49 | ||
| 10 | 61453-88L02 Port Engine Cover Stripe
SKU: 61453-88L02 Weight: 0.250000 Brand: Price: $ 53.24 |
Port Engine Cover Stripe | 1 | $ 53.24 | ||
| 11 | 61446-87L13 DECAL,EFI
SKU: 61446-87L13 Weight: 0.000000 Brand: Price: $ 7.33 |
DECAL,EFI | 1 | $ 7.33 | ||
| 12 | 68111-18G20 Emblem Mark 'S'
SKU: 68111-18G20 Weight: 0.060000 Brand: Price: $ 34.12 |
Emblem Mark 'S' | 1 | $ 34.12 | ||
| 13 | 61422-88L02 Front Emblem Mark (40)
SKU: 61422-88L02 Weight: 0.200000 Brand: Price: $ 11.77 |
Front Emblem Mark (40) | 1 | $ 11.77 | ||
| 14 | 61435-88L02 Emblem Mark (40)
SKU: 61435-88L02 Weight: 0.200000 Brand: Price: $ 13.03 |
Emblem Mark (40) | 1 | $ 13.03 | ||
| 15 | 61458-99E31 Engine Cover Label
SKU: 61458-99E31 Weight: 0.060000 Brand: Price: $ 11.87 |
Engine Cover Label | 1 | $ 11.87 | ||
| 16 | 09800-81812 Tool Set
SKU: 09800-81812 Weight: 1.600000 Brand: Price: $ 81.82 |
Tool Set | 1 | $ 81.82 | ||
| 17 | 18210-88L00 Starter Knob Assembly
SKU: 18210-88L00 Weight: 0.500000 Brand: Price: $ 13.57 |
Starter Knob Assembly | 1 | $ 13.57 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
