Suzuki DF 40A Parts Listings - 2012
S/N 04003F-210001 to 04003F-21XXXX

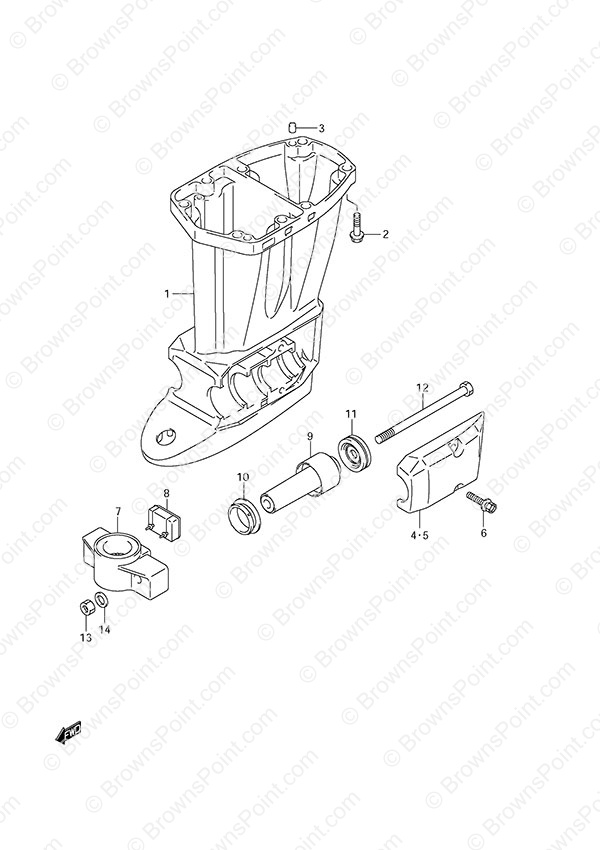

Fig. 48 - Drive Shaft Housing
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 52111-88L10-0EP Drive Shaft Housing (L)
SKU: 52111-88L10-0EP Weight: 10.000000 Brand: Price: $ 510.36 |
Drive Shaft Housing (L) | 1 | $ 510.36 | ||
| 2 | 09116-10176 Bolt (10x44)
SKU: 09116-10176 Weight: 0.080000 Brand: Price: $ 6.81 |
Bolt (10x44) | 8 | $ 6.81 | ||
| 3 | 09202-08006 Knock Pin (8x12)
SKU: 09202-08006 Weight: 0.060000 Brand: Price: $ 2.77 |
Knock Pin (8x12) | 2 | $ 2.77 | ||
| 4 | 54221-88L00-0EP Lower Mount Stbd Cover
SKU: 54221-88L00-0EP Weight: 0.250000 Brand: Price: $ 54.84 |
Lower Mount Stbd Cover | 1 | $ 54.84 | ||
| 5 | 54231-88L00-0EP Lower Mount Port Cover
SKU: 54231-88L00-0EP Weight: 0.250000 Brand: Price: $ 44.23 |
Lower Mount Port Cover | 1 | $ 44.23 | ||
| 6 | 09116-10176 Bolt (10x44)
SKU: 09116-10176 Weight: 0.080000 Brand: Price: $ 6.81 |
Bolt (10x44) | 4 | $ 6.81 | ||
| 7 | 54211-87J30-0EP Lower Mount Bracket
SKU: 54211-87J30-0EP Weight: 1.120000 Brand: Price: $ 136.74 |
Lower Mount Bracket | 1 | $ 136.74 | ||
| 8 | 54151-88L00 Lower Thrust Mount
SKU: 54151-88L00 Weight: 0.250000 Brand: Price: $ 8.12 |
Lower Thrust Mount | 1 | $ 8.12 | ||
| 9 | 54160-88L10 Lower Mount
SKU: 54160-88L10 Weight: 0.500000 Brand: Price: $ 91.92 |
Lower Mount | 2 | $ 91.92 | ||
| 10 | 54167-87L01 Lower Side Mount
SKU: 54167-87L01 Weight: 0.250000 Brand: Price: $ 7.90 |
Lower Side Mount | 2 | $ 7.90 | ||
| 11 | 54180-88L00 Forward Stopper Damper
SKU: 54180-88L00 Weight: 0.250000 Brand: Price: $ 21.92 |
Forward Stopper Damper | 2 | $ 21.92 | ||
| 12 | 54166-95J02 Mount Bolt
SKU: 54166-95J02 Weight: 0.250000 Brand: Price: $ 35.12 |
Mount Bolt | 2 | $ 35.12 | ||
| 13 | 09159-12014 Nut (12x17)
SKU: 09159-12014 Weight: 0.060000 Brand: Price: $ 5.04 |
Nut (12x17) | 2 | $ 5.04 | ||
| 14 | 54114-90J10 Washer
SKU: 54114-90J10 Weight: 0.060000 Brand: Price: $ 6.03 |
Washer | 2 | $ 6.03 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
