Suzuki DF 15 Parts Listings - 2012
S/N 01503F-210001 to 01503F-21XXXX

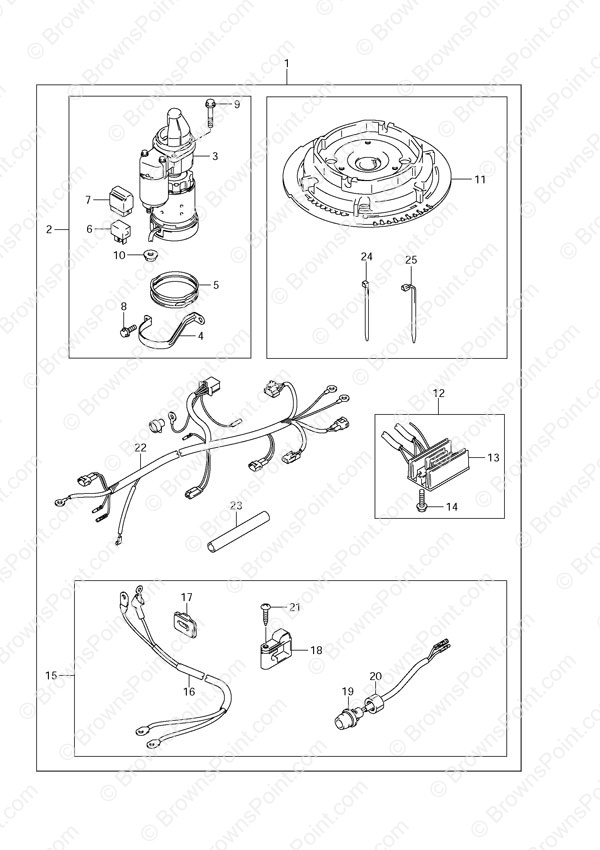

Fig. 79 - Opt: Starting Motor Manual Starter
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 31000-94J02 Electric Starter Set
SKU: 31000-94J02 Weight: 0.100000 Brand: Price: $ 964.95 |
Electric Starter Set | 1 | $ 964.95 | ||
| 2 | 31101-94J01 Starter Motor Set (NLA)
SKU: 31101-94J01 Weight: 0.100000 Brand: Price: $ 868.89 |
Starter Motor Set (NLA) | 1 | $ 868.89 | ||
| 3 | 31100-94J22 Starter Motor Assembly
SKU: 31100-94J22 Weight: 6.540000 Brand: Price: $ 864.04 |
Starter Motor Assembly | 1 | $ 864.04 | ||
| 4 | 31912-94J00 Starting Motor Band (NLA)
SKU: 31912-94J00 Weight: 0.100000 Brand: Price: $ 6.42 |
Starting Motor Band (NLA) | 1 | $ 6.42 | ||
| 5 | 31918-94J00 Lower Damper
SKU: 31918-94J00 Weight: 0.100000 Brand: Price: $ 7.47 |
Lower Damper | 1 | $ 7.47 | ||
| 6 | 38860-76F01 Relay
SKU: 38860-76F01 Weight: 0.060000 Brand: Price: $ 36.31 |
Relay | 1 | $ 36.31 | ||
| 7 | 38915-90J00 Relay Holder
SKU: 38915-90J00 Weight: 0.060000 Brand: Price: $ 4.39 |
Relay Holder | 1 | $ 4.39 | ||
| 8 | 01550-08207 BOLT
SKU: 01550-08207 Weight: 0.060000 Brand: Price: $ 2.74 |
BOLT | 2 | $ 2.74 | Lower | |
| 9 | 01550-08257 BOLT
SKU: 01550-08257 Weight: 0.060000 Brand: Price: $ 2.82 |
BOLT | 2 | $ 2.82 | Upper | |
| 10 | 08316-10087 Nut
SKU: 08316-10087 Weight: 0.060000 Brand: Price: $ 2.27 |
Nut | 1 | $ 2.27 | ||
| 11 | 32102-94J10 Flywheel
SKU: 32102-94J10 Weight: 7.600000 Brand: Price: $ 417.88 |
Flywheel | 1 | $ 417.88 | ||
| 12 | 32801-94J01 Rectifier/Regulator Set
SKU: 32801-94J01 Weight: 0.100000 Brand: Price: $ 214.02 |
Rectifier/Regulator Set | 1 | $ 214.02 | ||
| 13 | 32800-94J11 Rectifier/Regulator Assembly
SKU: 32800-94J11 Weight: 0.320000 Brand: Price: $ 217.82 |
Rectifier/Regulator Assembly | 1 | $ 217.82 | ||
| 14 | 01550-06257 BOLT
SKU: 01550-06257 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 2 | $ 2.33 | ||
| 15 | 33800-94J00 Starting Cable Set (NLA)
SKU: 33800-94J00 Weight: 1.000000 Brand: Price: $ 84.84 |
Starting Cable Set (NLA) | 1 | $ 84.84 | ||
| 16 | 33810-94J01 Starter Motor Cable
SKU: 33810-94J01 Weight: 2.000000 Brand: Price: $ 82.72 |
Starter Motor Cable | 1 | $ 82.72 | ||
| 17 | 33811-94J10 Starter Cable Grommet (NLA)
SKU: 33811-94J10 Weight: 0.100000 Brand: Price: $ 3.03 |
Starter Cable Grommet (NLA) | 1 | $ 3.03 | ||
| 18 | 33816-94J01 Cable Clamp
SKU: 33816-94J01 Weight: 0.100000 Brand: Price: $ 4.80 |
Cable Clamp | 1 | $ 4.80 | ||
| 19 | 37161-94J00 Start Switch Assembly
SKU: 37161-94J00 Weight: 1.000000 Brand: Price: $ 41.14 |
Start Switch Assembly | 1 | $ 41.14 | ||
| 20 | 09159-14014 Nut (10mm)
SKU: 09159-14014 Weight: 0.060000 Brand: Price: $ 3.98 |
Nut (10mm) | 1 | $ 3.98 | ||
| 21 | 03241-0625A SCREW
SKU: 03241-0625A Weight: 0.100000 Brand: Price: $ 2.08 |
SCREW | 1 | $ 2.08 | ||
| 22 | 36610-94J10 Wiring Harness Assembly
SKU: 36610-94J10 Weight: 5.000000 Brand: Price: $ 147.99 |
Wiring Harness Assembly | 1 | $ 147.99 | ||
| 23 | 33833-94JL0 Switch Lead Tube
SKU: 33833-94JL0 Weight: 0.100000 Brand: Price: $ 4.39 |
Switch Lead Tube | 1 | $ 4.39 | ||
| 24 | 09407-10404 Clamp (L:100)
SKU: 09407-10404 Weight: 0.060000 Brand: Price: $ 2.52 |
Clamp (L:100) | 4 | $ 2.52 | ||
| 25 | 09407-11401 Clamp (L:95)
SKU: 09407-11401 Weight: 0.060000 Brand: Price: $ 2.28 |
Clamp (L:95) | 1 | $ 2.28 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
