Suzuki DF 15 Parts Listings - 2012
S/N 01503F-210001 to 01503F-21XXXX

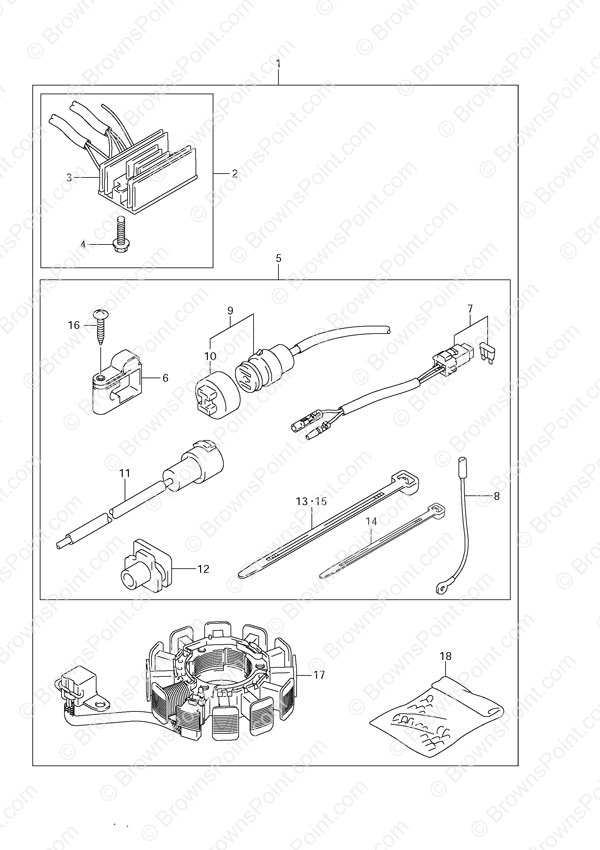

Fig. 78 - Opt: Electrical Manual Starter
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 32000-94J01 Battery Charging Kit
SKU: 32000-94J01 Weight: 1.000000 Brand: Price: $ 206.67 |
Battery Charging Kit | 1 | $ 206.67 | ||
| 2 | 32801-94J01 Rectifier/Regulator Set
SKU: 32801-94J01 Weight: 0.100000 Brand: Price: $ 214.02 |
Rectifier/Regulator Set | 1 | $ 214.02 | ||
| 3 | 32800-94J11 Rectifier/Regulator Assembly
SKU: 32800-94J11 Weight: 0.320000 Brand: Price: $ 217.82 |
Rectifier/Regulator Assembly | 1 | $ 217.82 | ||
| 4 | 01550-06257 BOLT
SKU: 01550-06257 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 2 | $ 2.33 | ||
| 5 | 39600-94J01 Receptacle Set
SKU: 39600-94J01 Weight: 0.100000 Brand: Price: $ 100.13 |
Receptacle Set | 1 | $ 100.13 | ||
| 6 | 33816-94J01 Cable Clamp
SKU: 33816-94J01 Weight: 0.100000 Brand: Price: $ 4.80 |
Cable Clamp | 1 | $ 4.80 | ||
| 7 | 36740-94J00 Fuse Case Assembly (NLA)
SKU: 36740-94J00 Weight: 0.100000 Brand: Price: $ 36.42 |
Fuse Case Assembly (NLA) | 1 | $ 36.42 | ||
| 8 | 37801-98300 Lead (NLA)
SKU: 37801-98300 Weight: 0.100000 Brand: Price: $ 3.65 |
Lead (NLA) | 1 | $ 3.65 | ||
| 9 | 39601-95D00 Lighting Receptacle Assembly
SKU: 39601-95D00 Weight: 0.250000 Brand: Price: $ 39.79 |
Lighting Receptacle Assembly | 1 | $ 39.79 | ||
| 10 | 36634-93910 Connector Cap
SKU: 36634-93910 Weight: 0.060000 Brand: Price: $ 4.66 |
Connector Cap | 1 | $ 4.66 | ||
| 11 | 39602-93900 Lamp Cord Plug Assembly
SKU: 39602-93900 Weight: 0.500000 Brand: Price: $ 41.23 |
Lamp Cord Plug Assembly | 1 | $ 41.23 | ||
| 12 | 39603-94400 Receptacle Grommet (NLA)
SKU: 39603-94400 Weight: 0.100000 Brand: Price: $ 6.73 |
Receptacle Grommet (NLA) | 1 | $ 6.73 | ||
| 13 | 09407-10404 Clamp (L:100)
SKU: 09407-10404 Weight: 0.060000 Brand: Price: $ 2.52 |
Clamp (L:100) | 1 | $ 2.52 | ||
| 14 | 09407-14403 Clamp (L:125)
SKU: 09407-14403 Weight: 0.060000 Brand: Price: $ 2.27 |
Clamp (L:125) | 2 | $ 2.27 | ||
| 15 | 09407-25402 Clamp (L:248)
SKU: 09407-25402 Weight: 0.100000 Brand: Price: $ 4.73 |
Clamp (L:248) | 1 | $ 4.73 | ||
| 16 | 03241-0625A SCREW
SKU: 03241-0625A Weight: 0.100000 Brand: Price: $ 2.08 |
SCREW | 1 | $ 2.08 | ||
| 17 | 32120-94J10 Stator & Pulser Coil
SKU: 32120-94J10 Weight: 1.920000 Brand: Price: $ 319.77 |
Stator & Pulser Coil | 1 | $ 319.77 | ||
| 18 | 36990-87D00 Terminal & Sleeve Set
SKU: 36990-87D00 Weight: 0.100000 Brand: Price: $ 18.47 |
Terminal & Sleeve Set | 1 | $ 18.47 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
