Suzuki DF 15 Parts Listings - 2012
S/N 01503F-210001 to 01503F-21XXXX

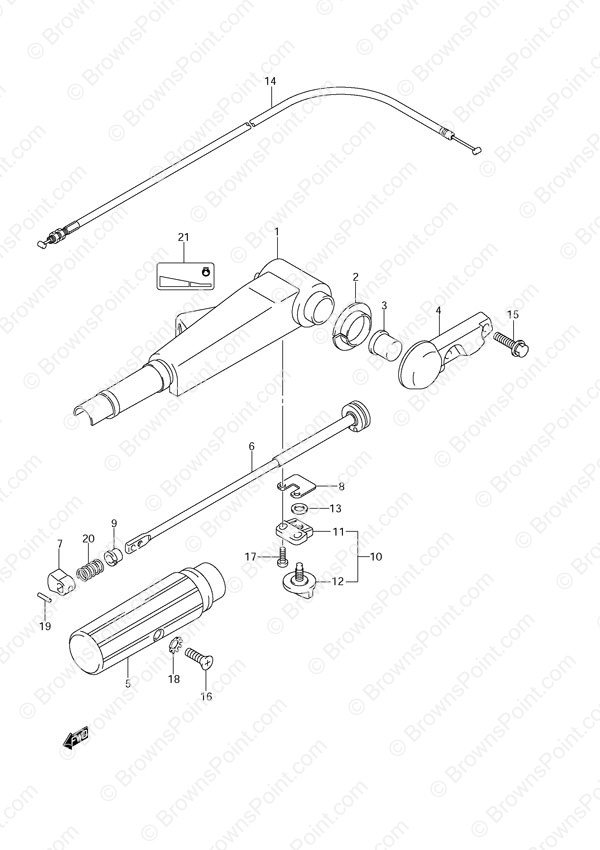

Fig. 72 - Tiller Handle
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 63111-94J20-0EP Tiller Handle (NLA)
SKU: 63111-94J20-0EP Weight: 1.000000 Brand: Price: $ 186.31 |
Tiller Handle (NLA) | 1 | $ 186.31 | ||
| 2 | 63115-94J00 Tiller Handle Bushing
SKU: 63115-94J00 Weight: 0.060000 Brand: Price: $ 5.90 |
Tiller Handle Bushing | 2 | $ 5.90 | ||
| 3 | 63116-94J00 Friction Rubber (NLA)
SKU: 63116-94J00 Weight: 0.060000 Brand: Price: $ 4.65 |
Friction Rubber (NLA) | 1 | $ 4.65 | ||
| 4 | 63121-94J20-0EP Tiller Handle Cover
SKU: 63121-94J20-0EP Weight: 0.100000 Brand: Price: $ 89.40 |
Tiller Handle Cover | 1 | $ 89.40 | ||
| 5 | 63210-93E30 Handle Grip
SKU: 63210-93E30 Weight: 1.500000 Brand: Price: $ 34.82 |
Handle Grip | 1 | $ 34.82 | ||
| 6 | 63220-94J00 Handle Rod
SKU: 63220-94J00 Weight: 1.000000 Brand: Price: $ 30.90 |
Handle Rod | 1 | $ 30.90 | ||
| 7 | 63223-89J00 Handle Rod Stopper (NLA)
SKU: 63223-89J00 Weight: 0.100000 Brand: Price: $ 4.21 |
Handle Rod Stopper (NLA) | 1 | $ 4.21 | ||
| 8 | 63225-94J00 Handle Rod Adjuster Plate
SKU: 63225-94J00 Weight: 0.200000 Brand: Price: $ 4.61 |
Handle Rod Adjuster Plate | 1 | $ 4.61 | ||
| 9 | 63225-93200 Handle Rod Bushing
SKU: 63225-93200 Weight: 0.060000 Brand: Price: $ 4.05 |
Handle Rod Bushing | 1 | $ 4.05 | ||
| 10 | 63240-94J20 Handle Grip Adjuster Set
SKU: 63240-94J20 Weight: 0.120000 Brand: Price: $ 9.43 |
Handle Grip Adjuster Set | 1 | $ 9.43 | ||
| 11 | 63241-986B0 Handle Rod Support
SKU: 63241-986B0 Weight: 0.060000 Brand: Price: $ 7.01 |
Handle Rod Support | 1 | $ 7.01 | ||
| 12 | 63244-94J00 Throttle Adjust Knob
SKU: 63244-94J00 Weight: 0.060000 Brand: Price: $ 8.79 |
Throttle Adjust Knob | 1 | $ 8.79 | ||
| 13 | 09148-06008 Nut
SKU: 09148-06008 Weight: 0.060000 Brand: Price: $ 1.30 |
Nut | 1 | $ 1.30 | ||
| 14 | 63610-94J00 Throttle Cable Assembly
SKU: 63610-94J00 Weight: 0.250000 Brand: Price: $ 21.92 |
Throttle Cable Assembly | 2 | $ 21.92 | ||
| 15 | 09116-08122 Bolt (8x30)
SKU: 09116-08122 Weight: 0.060000 Brand: Price: $ 4.66 |
Bolt (8x30) | 2 | $ 4.66 | ||
| 16 | 09126-06015 Screw (6x23)
SKU: 09126-06015 Weight: 0.060000 Brand: Price: $ 2.62 |
Screw (6x23) | 1 | $ 2.62 | ||
| 17 | 09136-05041 Screw (5x20)
SKU: 09136-05041 Weight: 0.060000 Brand: Price: $ 1.97 |
Screw (5x20) | 2 | $ 1.97 | ||
| 18 | 09163-06001 Lock Washer (6.4x12x0.5)
SKU: 09163-06001 Weight: 0.060000 Brand: Price: $ 1.49 |
Lock Washer (6.4x12x0.5) | 1 | $ 1.49 | ||
| 19 | 09205-03038 Handle Rod Pin
SKU: 09205-03038 Weight: 0.062500 Brand: Price: $ 1.79 |
Handle Rod Pin | 1 | $ 1.79 | ||
| 20 | 09440-12027 Spring
SKU: 09440-12027 Weight: 0.060000 Brand: Price: $ 1.39 |
Spring | 1 | $ 1.39 | ||
| 21 | 69714-94J00 Engine Start Mark (NLA)
SKU: 69714-94J00 Weight: 0.100000 Brand: Price: $ 2.64 |
Engine Start Mark (NLA) | 1 | $ 2.64 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
