Suzuki DF 15 Parts Listings - 2012
S/N 01503F-210001 to 01503F-21XXXX

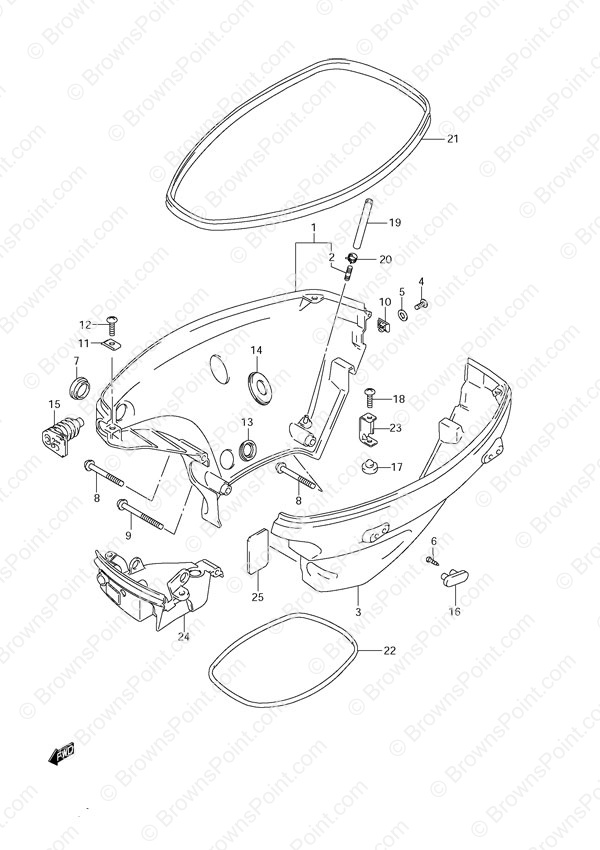

Fig. 64 - Side over
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 61810-94J00-0EP Starboard Side Cover
SKU: 61810-94J00-0EP Weight: 5.000000 Brand: Price: $ 256.84 |
Starboard Side Cover | 1 | $ 256.84 | ||
| 2 | 61155-94500 Water Inspection Tube
SKU: 61155-94500 Weight: 0.060000 Brand: Price: $ 3.47 |
Water Inspection Tube | 1 | $ 3.47 | ||
| 3 | 61821-94J00-0EP Port Side Cover
SKU: 61821-94J00-0EP Weight: 2.000000 Brand: Price: $ 256.84 |
Port Side Cover | 1 | $ 256.84 | ||
| 4 | 09125-06067 Screw (6x16)
SKU: 09125-06067 Weight: 0.060000 Brand: Price: $ 2.06 |
Screw (6x16) | 1 | $ 2.06 | ||
| 5 | 09160-06082 Washer (6.5x13x1.0)
SKU: 09160-06082 Weight: 0.060000 Brand: Price: $ 1.44 |
Washer (6.5x13x1.0) | 1 | $ 1.44 | ||
| 6 | 03542-05169 SCREW
SKU: 03542-05169 Weight: 0.060000 Brand: Price: $ 1.70 |
SCREW | 4 | $ 1.70 | ||
| 7 | 09250-26006 Clutch Hole Plug
SKU: 09250-26006 Weight: 0.060000 Brand: Price: $ 2.48 |
Clutch Hole Plug | 1 | $ 2.48 | ||
| 8 | 09136-06137 Screw (6x55)
SKU: 09136-06137 Weight: 0.060000 Brand: Price: $ 3.91 |
Screw (6x55) | 2 | $ 3.91 | ||
| 9 | 09136-06138 Screw (6x75)
SKU: 09136-06138 Weight: 0.060000 Brand: Price: $ 4.96 |
Screw (6x75) | 1 | $ 4.96 | ||
| 10 | 61825-94J00 Side Cover Nut
SKU: 61825-94J00 Weight: 0.250000 Brand: Price: $ 14.52 |
Side Cover Nut | 1 | $ 14.52 | ||
| 11 | 09148-06017 Nut
SKU: 09148-06017 Weight: 0.060000 Brand: Price: $ 3.26 |
Nut | 2 | $ 3.26 | ||
| 12 | 02142-06167 6 X 16 CROSS SC
SKU: 02142-06167 Weight: 0.060000 Brand: Price: $ 1.38 |
6 X 16 CROSS SC | 2 | $ 1.38 | ||
| 13 | 61115-93E00 Side Cover Drain Seal
SKU: 61115-93E00 Weight: 0.100000 Brand: Price: $ 7.94 |
Side Cover Drain Seal | 1 | $ 7.94 | ||
| 14 | 61124-93E00 Side Cover Plug
SKU: 61124-93E00 Weight: 0.060000 Brand: Price: $ 8.24 |
Side Cover Plug | 1 | $ 8.24 | ||
| 15 | 67331-94J00 Side Cover Grommet
SKU: 67331-94J00 Weight: 0.100000 Brand: Price: $ 13.32 |
Side Cover Grommet | 1 | $ 13.32 | ||
| 16 | 61851-93E10 Engine Cover Protector
SKU: 61851-93E10 Weight: 0.060000 Brand: Price: $ 5.46 |
Engine Cover Protector | 2 | $ 5.46 | ||
| 17 | 61151-91J11 Cushion
SKU: 61151-91J11 Weight: 0.060000 Brand: Price: $ 3.66 |
Cushion | 1 | $ 3.66 | ||
| 18 | 02142-06167 6 X 16 CROSS SC
SKU: 02142-06167 Weight: 0.060000 Brand: Price: $ 1.38 |
6 X 16 CROSS SC | 1 | $ 1.38 | ||
| 19 | 15211-91J00-180 Hose (NLA)
SKU: 15211-91J00-180 Weight: 0.100000 Brand: Price: $ 1.87 |
Hose (NLA) | 1 | $ 1.87 | ||
| 20 | 09401-08413 Clip
SKU: 09401-08413 Weight: 0.060000 Brand: Price: $ 2.09 |
Clip | 2 | $ 2.09 | ||
| 21 | 61112-93930 Lower Engine Cover Rubber
SKU: 61112-93930 Weight: 0.600000 Brand: Price: $ 44.91 |
Lower Engine Cover Rubber | 1 | $ 44.91 | ||
| 22 | 61134-93E00 Side Cover Seal
SKU: 61134-93E00 Weight: 0.060000 Brand: Price: $ 8.91 |
Side Cover Seal | 1 | $ 8.91 | ||
| 23 | 61827-94J00 Side Cover Holder (NLA)
SKU: 61827-94J00 Weight: 1.000000 Brand: Price: $ 10.61 |
Side Cover Holder (NLA) | 1 | $ 10.61 | ||
| 24 | 61831-94J30-0EP Instrument Panel (NLA)
SKU: 61831-94J30-0EP Weight: 1.000000 Brand: Price: $ 62.12 |
Instrument Panel (NLA) | 1 | $ 62.12 | ||
| 25 | 61814-94JL0 Side Cover Protector
SKU: 61814-94JL0 Weight: 0.250000 Brand: Price: $ 5.13 |
Side Cover Protector | 2 | $ 5.13 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
