Suzuki DF 15 Parts Listings - 2012
S/N 01503F-210001 to 01503F-21XXXX

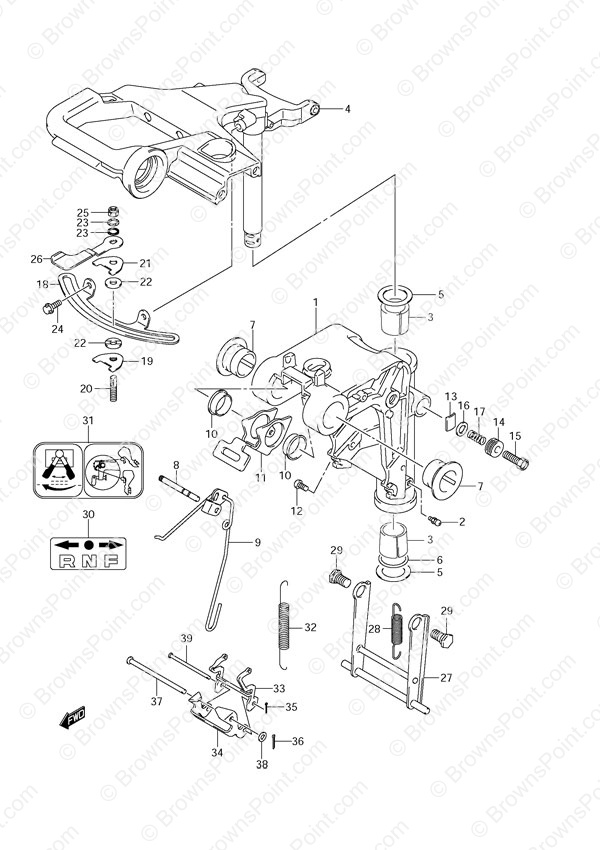

Fig. 51 - Swivel Bracket
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 43111-94J31-0EP Swivel Bracket
SKU: 43111-94J31-0EP Weight: 5.000000 Brand: Price: $ 482.16 |
Swivel Bracket | 1 | $ 482.16 | ||
| 2 | 22511-99011 Grease Nipple
SKU: 22511-99011 Weight: 0.060000 Brand: Price: $ 3.36 |
Grease Nipple | 3 | $ 3.36 | ||
| 3 | 43711-99J00 Steering Bushing
SKU: 43711-99J00 Weight: 0.250000 Brand: Price: $ 14.52 |
Steering Bushing | 2 | $ 14.52 | ||
| 4 | 43750-94J20-0EP Steering Bracket
SKU: 43750-94J20-0EP Weight: 5.000000 Brand: Price: $ 389.75 |
Steering Bracket | 1 | $ 389.75 | ||
| 5 | 09160-27013 Washer
SKU: 09160-27013 Weight: 0.060000 Brand: Price: $ 3.72 |
Washer | 2 | $ 3.72 | ||
| 6 | 09280-27004 O-Ring
SKU: 09280-27004 Weight: 0.100000 Brand: Price: $ 1.93 |
O-Ring | 1 | $ 1.93 | ||
| 7 | 43211-87JL0 Swivel Bracket Bushing
SKU: 43211-87JL0 Weight: 0.100000 Brand: Price: $ 33.39 |
Swivel Bracket Bushing | 2 | $ 33.39 | ||
| 8 | 41225-94502 Release Arm Pin
SKU: 41225-94502 Weight: 0.060000 Brand: Price: $ 5.64 |
Release Arm Pin | 1 | $ 5.64 | ||
| 9 | 45250-94J00 Release Link
SKU: 45250-94J00 Weight: 0.250000 Brand: Price: $ 20.41 |
Release Link | 1 | $ 20.41 | ||
| 10 | 09306-22006 Bushing
SKU: 09306-22006 Weight: 0.060000 Brand: Price: $ 1.26 |
Bushing | 2 | $ 1.26 | ||
| 11 | 45261-94J00 Release Lever
SKU: 45261-94J00 Weight: 0.120000 Brand: Price: $ 26.65 |
Release Lever | 1 | $ 26.65 | ||
| 12 | 09125-05050 Screw (5x8)
SKU: 09125-05050 Weight: 0.060000 Brand: Price: $ 1.88 |
Screw (5x8) | 1 | $ 1.88 | ||
| 13 | 43411-939L0 Steering Adjuster Plate
SKU: 43411-939L0 Weight: 0.100000 Brand: Price: $ 3.31 |
Steering Adjuster Plate | 1 | $ 3.31 | ||
| 14 | 43412-93901 COVER,STEERING
SKU: 43412-93901 Weight: 0.000000 Brand: Price: $ 2.60 |
COVER,STEERING | 1 | $ 2.60 | ||
| 15 | 09100-08232 Bolt (8x30)
SKU: 09100-08232 Weight: 0.060000 Brand: Price: $ 3.57 |
Bolt (8x30) | 1 | $ 3.57 | ||
| 16 | 09160-08082 Washer (8.5x16x1.2)
SKU: 09160-08082 Weight: 0.060000 Brand: Price: $ 1.63 |
Washer (8.5x16x1.2) | 1 | $ 1.63 | ||
| 17 | 29440-93J00 Steering Adjuster Spring
SKU: 29440-93J00 Weight: 0.100000 Brand: Price: $ 2.24 |
Steering Adjuster Spring | 1 | $ 2.24 | ||
| 18 | 43415-94J00 Steering Adjuster Plate
SKU: 43415-94J00 Weight: 0.100000 Brand: Price: $ 28.66 |
Steering Adjuster Plate | 1 | $ 28.66 | ||
| 19 | 43420-94J20 Steering Adjuster Friction Plate
SKU: 43420-94J20 Weight: 0.060000 Brand: Price: $ 10.88 |
Steering Adjuster Friction Plate | 1 | $ 10.88 | ||
| 20 | 43512-94JL0 Steering Adjuster Shaft
SKU: 43512-94JL0 Weight: 0.250000 Brand: Price: $ 17.66 |
Steering Adjuster Shaft | 1 | $ 17.66 | ||
| 21 | 43514-94J00 Steering Adjuster Plate
SKU: 43514-94J00 Weight: 0.060000 Brand: Price: $ 6.18 |
Steering Adjuster Plate | 1 | $ 6.18 | ||
| 22 | 43514-95J00 Steering Adjuster Washer
SKU: 43514-95J00 Weight: 0.100000 Brand: Price: $ 3.71 |
Steering Adjuster Washer | 2 | $ 3.71 | ||
| 23 | 43516-89J00 Steering Adjuster Washer
SKU: 43516-89J00 Weight: 0.100000 Brand: Price: $ 15.32 |
Steering Adjuster Washer | 2 | $ 15.32 | ||
| 24 | 29116-93J00 Bolt (6x20)
SKU: 29116-93J00 Weight: 0.060000 Brand: Price: $ 2.55 |
Bolt (6x20) | 2 | $ 2.55 | ||
| 25 | 09159-08059 Nut
SKU: 09159-08059 Weight: 0.060000 Brand: Price: $ 5.21 |
Nut | 1 | $ 5.21 | ||
| 26 | 43411-94J00 Steering Adjuster
SKU: 43411-94J00 Weight: 0.080000 Brand: Price: $ 19.50 |
Steering Adjuster | 1 | $ 19.50 | ||
| 27 | 45710-99JL1 Shallow Water Drive Assembly
SKU: 45710-99JL1 Weight: 0.500000 Brand: Price: $ 38.44 |
Shallow Water Drive Assembly | 1 | $ 38.44 | ||
| 28 | 45722-94J11 Shallow Water Drive Spring
SKU: 45722-94J11 Weight: 0.060000 Brand: Price: $ 20.04 |
Shallow Water Drive Spring | 1 | $ 20.04 | ||
| 29 | 09111-10067 Bolt (10x20.4)
SKU: 09111-10067 Weight: 0.060000 Brand: Price: $ 6.13 |
Bolt (10x20.4) | 2 | $ 6.13 | ||
| 30 | 21131-94J00 Clutch Shift Mark *
SKU: 21131-94J00 Weight: 0.060000 Brand: Price: $ 1.41 |
Clutch Shift Mark * | 1 | $ 1.41 | ||
| 31 | 45269-94J00 Reverse Lock Mark
SKU: 45269-94J00 Weight: 0.100000 Brand: Price: $ 7.28 |
Reverse Lock Mark | 1 | $ 7.28 | ||
| 32 | 45212-99JL0 Reverse Lock Arm Spring
SKU: 45212-99JL0 Weight: 0.200000 Brand: Price: $ 6.70 |
Reverse Lock Arm Spring | 2 | $ 6.70 | ||
| 33 | 45231-99J10 Reverse Lock Arm
SKU: 45231-99J10 Weight: 0.100000 Brand: Price: $ 19.28 |
Reverse Lock Arm | 1 | $ 19.28 | ||
| 34 | 45241-99JL1 Reverse Lock Arm Link (NLA)
SKU: 45241-99JL1 Weight: 0.100000 Brand: Price: $ 38.87 |
Reverse Lock Arm Link (NLA) | 1 | $ 38.87 | ||
| 35 | 09204-01002 Cotter Pin
SKU: 09204-01002 Weight: 0.060000 Brand: Price: $ 1.70 |
Cotter Pin | 1 | $ 1.70 | ||
| 36 | 45247-99J00 Reverse Lock Arm Cotter Pin
SKU: 45247-99J00 Weight: 0.250000 Brand: Price: $ 2.53 |
Reverse Lock Arm Cotter Pin | 1 | $ 2.53 | ||
| 37 | 09200-06061 Pin
SKU: 09200-06061 Weight: 0.060000 Brand: Price: $ 8.40 |
Pin | 1 | $ 8.40 | ||
| 38 | 09160-06082 Washer (6.5x13x1.0)
SKU: 09160-06082 Weight: 0.060000 Brand: Price: $ 1.44 |
Washer (6.5x13x1.0) | 1 | $ 1.44 | ||
| 39 | 09200-05014 Pin
SKU: 09200-05014 Weight: 0.100000 Brand: Price: $ 3.00 |
Pin | 1 | $ 3.00 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
