Suzuki DF 140 Parts Listings
S/N 14002F-210001 to 14002F-21XXXX
S/N 14002Z-210001 to 14002Z-21XXXX

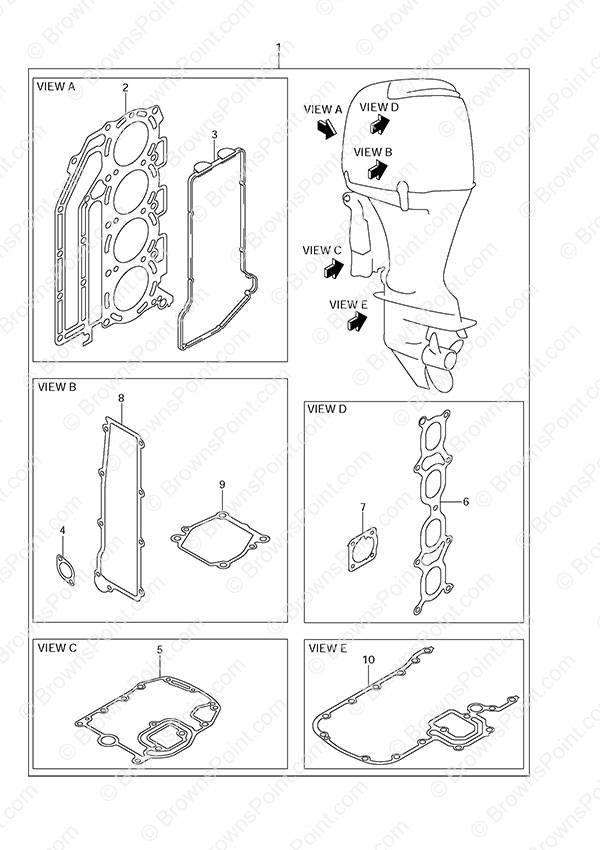

Fig. 56 - Opt: Gasket Set
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 11400-92862 Engine Gasket Set
SKU: 11400-92862 Weight: 5.000000 Brand: Price: $ 234.70 |
Engine Gasket Set | 1 | $ 234.70 | ||
| 2 | 11141-92J01 Cylinder Head Gasket
SKU: 11141-92J01 Weight: 1.000000 Brand: Price: $ 90.51 |
Cylinder Head Gasket | 1 | $ 90.51 | ||
| 3 | 11189-90J00 Cylinder Head Cover Gasket
SKU: 11189-90J00 Weight: 0.120000 Brand: Price: $ 30.24 |
Cylinder Head Cover Gasket | 1 | $ 30.24 | ||
| 4 | 11265-87E10 Protection Cover Gasket
SKU: 11265-87E10 Weight: 0.060000 Brand: Price: $ 3.81 |
Protection Cover Gasket | 2 | $ 3.81 | ||
| 5 | 11489-90J00 Oil Pan Gasket
SKU: 11489-90J00 Weight: 0.500000 Brand: Price: $ 39.90 |
Oil Pan Gasket | 1 | $ 39.90 | ||
| 6 | 13119-90J00 Intake Manifold Gasket
SKU: 13119-90J00 Weight: 0.060000 Brand: Price: $ 6.88 |
Intake Manifold Gasket | 1 | $ 6.88 | ||
| 7 | 13421-90J01 Throttle Body Gasket
SKU: 13421-90J01 Weight: 0.060000 Brand: Price: $ 3.86 |
Throttle Body Gasket | 1 | $ 3.86 | ||
| 8 | 14151-90J00 Rectifier Gasket
SKU: 14151-90J00 Weight: 0.125000 Brand: Price: $ 6.88 |
Rectifier Gasket | 1 | $ 6.88 | ||
| 9 | 17472-87E10 Water Pump Plate Gasket
SKU: 17472-87E10 Weight: 0.060000 Brand: Price: $ 6.07 |
Water Pump Plate Gasket | 1 | $ 6.07 | ||
| 10 | 51211-90J22 Engine Holder Gasket
SKU: 51211-90J22 Weight: 0.300000 Brand: Price: $ 68.40 |
Engine Holder Gasket | 1 | $ 68.40 | ||
| 11 | 99011-90J20-03B Owners Manual DF100/115/140 210001~
SKU: 99011-90J20-03B Weight: 0.100000 Brand: Price: $ 9.80 |
Owners Manual DF100/115/140 210001~ | 1 | $ 9.80 | Not Shown |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
