Suzuki DF 140 Parts Listings
S/N 14002F-210001 to 14002F-21XXXX
S/N 14002Z-210001 to 14002Z-21XXXX

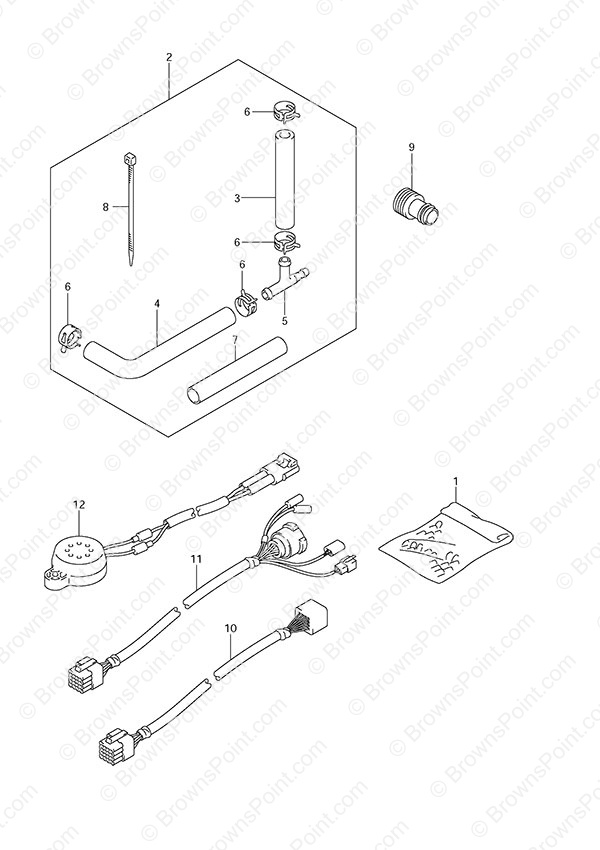

Fig. 48 - Opt: Harness
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 36990-87D00 Terminal & Sleeve Set
SKU: 36990-87D00 Weight: 0.100000 Brand: Price: $ 18.47 |
Terminal & Sleeve Set | 1 | $ 18.47 | ||
| 2 | 34660-90J04 Water Pressure Gauge Install Kit
SKU: 34660-90J04 Weight: 0.250000 Brand: Price: $ 10.05 |
Water Pressure Gauge Install Kit | 1 | $ 10.05 | ||
| 3 | 09352-50006-600 Hose (5x9x600)
SKU: 09352-50006-600 Weight: 0.250000 Brand: Price: $ 7.60 |
Hose (5x9x600) | 1 | $ 7.60 | L:600->160 | |
| 4 | 09352-50006-600 Hose (5x9x600)
SKU: 09352-50006-600 Weight: 0.250000 Brand: Price: $ 7.60 |
Hose (5x9x600) | 1 | $ 7.60 | L:600->210 | |
| 5 | 09367-06006 3 Way
SKU: 09367-06006 Weight: 0.060000 Brand: Price: $ 4.09 |
3 Way | 1 | $ 4.09 | ||
| 6 | 09401-08413 Clip
SKU: 09401-08413 Weight: 0.060000 Brand: Price: $ 2.09 |
Clip | 4 | $ 2.09 | ||
| 7 | 18498-99EA0 Protector (L:80) (NLA)
SKU: 18498-99EA0 Weight: 0.100000 Brand: Price: $ 1.47 |
Protector (L:80) (NLA) | 1 | $ 1.47 | ||
| 8 | 09407-25402 Clamp (L:248)
SKU: 09407-25402 Weight: 0.100000 Brand: Price: $ 4.73 |
Clamp (L:248) | 1 | $ 4.73 | ||
| 9 | 17917-87L00 Water Flush Connector
SKU: 17917-87L00 Weight: 0.060000 Brand: Price: $ 10.07 |
Water Flush Connector | 1 | $ 10.07 | ||
| 10-1 | 36620-93J12 MAIN HARNESS EXT 6.5'
SKU: 36620-93J12 Weight: 0.000000 Brand: Price: $ 87.37 |
MAIN HARNESS EXT 6.5' | 1 | $ 87.37 | L:2000 | |
| 10-2 | 36620-93J42 HARNESS EXT 10'
SKU: 36620-93J42 Weight: 0.000000 Brand: Price: $ 120.18 |
HARNESS EXT 10' | 1 | $ 120.18 | L:3000 | |
| 11 | 36620-93J31 DF Wire Harness Adapter
SKU: 36620-93J31 Weight: 2.000000 Brand: Price: $ 103.94 |
DF Wire Harness Adapter | 1 | $ 103.94 | ||
| 12 | 38500-93J00 Warning Buzzer*
SKU: 38500-93J00 Weight: 0.140000 Brand: Price: $ 67.48 |
Warning Buzzer* | 1 | $ 67.48 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
