Suzuki DF 140 Parts Listings
S/N 14002F-210001 to 14002F-21XXXX
S/N 14002Z-210001 to 14002Z-21XXXX

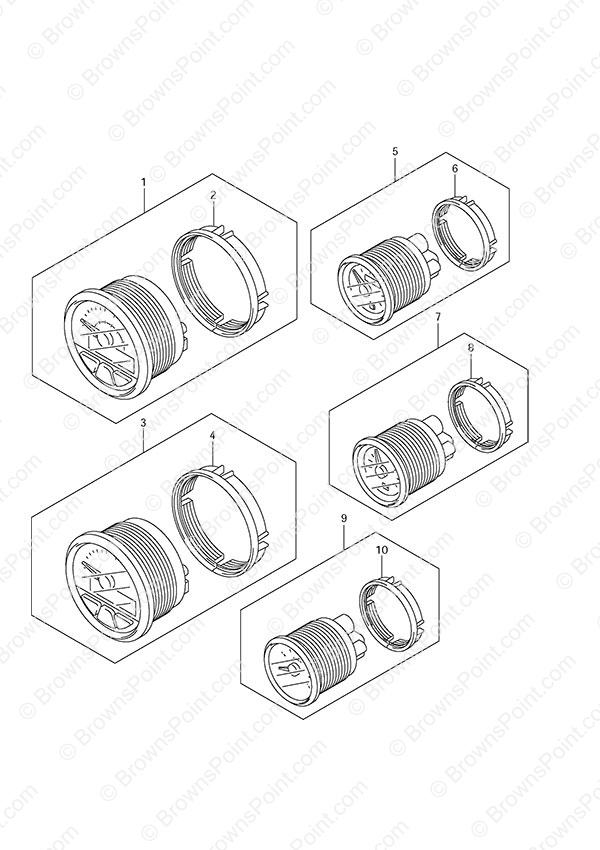

Fig. 47 - Opt: Meter
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1-1 | 34100-98J11 White Speedometer Assy (130kmh) (NLA)
SKU: 34100-98J11 Weight: 0.100000 Brand: Price: $ 207.95 |
White Speedometer Assy (130kmh) (NLA) | 1 | $ 207.95 | ||
| 2 | 34112-98J00 Nut (NLA)
SKU: 34112-98J00 Weight: 0.100000 Brand: Price: $ 12.41 |
Nut (NLA) | 1 | $ 12.41 | ||
| 3 | 34200-98J13 White Tachometer (NLA)
SKU: 34200-98J13 Weight: 0.100000 Brand: Price: $ 304.95 |
White Tachometer (NLA) | 1 | $ 304.95 | ||
| 4 | 34112-98J00 Nut (NLA)
SKU: 34112-98J00 Weight: 0.100000 Brand: Price: $ 12.41 |
Nut (NLA) | 1 | $ 12.41 | ||
| 5-1 | 34300-98J00 Black Fuel Gauge (NLA)
SKU: 34300-98J00 Weight: 2.600000 Brand: Price: $ 86.50 |
Black Fuel Gauge (NLA) | 1 | $ 86.50 | ||
| 5-2 | 34300-98J10 White Fuel Gauge (NLA)
SKU: 34300-98J10 Weight: 1.000000 Brand: Price: $ 86.50 |
White Fuel Gauge (NLA) | 1 | $ 86.50 | ||
| 6 | 34815-98J00 Nut (NLA)
SKU: 34815-98J00 Weight: 0.100000 Brand: Price: $ 8.17 |
Nut (NLA) | 1 | $ 8.17 | ||
| 7-1 | 34600-98J00 Black Volt Meter (NLA)
SKU: 34600-98J00 Weight: 1.000000 Brand: Price: $ 86.50 |
Black Volt Meter (NLA) | 1 | $ 86.50 | ||
| 7-2 | 34600-98J10 White Volt Meter (NLA)
SKU: 34600-98J10 Weight: 1.000000 Brand: Price: $ 86.50 |
White Volt Meter (NLA) | 1 | $ 86.50 | ||
| 8 | 34815-98J00 Nut (NLA)
SKU: 34815-98J00 Weight: 0.100000 Brand: Price: $ 8.17 |
Nut (NLA) | 1 | $ 8.17 | ||
| 9 | 34800-98J10 White Trim Gauge (NLA)
SKU: 34800-98J10 Weight: 1.000000 Brand: Price: $ 86.50 |
White Trim Gauge (NLA) | 1 | $ 86.50 | ||
| 10 | 34815-98J00 Nut (NLA)
SKU: 34815-98J00 Weight: 0.100000 Brand: Price: $ 8.17 |
Nut (NLA) | 1 | $ 8.17 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
