Suzuki DF 140 Parts Listings
S/N 14002F-210001 to 14002F-21XXXX
S/N 14002Z-210001 to 14002Z-21XXXX

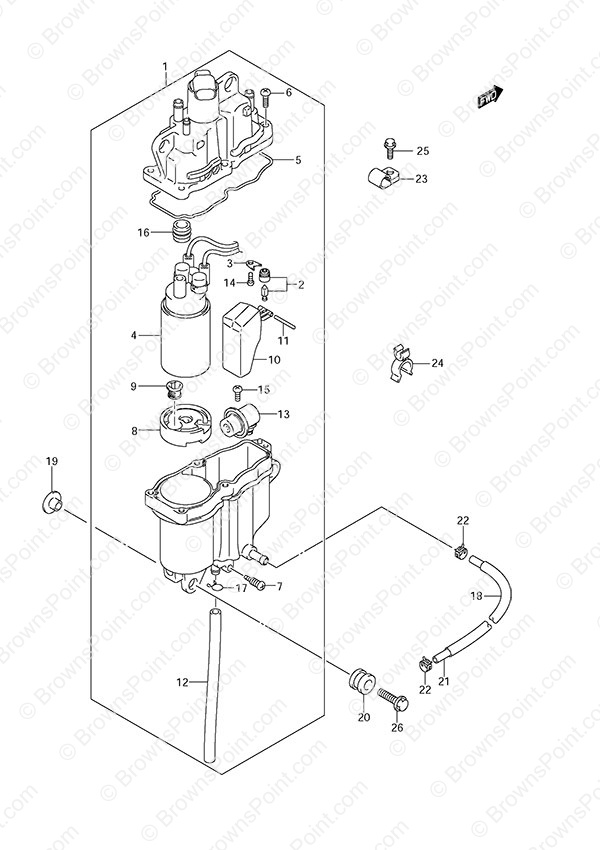

Fig. 9 - Fuel Vapor Separator
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 15600-90J01 Fuel Vapor Separator Assembly
SKU: 15600-90J01 Weight: 2.820000 Brand: Price: $ 891.87 |
Fuel Vapor Separator Assembly | 1 | $ 891.87 | ||
| 2 | 13370-99E00 Needle Valve Assembly
SKU: 13370-99E00 Weight: 0.060000 Brand: Price: $ 48.97 |
Needle Valve Assembly | 1 | $ 48.97 | ||
| 3 | 13373-39110 Needle Valve Plate
SKU: 13373-39110 Weight: 0.062500 Brand: Price: $ 7.01 |
Needle Valve Plate | 1 | $ 7.01 | ||
| 4 | 15200-90J00 Fuel Pump Assembly
SKU: 15200-90J00 Weight: 0.740000 Brand: Price: $ 438.00 |
Fuel Pump Assembly | 1 | $ 438.00 | ||
| 5 | 15626-90J00 Seal
SKU: 15626-90J00 Weight: 0.060000 Brand: Price: $ 14.26 |
Seal | 1 | $ 14.26 | ||
| 6 | 15628-99E00 Screw (L:15)
SKU: 15628-99E00 Weight: 0.060000 Brand: Price: $ 2.42 |
Screw (L:15) | 5 | $ 2.42 | ||
| 7 | 15629-99E10 Drain Screw
SKU: 15629-99E10 Weight: 0.060000 Brand: Price: $ 5.49 |
Drain Screw | 1 | $ 5.49 | ||
| 8 | 15641-90J00 Fuel Pump Spacer
SKU: 15641-90J00 Weight: 0.060000 Brand: Price: $ 26.17 |
Fuel Pump Spacer | 1 | $ 26.17 | ||
| 9 | 15642-90J00 Fuel Pump Filter
SKU: 15642-90J00 Weight: 0.060000 Brand: Price: $ 11.18 |
Fuel Pump Filter | 1 | $ 11.18 | ||
| 10 | 15650-99E00 Float
SKU: 15650-99E00 Weight: 0.060000 Brand: Price: $ 68.42 |
Float | 1 | $ 68.42 | ||
| 11 | 15654-99E00 Float Pin
SKU: 15654-99E00 Weight: 0.060000 Brand: Price: $ 2.50 |
Float Pin | 1 | $ 2.50 | ||
| 12 | 15683-87J00 Drain Hose (L:120)
SKU: 15683-87J00 Weight: 0.125000 Brand: Price: $ 3.37 |
Drain Hose (L:120) | 1 | $ 3.37 | ||
| 13 | 15760-87J00 Fuel Pressure Regulator
SKU: 15760-87J00 Weight: 0.160000 Brand: Price: $ 234.08 |
Fuel Pressure Regulator | 1 | $ 234.08 | ||
| 14 | 02112-0408A SCREW
SKU: 02112-0408A Weight: 0.060000 Brand: Price: $ 1.11 |
SCREW | 1 | $ 1.11 | ||
| 15 | 02112-0510A SCREW
SKU: 02112-0510A Weight: 0.060000 Brand: Price: $ 1.44 |
SCREW | 1 | $ 1.44 | ||
| 16 | 15647-93J00 Fuel Pump Bushing
SKU: 15647-93J00 Weight: 0.060000 Brand: Price: $ 10.12 |
Fuel Pump Bushing | 1 | $ 10.12 | ||
| 17 | 13671-13F00 Clip
SKU: 13671-13F00 Weight: 0.060000 Brand: Price: $ 4.06 |
Clip | 1 | $ 4.06 | ||
| 18 | 18498-90J01 Hose Protector
SKU: 18498-90J01 Weight: 0.250000 Brand: Price: $ 4.37 |
Hose Protector | 1 | $ 4.37 | L:290->140 | |
| 19 | 09169-06075 Washer
SKU: 09169-06075 Weight: 0.200000 Brand: Price: $ 3.19 |
Washer | 3 | $ 3.19 | ||
| 20 | 09320-09059 Cushion
SKU: 09320-09059 Weight: 0.060000 Brand: Price: $ 3.31 |
Cushion | 3 | $ 3.31 | ||
| 21 | 44420-44AR0 Hose (5x8.2x600)
SKU: 44420-44AR0 Weight: 0.180000 Brand: Price: $ 9.36 |
Hose (5x8.2x600) | 1 | $ 9.36 | L:600->340 | |
| 22 | 09401-08412 Clip
SKU: 09401-08412 Weight: 0.060000 Brand: Price: $ 2.09 |
Clip | 2 | $ 2.09 | ||
| 23 | 09403-13413 CLAMP
SKU: 09403-13413 Weight: 0.000000 Brand: Price: $ 5.28 |
CLAMP | 1 | $ 5.28 | ||
| 24 | 09408-00124 Clamp
SKU: 09408-00124 Weight: 0.060000 Brand: Price: $ 1.85 |
Clamp | 1 | $ 1.85 | ||
| 25 | 01550-06127 BOLT
SKU: 01550-06127 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 1 | $ 2.33 | ||
| 26 | 09116-06202 Bolt w/Washer (6x25)
SKU: 09116-06202 Weight: 0.250000 Brand: Price: $ 3.54 |
Bolt w/Washer (6x25) | 3 | $ 3.54 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
