Suzuki DF 140 Parts Listings
S/N 14002F-210001 to 14002F-21XXXX
S/N 14002Z-210001 to 14002Z-21XXXX

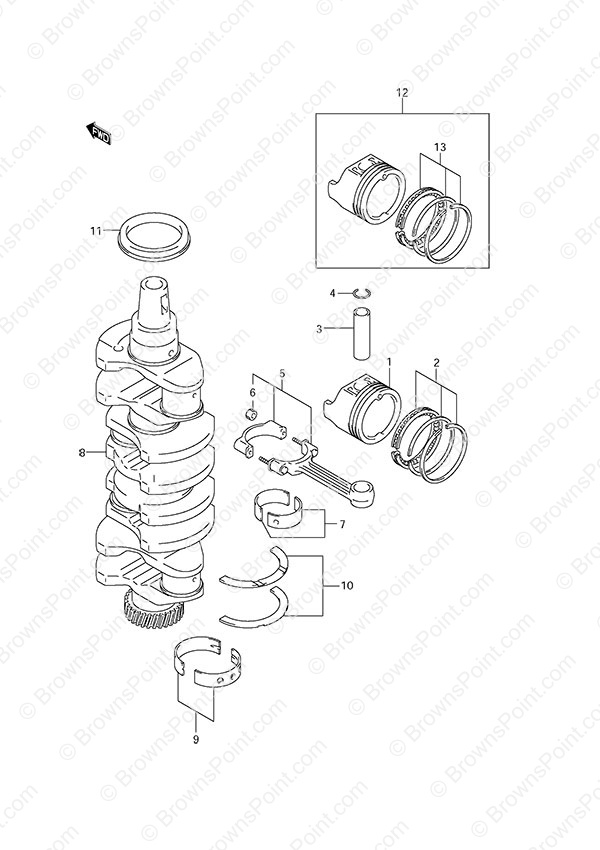

Fig. 4 - Crankshaft
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 12111-92J00 Piston
SKU: 12111-92J00 Weight: 1.000000 Brand: Price: $ 80.47 |
Piston | 4 | $ 80.47 | ||
| 2 | 12140-92J10 Piston Ring Set
SKU: 12140-92J10 Weight: 0.250000 Brand: Price: $ 48.67 |
Piston Ring Set | 4 | $ 48.67 | ||
| 3 | 12151-86FA0 Piston Pin
SKU: 12151-86FA0 Weight: 0.200000 Brand: Price: $ 11.45 |
Piston Pin | 4 | $ 11.45 | ||
| 4 | 09381-21002 Piston Circlip
SKU: 09381-21002 Weight: 0.060000 Brand: Price: $ 1.47 |
Piston Circlip | 8 | $ 1.47 | ||
| 5 | 12160-92J00 Connecting Rod Assembly
SKU: 12160-92J00 Weight: 0.800000 Brand: Price: $ 146.05 |
Connecting Rod Assembly | 4 | $ 146.05 | ||
| 6 | 09159-08121 Nut
SKU: 09159-08121 Weight: 0.060000 Brand: Price: $ 3.00 |
Nut | 8 | $ 3.00 | ||
| 7-1 | 12100-92841-0A0 Conn Rod Bearing Set (Green)
SKU: 12100-92841-0A0 Weight: 0.080000 Brand: Price: $ 24.55 |
Conn Rod Bearing Set (Green) | 4 | $ 24.55 | ||
| 8 | 12220-99L00 CRANKSHAFT COMP
SKU: 12220-99L00 Weight: 0.000000 Brand: Price: $ 1,461.30 |
CRANKSHAFT COMP | 1 | $ 1,461.30 | ||
| 7-2 | 12100-92840-025 Conn Rod Bearing Set (US:0.25)
SKU: 12100-92840-025 Weight: 0.080000 Brand: Price: $ 25.02 |
Conn Rod Bearing Set (US:0.25) | 4 | $ 25.02 | Optional | |
| 9-1 | 12340-85FB3-0A0 Crankshaft Bearing Set (Green)
SKU: 12340-85FB3-0A0 Weight: 0.140000 Brand: Price: $ 36.42 |
Crankshaft Bearing Set (Green) | 5 | $ 36.42 | ||
| 9-2 | 12340-85FB3-0B0 Crankshaft Bearing Set (Black)
SKU: 12340-85FB3-0B0 Weight: 0.140000 Brand: Price: $ 36.42 |
Crankshaft Bearing Set (Black) | 5 | $ 36.42 | ||
| 9-3 | 12340-85FB3-0C0 Crankshaft Bearing Set (NON)
SKU: 12340-85FB3-0C0 Weight: 0.120000 Brand: Price: $ 36.42 |
Crankshaft Bearing Set (NON) | 5 | $ 36.42 | ||
| 9-4 | 12340-85FB3-0D0 Crankshaft Bearing Set (Yellow)
SKU: 12340-85FB3-0D0 Weight: 0.100000 Brand: Price: $ 36.42 |
Crankshaft Bearing Set (Yellow) | 5 | $ 36.42 | ||
| 9-5 | 12340-85FB3-0E0 Crankshaft Bearing Set (Blue)
SKU: 12340-85FB3-0E0 Weight: 0.125000 Brand: Price: $ 36.02 |
Crankshaft Bearing Set (Blue) | 5 | $ 36.02 | ||
| 9-6 | 12300-85854-0AA Crankshaft Bearing Set (Red/Green) (US:0.25)
SKU: 12300-85854-0AA Weight: 0.125000 Brand: Price: $ 36.02 |
Crankshaft Bearing Set (Red/Green) (US:0.25) | 5 | $ 36.02 | Optional | |
| 9-7 | 12300-85854-0BA Crankshaft Bearing Set (Red/Black) (US:0.25)
SKU: 12300-85854-0BA Weight: 0.140000 Brand: Price: $ 37.80 |
Crankshaft Bearing Set (Red/Black) (US:0.25) | 5 | $ 37.80 | Optional | |
| 9-8 | 12300-85854-0CA Crankshaft Bearing Set (Red) (US:0.25)
SKU: 12300-85854-0CA Weight: 0.150000 Brand: Price: $ 37.80 |
Crankshaft Bearing Set (Red) (US:0.25) | 5 | $ 37.80 | Optional | |
| 9-9 | 12300-85854-0DA Crankshaft Bearing Set (Red/Yellow) (US:0.25)(NLA)
SKU: 12300-85854-0DA Weight: 0.140000 Brand: Price: $ 28.44 |
Crankshaft Bearing Set (Red/Yellow) (US:0.25)(NLA) | 5 | $ 28.44 | Optional | |
| 9-10 | 12300-85854-0EA Crankshaft Bearing Set (Red/Blue) (US:0.25) (NLA)
SKU: 12300-85854-0EA Weight: 0.100000 Brand: Price: $ 28.44 |
Crankshaft Bearing Set (Red/Blue) (US:0.25) (NLA) | 5 | $ 28.44 | Optional | |
| 10-1 | 12300-85830 Crank Thrust Bearing Set
SKU: 12300-85830 Weight: 0.080000 Brand: Price: $ 24.43 |
Crank Thrust Bearing Set | 1 | $ 24.43 | ||
| 10-2 | 12300-85830-012 Crank Thrust Bearing Set (OS:0.12)
SKU: 12300-85830-012 Weight: 0.250000 Brand: Price: $ 26.22 |
Crank Thrust Bearing Set (OS:0.12) | 1 | $ 26.22 | Optional | |
| 11 | 09283-52004 Oil Seal (52x70x10)
SKU: 09283-52004 Weight: 0.060000 Brand: Price: $ 17.30 |
Oil Seal (52x70x10) | 1 | $ 17.30 | ||
| 12 | 12100-92J01-050 Piston & Ring Set (OS:0.50)
SKU: 12100-92J01-050 Weight: 0.850000 Brand: Price: $ 124.19 |
Piston & Ring Set (OS:0.50) | 4 | $ 124.19 | Optional | |
| 13 | 12140-92J10-050 Piston Ring Set (OS:0.50)
SKU: 12140-92J10-050 Weight: 0.250000 Brand: Price: $ 63.91 |
Piston Ring Set (OS:0.50) | 4 | $ 63.91 | Optional |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
