Suzuki DF 140A Parts Listings
S/N 14002F-310001 to 14002F-31XXXX
S/N 14002Z-310001 to 14002Z-31XXXX

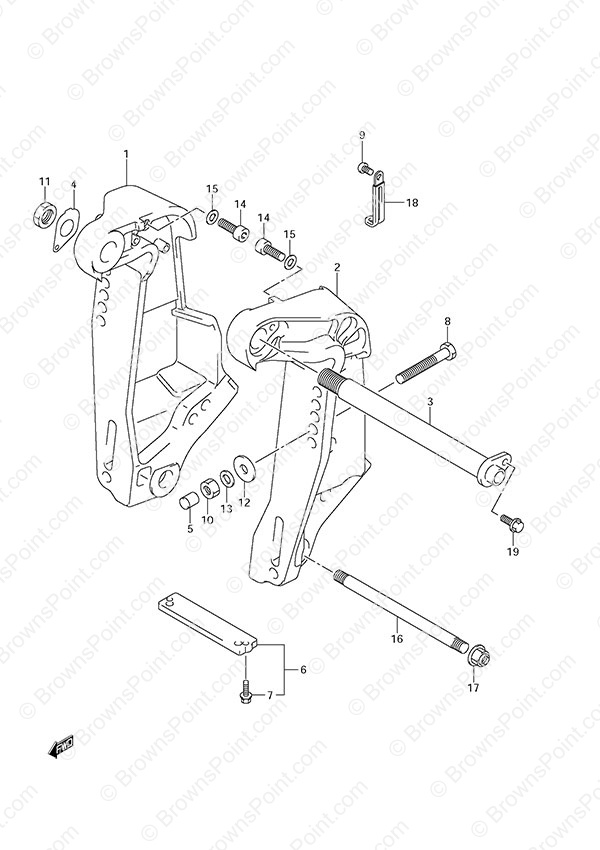

Fig. 32 - Clamp Bracket
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 41111-92J03-0EP Starboard Clamp Bracket
SKU: 41111-92J03-0EP Weight: 10.000000 Brand: Price: $ 458.25 |
Starboard Clamp Bracket | 1 | $ 458.25 | ||
| 2 | 41121-92J20-0EP Port Clamp Bracket (NLA)
SKU: 41121-92J20-0EP Weight: 10.000000 Brand: Price: $ 346.97 |
Port Clamp Bracket (NLA) | 1 | $ 346.97 | ||
| 3 | 41130-92J30 Clamp Bracket Shaft
SKU: 41130-92J30 Weight: 5.000000 Brand: Price: $ 197.03 |
Clamp Bracket Shaft | 1 | $ 197.03 | ||
| 4 | 41135-92J00 Clamp Bracket Shaft Washer
SKU: 41135-92J00 Weight: 0.060000 Brand: Price: $ 7.01 |
Clamp Bracket Shaft Washer | 1 | $ 7.01 | ||
| 5 | 41153-94500 Transom Bolt Cap
SKU: 41153-94500 Weight: 0.060000 Brand: Price: $ 2.96 |
Transom Bolt Cap | 4 | $ 2.96 | ||
| 6 | 55320-94900 Protection Anode Set
SKU: 55320-94900 Weight: 0.500000 Brand: Price: $ 43.30 |
Protection Anode Set | 1 | $ 43.30 | ||
| 7 | 09116-06121 Bolt (6x25)
SKU: 09116-06121 Weight: 0.060000 Brand: Price: $ 2.72 |
Bolt (6x25) | 2 | $ 2.72 | ||
| 8 | 09100-12090 Transom Bolt (12x150)
SKU: 09100-12090 Weight: 0.250000 Brand: Price: $ 34.60 |
Transom Bolt (12x150) | 4 | $ 34.60 | ||
| 9 | 09125-06063 Screw (6x10)
SKU: 09125-06063 Weight: 0.060000 Brand: Price: $ 1.96 |
Screw (6x10) | 1 | $ 1.96 | ||
| 10 | 09159-12014 Nut (12x17)
SKU: 09159-12014 Weight: 0.060000 Brand: Price: $ 5.04 |
Nut (12x17) | 4 | $ 5.04 | ||
| 11 | 09159-22006 Nut
SKU: 09159-22006 Weight: 0.250000 Brand: Price: $ 25.75 |
Nut | 1 | $ 25.75 | ||
| 12 | 09160-12044 Washer (12.5x35x3.2)
SKU: 09160-12044 Weight: 0.060000 Brand: Price: $ 3.49 |
Washer (12.5x35x3.2) | 4 | $ 3.49 | ||
| 13 | 09160-12110 Washer (12.5x22x3.0)
SKU: 09160-12110 Weight: 0.060000 Brand: Price: $ 3.79 |
Washer (12.5x22x3.0) | 4 | $ 3.79 | ||
| 14 | 09106-10065 Bolt (10x20)
SKU: 09106-10065 Weight: 0.050000 Brand: Price: $ 6.19 |
Bolt (10x20) | 2 | $ 6.19 | ||
| 15 | 09160-10082 Washer (10.5x19x2.0)
SKU: 09160-10082 Weight: 0.060000 Brand: Price: $ 1.63 |
Washer (10.5x19x2.0) | 2 | $ 1.63 | ||
| 16 | 45421-87D03 Tilt Lock Pin
SKU: 45421-87D03 Weight: 0.750000 Brand: Price: $ 23.88 |
Tilt Lock Pin | 1 | $ 23.88 | ||
| 17 | 09159-14020 Nut (14mm)
SKU: 09159-14020 Weight: 0.060000 Brand: Price: $ 4.73 |
Nut (14mm) | 2 | $ 4.73 | ||
| 18 | 29404-93J11 Clamp (L:65)
SKU: 29404-93J11 Weight: 0.060000 Brand: Price: $ 1.57 |
Clamp (L:65) | 1 | $ 1.57 | ||
| 19 | 09116-08137 Bolt (8x22)
SKU: 09116-08137 Weight: 0.060000 Brand: Price: $ 7.44 |
Bolt (8x22) | 1 | $ 7.44 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
