Suzuki DF 140A Parts Listings
S/N 14002F-310001 to 14002F-31XXXX
S/N 14002Z-310001 to 14002Z-31XXXX

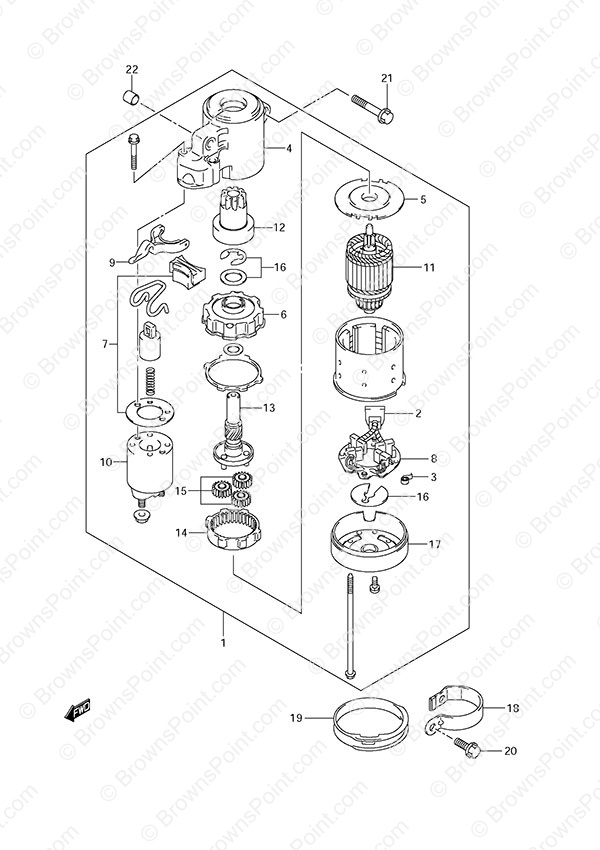

Fig. 25 - Starting Motor
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 31100-90J01 Starter Motor Assembly
SKU: 31100-90J01 Weight: 7.000000 Brand: Price: $ 885.01 |
Starter Motor Assembly | 1 | $ 885.01 | ||
| 2 | 31131-90J01 Brush Set (+)
SKU: 31131-90J01 Weight: 0.100000 Brand: Price: $ 40.03 |
Brush Set (+) | 1 | $ 40.03 | ||
| 3 | 31135-90J00 Spring
SKU: 31135-90J00 Weight: 0.060000 Brand: Price: $ 8.46 |
Spring | 4 | $ 8.46 | ||
| 4 | 31151-90J00 Gear Case
SKU: 31151-90J00 Weight: 1.010000 Brand: Price: $ 242.98 |
Gear Case | 1 | $ 242.98 | ||
| 5 | 31152-90J00 Center Plate (NLA)
SKU: 31152-90J00 Weight: 0.100000 Brand: Price: $ 16.98 |
Center Plate (NLA) | 1 | $ 16.98 | ||
| 6 | 31153-90J00 Planet Gear Bracket (NLA)
SKU: 31153-90J00 Weight: 0.100000 Brand: Price: $ 29.89 |
Planet Gear Bracket (NLA) | 1 | $ 29.89 | ||
| 7 | 31171-90J00 Dust Cover Kit
SKU: 31171-90J00 Weight: 0.100000 Brand: Price: $ 18.24 |
Dust Cover Kit | 1 | $ 18.24 | ||
| 8 | 31173-90J02 Brush Holder
SKU: 31173-90J02 Weight: 0.250000 Brand: Price: $ 123.62 |
Brush Holder | 1 | $ 123.62 | ||
| 9 | 31191-90J00 Shift Lever (NLA)
SKU: 31191-90J00 Weight: 0.100000 Brand: Price: $ 15.49 |
Shift Lever (NLA) | 1 | $ 15.49 | ||
| 10 | 31220-90J00 Magnet Switch
SKU: 31220-90J00 Weight: 1.440000 Brand: Price: $ 273.48 |
Magnet Switch | 1 | $ 273.48 | ||
| 11 | 31310-90J00 Armature
SKU: 31310-90J00 Weight: 5.000000 Brand: Price: $ 574.14 |
Armature | 1 | $ 574.14 | ||
| 12 | 31320-90J00 Pinion Assembly
SKU: 31320-90J00 Weight: 0.100000 Brand: Price: $ 254.49 |
Pinion Assembly | 1 | $ 254.49 | ||
| 13 | 31341-90J00 Pinion Shaft (NLA)
SKU: 31341-90J00 Weight: 0.100000 Brand: Price: $ 95.56 |
Pinion Shaft (NLA) | 1 | $ 95.56 | ||
| 14 | 31343-90J00 Internal Gear (NLA)
SKU: 31343-90J00 Weight: 0.100000 Brand: Price: $ 63.52 |
Internal Gear (NLA) | 1 | $ 63.52 | ||
| 15 | 31344-90J00 Planetary Gear (NLA)
SKU: 31344-90J00 Weight: 0.100000 Brand: Price: $ 27.77 |
Planetary Gear (NLA) | 3 | $ 27.77 | ||
| 16 | 31360-90J00 Washer Set (NLA)
SKU: 31360-90J00 Weight: 0.100000 Brand: Price: $ 11.29 |
Washer Set (NLA) | 1 | $ 11.29 | ||
| 17 | 31170-90J00 Rear Cover Assembly
SKU: 31170-90J00 Weight: 0.250000 Brand: Price: $ 43.52 |
Rear Cover Assembly | 1 | $ 43.52 | ||
| 18 | 31912-90J00 Starting Motor Band
SKU: 31912-90J00 Weight: 0.100000 Brand: Price: $ 8.17 |
Starting Motor Band | 1 | $ 8.17 | ||
| 19 | 31918-90J11 DAMPER,LWR
SKU: 31918-90J11 Weight: 0.000000 Brand: Price: $ 6.43 |
DAMPER,LWR | 1 | $ 6.43 | ||
| 20 | 01550-08207 BOLT
SKU: 01550-08207 Weight: 0.060000 Brand: Price: $ 2.74 |
BOLT | 2 | $ 2.74 | ||
| 21 | 01550-10507 BOLT
SKU: 01550-10507 Weight: 0.060000 Brand: Price: $ 4.11 |
BOLT | 2 | $ 4.11 | ||
| 22 | 04211-13149 PIN
SKU: 04211-13149 Weight: 0.060000 Brand: Price: $ 2.29 |
PIN | 2 | $ 2.29 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
