Suzuki DF 200 Parts Listings - 2012
S/N 20002F-210001 to 20002F-21XXXX
S/N 20002Z-210001 to 20002Z-21XXXX

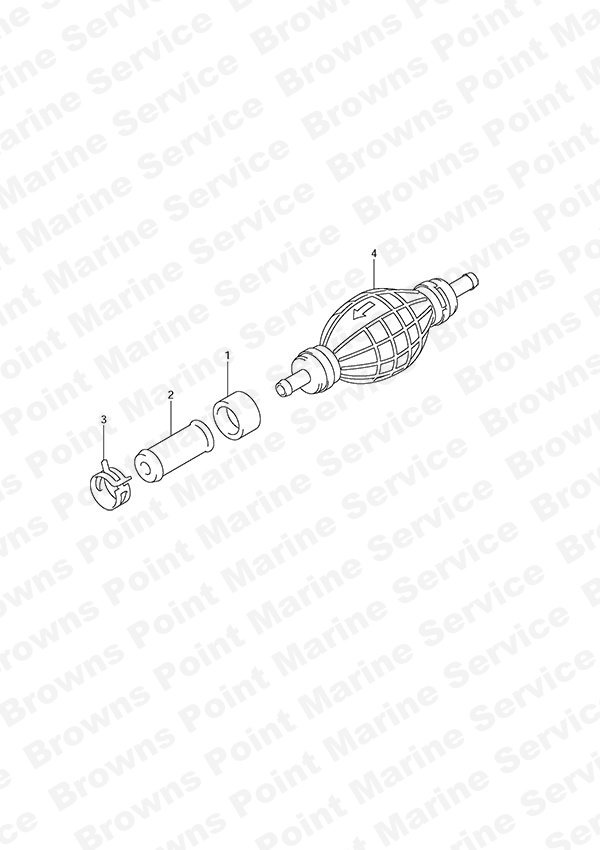

Fig. 162 - Fuel Hose

Ref# Part Number Description Req Qty* Price Each Order Remarks
1 09251-09008 Cap 1 $ 3.56
2 09367-10001 Hose Joint 1 $ 5.23
3 09401-14409 Clip 4 $ 1.58
4 65770-93J04 Squeeze Pump 1 $ 139.56

Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each. The information on this page is specific to the model and year and/or serial number shown in the header above.

Please verify your model and serial number before placing your order.
