Suzuki DF 200 Parts Listings - 2012
S/N 20002F-210001 to 20002F-21XXXX

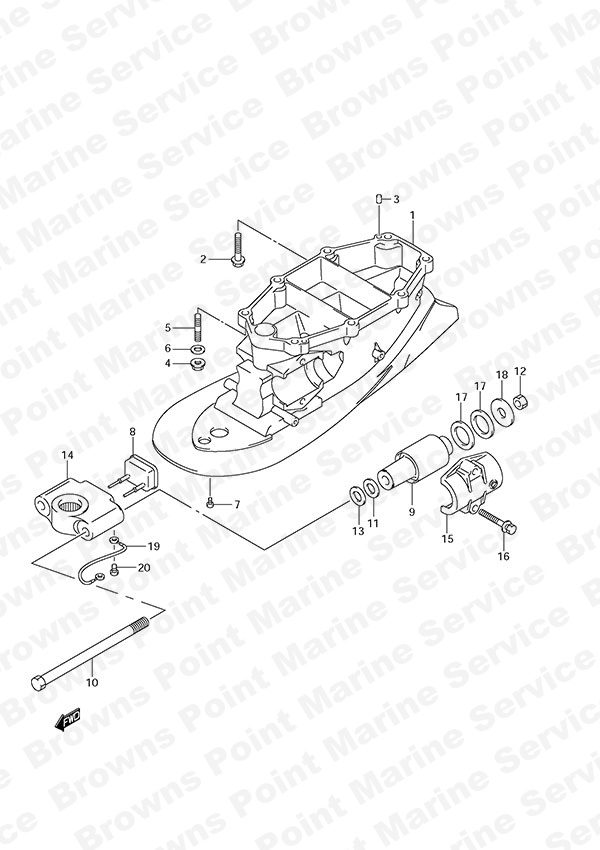

Fig. 138 - Drive Shaft Housing (Type: L)

Ref# Part Number Description Req Qty* Price Each Order Remarks
1 52111-93J20-0EP Drive Shaft Housing 1 $ 1,148.30
2 09116-10176 Bolt (10x44) 6 $ 6.81
3 09202-08006 Knock Pin (8x12) 2 $ 2.77
4 09140-10031 Nut (10mm) 2 $ 2.04
5 09108-10150 Stud Bolt (NLA) 2 $ 7.03

Not Available

6 09160-10141 Washer (10.5x19x2) 2 $ 3.41
7 09125-06063 Screw (6x10) 1 $ 1.96
8 54151-93J00 Lower Thrust Mount (NLA) 1 $ 7.09

Not Available

9 54160-93J01 Lower Mount 2 $ 118.86
10 54112-93J00 Upper Mount Bolt 2 $ 73.85
11 09160-16050 Lower Mount Washer 2 $ 2.65
12 29159-93J00 Upper Mount Bolt Nut 2 $ 13.25
13 09160-16050 Lower Mount Washer 2 $ 2.65
14 54211-93J00-0EP Lower Mount Bracket 1 $ 181.09
15 54221-93J00 Lower Mount Cover (NLA) 2 $ 44.09
16 09116-10175 Bolt (10x50) 4 $ 6.90
17 54165-98J01 Lower Thrust Reverse Stopper 4 $ 7.77
18 09160-14066 Reverse Stopper Lower Washer 2 $ 9.08
19 36894-87D00 Wire Lead (L:195) 1 $ 12.66
Mount Bracket to Housing
20 09125-06063 Screw (6x10) 1 $ 1.96

Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each. The information on this page is specific to the model and year and/or serial number shown in the header above.

Please verify your model and serial number before placing your order.
