Suzuki DF 200 Parts Listings - 2012
S/N 20002F-210001 to 20002F-21XXXX
S/N 20002Z-210001 to 20002Z-21XXXX

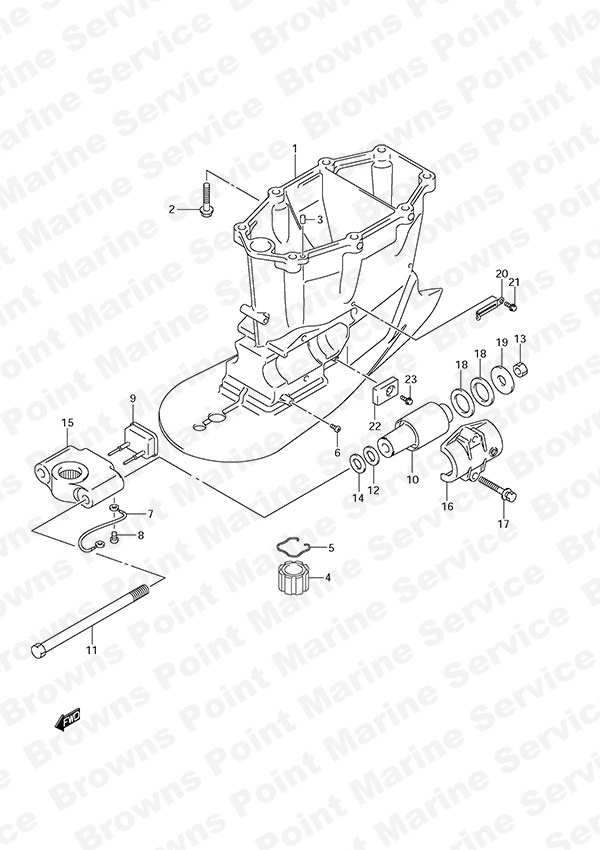

Fig. 132 - Drive Shaft Housing
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 52111-93J11-0EP Drive Shaft Housing
SKU: 52111-93J11-0EP Weight: 20.000000 Brand: Price: $ 1,148.30 |
Drive Shaft Housing | 1 | $ 1,148.30 | ||
| 2 | 09116-10176 Bolt (10x44)
SKU: 09116-10176 Weight: 0.080000 Brand: Price: $ 6.81 |
Bolt (10x44) | 8 | $ 6.81 | ||
| 3 | 09202-08006 Knock Pin (8x12)
SKU: 09202-08006 Weight: 0.060000 Brand: Price: $ 2.77 |
Knock Pin (8x12) | 2 | $ 2.77 | ||
| 4 | 57130-87D10 Drive Shaft Bushing
SKU: 57130-87D10 Weight: 0.150000 Brand: Price: $ 38.20 |
Drive Shaft Bushing | 1 | $ 38.20 | ||
| 5 | 09387-39002 RING,DRIVE SHAF
SKU: 09387-39002 Weight: 0.000000 Brand: Price: $ 6.45 |
RING,DRIVE SHAF | 1 | $ 6.45 | ||
| 6 | 09125-06053 Screw (6x16)
SKU: 09125-06053 Weight: 0.060000 Brand: Price: $ 2.20 |
Screw (6x16) | 1 | $ 2.20 | ||
| 7 | 36894-87D00 Wire Lead (L:195)
SKU: 36894-87D00 Weight: 0.060000 Brand: Price: $ 12.66 |
Wire Lead (L:195) | 1 | $ 12.66 | Mount Bracket to Housing | |
| 8 | 09125-06063 Screw (6x10)
SKU: 09125-06063 Weight: 0.060000 Brand: Price: $ 1.96 |
Screw (6x10) | 1 | $ 1.96 | ||
| 9 | 54151-93J00 Lower Thrust Mount (NLA)
SKU: 54151-93J00 Weight: 0.100000 Brand: Price: $ 7.09 |
Lower Thrust Mount (NLA) | 1 | $ 7.09 | ||
| 10 | 54160-93J01 Lower Mount
SKU: 54160-93J01 Weight: 0.500000 Brand: Price: $ 118.86 |
Lower Mount | 2 | $ 118.86 | ||
| 11 | 54112-93J00 Upper Mount Bolt
SKU: 54112-93J00 Weight: 0.250000 Brand: Price: $ 73.85 |
Upper Mount Bolt | 2 | $ 73.85 | ||
| 12 | 09160-16050 Lower Mount Washer
SKU: 09160-16050 Weight: 0.125000 Brand: Price: $ 2.65 |
Lower Mount Washer | 2 | $ 2.65 | ||
| 13 | 29159-93J00 Upper Mount Bolt Nut
SKU: 29159-93J00 Weight: 0.060000 Brand: Price: $ 13.25 |
Upper Mount Bolt Nut | 2 | $ 13.25 | ||
| 14 | 09160-16050 Lower Mount Washer
SKU: 09160-16050 Weight: 0.125000 Brand: Price: $ 2.65 |
Lower Mount Washer | 2 | $ 2.65 | ||
| 15 | 54211-93J00-0EP Lower Mount Bracket
SKU: 54211-93J00-0EP Weight: 1.000000 Brand: Price: $ 181.09 |
Lower Mount Bracket | 1 | $ 181.09 | ||
| 16 | 54221-93J00 Lower Mount Cover (NLA)
SKU: 54221-93J00 Weight: 0.500000 Brand: Price: $ 44.09 |
Lower Mount Cover (NLA) | 2 | $ 44.09 | ||
| 17 | 09116-10175 Bolt (10x50)
SKU: 09116-10175 Weight: 0.125000 Brand: Price: $ 6.90 |
Bolt (10x50) | 4 | $ 6.90 | ||
| 18 | 54165-98J01 Lower Thrust Reverse Stopper
SKU: 54165-98J01 Weight: 0.125000 Brand: Price: $ 7.77 |
Lower Thrust Reverse Stopper | 4 | $ 7.77 | ||
| 19 | 09160-14066 Reverse Stopper Lower Washer
SKU: 09160-14066 Weight: 0.125000 Brand: Price: $ 9.08 |
Reverse Stopper Lower Washer | 2 | $ 9.08 | ||
| 20 | 29404-93J11 Clamp (L:65)
SKU: 29404-93J11 Weight: 0.060000 Brand: Price: $ 1.57 |
Clamp (L:65) | 1 | $ 1.57 | ||
| 21 | 29103-93J00 Bolt (6x12)
SKU: 29103-93J00 Weight: 0.060000 Brand: Price: $ 2.05 |
Bolt (6x12) | 1 | $ 2.05 | ||
| 22 | 55321-93J01 Protection Anode
SKU: 55321-93J01 Weight: 0.125000 Brand: Price: $ 15.13 |
Protection Anode | 1 | $ 15.13 | ||
| 23 | 09116-06094 Bolt (6x15)
SKU: 09116-06094 Weight: 0.060000 Brand: Price: $ 2.28 |
Bolt (6x15) | 1 | $ 2.28 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
