Suzuki DF 200 Parts Listings - 2012
S/N 20002F-210001 to 20002F-21XXXX
S/N 20002Z-210001 to 20002Z-21XXXX

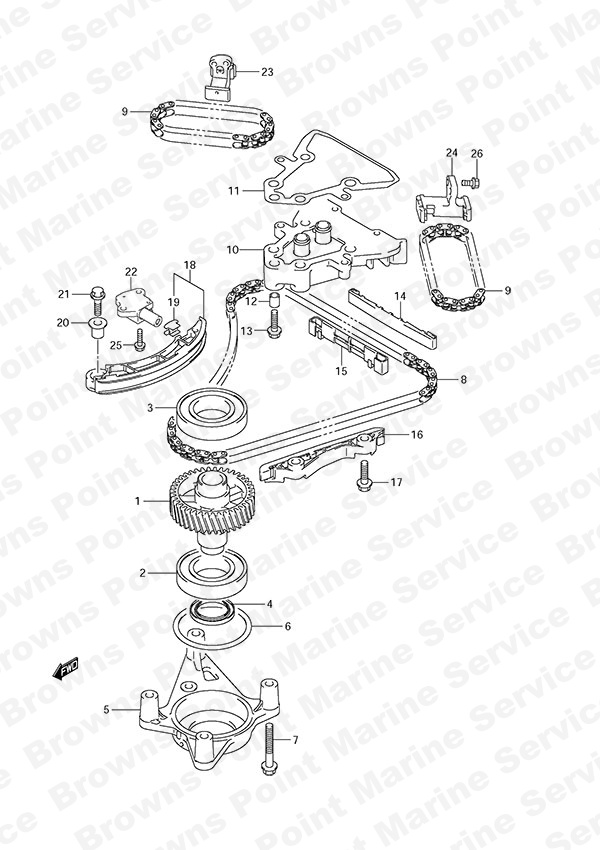

Fig. 5 - Timing Chain
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 12730-93J02 Driven Gear
SKU: 12730-93J02 Weight: 4.040000 Brand: Price: $ 268.06 |
Driven Gear | 1 | $ 268.06 | ||
| 2 | 09262-40021 Bearing (40x80x18)
SKU: 09262-40021 Weight: 1.000000 Brand: Price: $ 105.07 |
Bearing (40x80x18) | 1 | $ 105.07 | Lower | |
| 3 | 08110-62080 BEARING,UPPER
SKU: 08110-62080 Weight: 1.000000 Brand: Price: $ 40.21 |
BEARING,UPPER | 1 | $ 40.21 | Upper | |
| 4 | 09283-32044 Oil Seal (32x47x6)
SKU: 09283-32044 Weight: 0.060000 Brand: Price: $ 19.24 |
Oil Seal (32x47x6) | 1 | $ 19.24 | ||
| 5 | 12734-93J00 Driven Gear Holder
SKU: 12734-93J00 Weight: 2.500000 Brand: Price: $ 81.61 |
Driven Gear Holder | 1 | $ 81.61 | ||
| 6 | 09280-70012 O-Ring
SKU: 09280-70012 Weight: 0.060000 Brand: Price: $ 18.39 |
O-Ring | 1 | $ 18.39 | ||
| 7 | 01550-0855A BOLT,EGR VALVE
SKU: 01550-0855A Weight: 0.060000 Brand: Price: $ 3.11 |
BOLT,EGR VALVE | 4 | $ 3.11 | ||
| 8 | 12761-93J00 1st Timing Chain
SKU: 12761-93J00 Weight: 1.010000 Brand: Price: $ 120.83 |
1st Timing Chain | 1 | $ 120.83 | ||
| 9 | 12762-93J00 2nd Timing Chain
SKU: 12762-93J00 Weight: 0.500000 Brand: Price: $ 42.37 |
2nd Timing Chain | 2 | $ 42.37 | ||
| 10 | 12770-93J00 Timing Chain Guide Base
SKU: 12770-93J00 Weight: 0.100000 Brand: Price: $ 107.90 |
Timing Chain Guide Base | 1 | $ 107.90 | ||
| 11 | 12778-93J00 Guide Base Gasket
SKU: 12778-93J00 Weight: 0.080000 Brand: Price: $ 14.10 |
Guide Base Gasket | 1 | $ 14.10 | ||
| 12 | 04211-13149 PIN
SKU: 04211-13149 Weight: 0.060000 Brand: Price: $ 2.29 |
PIN | 2 | $ 2.29 | ||
| 13 | 01550-0830A BOLT
SKU: 01550-0830A Weight: 0.060000 Brand: Price: $ 3.09 |
BOLT | 2 | $ 3.09 | ||
| 14 | 12771-93J00 Timing Chain Upper Shoe
SKU: 12771-93J00 Weight: 0.125000 Brand: Price: $ 23.06 |
Timing Chain Upper Shoe | 1 | $ 23.06 | ||
| 15 | 12775-93J00 Timing Chain Lower Shoe
SKU: 12775-93J00 Weight: 0.100000 Brand: Price: $ 23.06 |
Timing Chain Lower Shoe | 1 | $ 23.06 | ||
| 16 | 12772-93J00 Timing Chain Guide
SKU: 12772-93J00 Weight: 0.100000 Brand: Price: $ 69.14 |
Timing Chain Guide | 1 | $ 69.14 | ||
| 17 | 01550-0830A BOLT
SKU: 01550-0830A Weight: 0.060000 Brand: Price: $ 3.09 |
BOLT | 2 | $ 3.09 | ||
| 18 | 12810-93J00 Timing Chain Tensioner Assembly
SKU: 12810-93J00 Weight: 0.100000 Brand: Price: $ 71.83 |
Timing Chain Tensioner Assembly | 1 | $ 71.83 | ||
| 19 | 12813-73G00 Timing Chain Tensioner Pad
SKU: 12813-73G00 Weight: 0.100000 Brand: Price: $ 4.09 |
Timing Chain Tensioner Pad | 1 | $ 4.09 | ||
| 20 | 12812-90J00 Timing Chain Tensioner Spacer
SKU: 12812-90J00 Weight: 0.100000 Brand: Price: $ 7.10 |
Timing Chain Tensioner Spacer | 1 | $ 7.10 | ||
| 21 | 01550-0830A BOLT
SKU: 01550-0830A Weight: 0.060000 Brand: Price: $ 3.09 |
BOLT | 1 | $ 3.09 | ||
| 22 | 12831-93J01 Tensioner Adjuster Assembly
SKU: 12831-93J01 Weight: 0.250000 Brand: Price: $ 100.53 |
Tensioner Adjuster Assembly | 1 | $ 100.53 | ||
| 23 | 12832-93J00 Starboard Tensioner Assembly
SKU: 12832-93J00 Weight: 0.500000 Brand: Price: $ 140.76 |
Starboard Tensioner Assembly | 1 | $ 140.76 | ||
| 24 | 12833-93J00 Port Tensioner Assembly
SKU: 12833-93J00 Weight: 0.500000 Brand: Price: $ 145.52 |
Port Tensioner Assembly | 1 | $ 145.52 | ||
| 25 | 01550-0620A BOLT
SKU: 01550-0620A Weight: 0.060000 Brand: Price: $ 1.97 |
BOLT | 2 | $ 1.97 | ||
| 26 | 01550-0620A BOLT
SKU: 01550-0620A Weight: 0.060000 Brand: Price: $ 1.97 |
BOLT | 4 | $ 1.97 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
