Suzuki DF 9.9A Parts Listings - 2013
S/N 00994F-310001 to 00994F-31XXXX

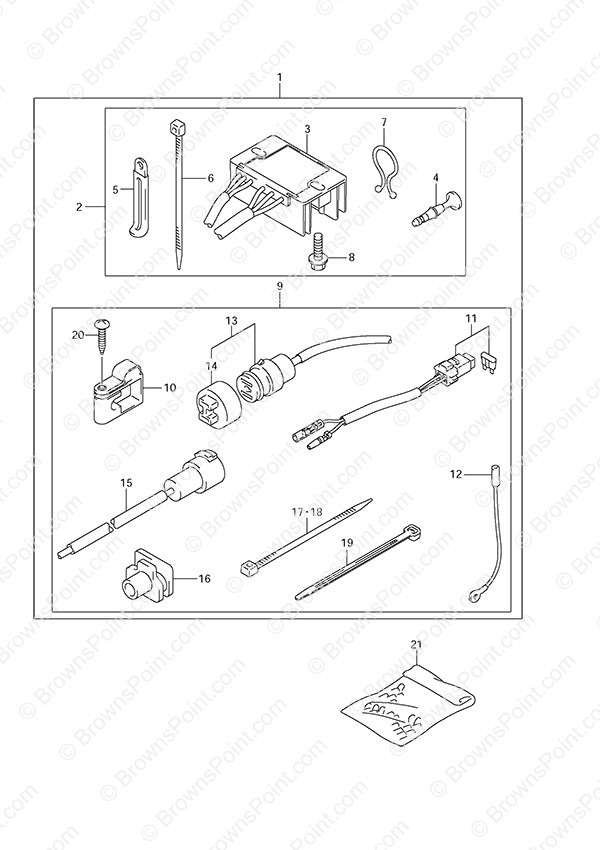

Fig. 78 - Opt: Electrical w/Manual Starter
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 32000-99J00 Battery Charging Kit
SKU: 32000-99J00 Weight: 2.000000 Brand: Price: $ 251.79 |
Battery Charging Kit | 1 | $ 251.79 | ||
| 2 | 32801-95J01 Rectifier/Regulator Set (NLA)
SKU: 32801-95J01 Weight: 1.000000 Brand: Price: $ 167.36 |
Rectifier/Regulator Set (NLA) | 1 | $ 167.36 | ||
| 3 | 32800-95J01 Rectifier & Regulator Assembly
SKU: 32800-95J01 Weight: 0.100000 Brand: Price: $ 222.23 |
Rectifier & Regulator Assembly | 1 | $ 222.23 | ||
| 4 | 36615-96300 Resin Terminal
SKU: 36615-96300 Weight: 0.060000 Brand: Price: $ 1.31 |
Resin Terminal | 2 | $ 1.31 | ||
| 5 | 29404-93J11 Clamp (L:65)
SKU: 29404-93J11 Weight: 0.060000 Brand: Price: $ 1.57 |
Clamp (L:65) | 1 | $ 1.57 | ||
| 6 | 09407-10404 Clamp (L:100)
SKU: 09407-10404 Weight: 0.060000 Brand: Price: $ 2.52 |
Clamp (L:100) | 1 | $ 2.52 | ||
| 7 | 09408-00024 Clamp
SKU: 09408-00024 Weight: 0.060000 Brand: Price: $ 1.52 |
Clamp | 1 | $ 1.52 | ||
| 8 | 01550-06257 BOLT
SKU: 01550-06257 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 2 | $ 2.33 | ||
| 9 | 39600-94J01 Receptacle Set
SKU: 39600-94J01 Weight: 0.100000 Brand: Price: $ 100.13 |
Receptacle Set | 1 | $ 100.13 | ||
| 10 | 33816-94J01 Cable Clamp
SKU: 33816-94J01 Weight: 0.100000 Brand: Price: $ 4.80 |
Cable Clamp | 1 | $ 4.80 | ||
| 11 | 36740-94J00 Fuse Case Assembly (NLA)
SKU: 36740-94J00 Weight: 0.100000 Brand: Price: $ 36.42 |
Fuse Case Assembly (NLA) | 1 | $ 36.42 | ||
| 12 | 37801-98300 Lead (NLA)
SKU: 37801-98300 Weight: 0.100000 Brand: Price: $ 3.65 |
Lead (NLA) | 1 | $ 3.65 | ||
| 13 | 39601-95D00 Lighting Receptacle Assembly
SKU: 39601-95D00 Weight: 0.250000 Brand: Price: $ 39.79 |
Lighting Receptacle Assembly | 1 | $ 39.79 | ||
| 14 | 36634-93910 Connector Cap
SKU: 36634-93910 Weight: 0.060000 Brand: Price: $ 4.66 |
Connector Cap | 1 | $ 4.66 | ||
| 15 | 39602-93900 Lamp Cord Plug Assembly
SKU: 39602-93900 Weight: 0.500000 Brand: Price: $ 41.23 |
Lamp Cord Plug Assembly | 1 | $ 41.23 | ||
| 16 | 39603-94400 Receptacle Grommet (NLA)
SKU: 39603-94400 Weight: 0.100000 Brand: Price: $ 6.73 |
Receptacle Grommet (NLA) | 1 | $ 6.73 | ||
| 17 | 09407-10404 Clamp (L:100)
SKU: 09407-10404 Weight: 0.060000 Brand: Price: $ 2.52 |
Clamp (L:100) | 1 | $ 2.52 | ||
| 18 | 09407-25402 Clamp (L:248)
SKU: 09407-25402 Weight: 0.100000 Brand: Price: $ 4.73 |
Clamp (L:248) | 1 | $ 4.73 | ||
| 19 | 09407-14403 Clamp (L:125)
SKU: 09407-14403 Weight: 0.060000 Brand: Price: $ 2.27 |
Clamp (L:125) | 2 | $ 2.27 | ||
| 20 | 03241-0625A SCREW
SKU: 03241-0625A Weight: 0.100000 Brand: Price: $ 2.08 |
SCREW | 1 | $ 2.08 | ||
| 21 | 36990-87D00 Terminal & Sleeve Set
SKU: 36990-87D00 Weight: 0.100000 Brand: Price: $ 18.47 |
Terminal & Sleeve Set | 1 | $ 18.47 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
