Suzuki DF 9.9A Parts Listings - 2013
S/N 00994F-310001 to 00994F-31XXXX

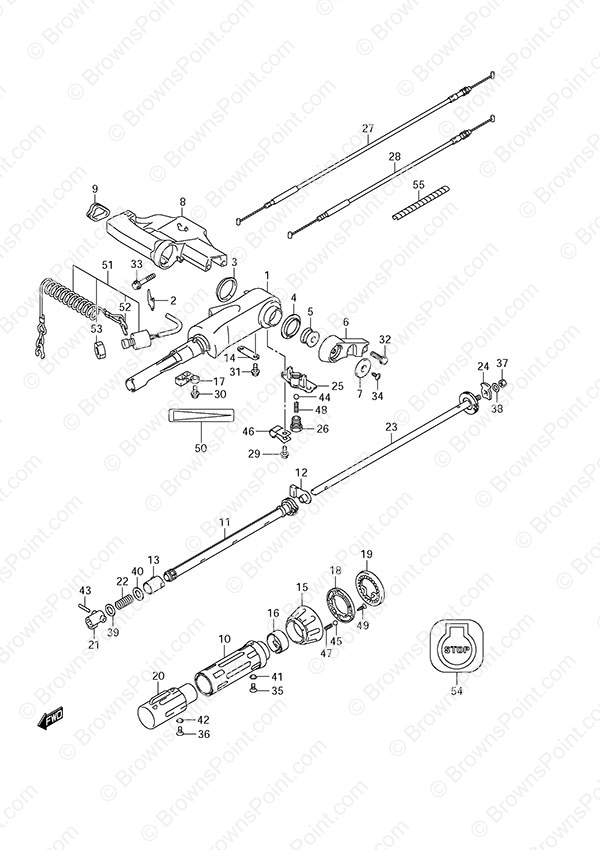

Fig. 70 - Tiller Handle
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 63111-99J11-0EP Tiller Handle
SKU: 63111-99J11-0EP Weight: 2.000000 Brand: Price: $ 342.26 |
Tiller Handle | 1 | $ 342.26 | ||
| 2 | 63114-99J01 Warning Indicator Plate
SKU: 63114-99J01 Weight: 0.250000 Brand: Price: $ 10.88 |
Warning Indicator Plate | 1 | $ 10.88 | ||
| 3 | 63115-99J00 Tiller Handle Bushing No 2
SKU: 63115-99J00 Weight: 0.125000 Brand: Price: $ 18.34 |
Tiller Handle Bushing No 2 | 1 | $ 18.34 | ||
| 4 | 63115-99J10 Tiller Handle Bushing No 1
SKU: 63115-99J10 Weight: 0.125000 Brand: Price: $ 13.23 |
Tiller Handle Bushing No 1 | 1 | $ 13.23 | ||
| 5 | 63116-99J00 Friction Rubber
SKU: 63116-99J00 Weight: 0.250000 Brand: Price: $ 16.44 |
Friction Rubber | 1 | $ 16.44 | ||
| 6 | 63121-99J00-0EP Tiller Handle Cover
SKU: 63121-99J00-0EP Weight: 0.250000 Brand: Price: $ 79.33 |
Tiller Handle Cover | 1 | $ 79.33 | ||
| 7 | 63122-99J00 Handle Cover Protector
SKU: 63122-99J00 Weight: 0.250000 Brand: Price: $ 14.76 |
Handle Cover Protector | 1 | $ 14.76 | ||
| 8 | 63131-99J00-0EP Tiller Handle Bracket
SKU: 63131-99J00-0EP Weight: 1.000000 Brand: Price: $ 0.00 |
Tiller Handle Bracket | 1 | $ 0.00 | ||
| 9 | 63133-89L00 Tiller Handle Bracket Grommet
SKU: 63133-89L00 Weight: 0.250000 Brand: Price: $ 12.04 |
Tiller Handle Bracket Grommet | 1 | $ 12.04 | ||
| 10 | 63210-99J00 Throttle Grip
SKU: 63210-99J00 Weight: 1.500000 Brand: Price: $ 29.53 |
Throttle Grip | 1 | $ 29.53 | ||
| 11 | 63221-99J00 Throttle Rod
SKU: 63221-99J00 Weight: 0.250000 Brand: Price: $ 0.00 |
Throttle Rod | 1 | $ 0.00 | ||
| 12 | 63225-99J00 Shift Rod Bushing
SKU: 63225-99J00 Weight: 0.250000 Brand: Price: $ 0.00 |
Shift Rod Bushing | 1 | $ 0.00 | ||
| 13 | 63226-99J00 Throttle/Shift Rod Bushing
SKU: 63226-99J00 Weight: 0.250000 Brand: Price: $ 0.00 |
Throttle/Shift Rod Bushing | 1 | $ 0.00 | ||
| 14 | 63228-99J00 Handle Rod Holder
SKU: 63228-99J00 Weight: 0.250000 Brand: Price: $ 0.00 |
Handle Rod Holder | 1 | $ 0.00 | ||
| 15 | 63244-99J00 Throttle Adjuster Knob
SKU: 63244-99J00 Weight: 0.250000 Brand: Price: $ 9.41 |
Throttle Adjuster Knob | 1 | $ 9.41 | ||
| 16 | 63245-99J00 Throttle Adjuster Bushing
SKU: 63245-99J00 Weight: 0.250000 Brand: Price: $ 4.82 |
Throttle Adjuster Bushing | 1 | $ 4.82 | ||
| 17 | 63246-99J00 Throttle Adjuster Stopper
SKU: 63246-99J00 Weight: 0.250000 Brand: Price: $ 0.00 |
Throttle Adjuster Stopper | 1 | $ 0.00 | ||
| 18 | 63247-99J00 Throttle Adjuster Knob Plate
SKU: 63247-99J00 Weight: 0.250000 Brand: Price: $ 4.90 |
Throttle Adjuster Knob Plate | 1 | $ 4.90 | ||
| 19 | 63248-99J00 Throttle Adjuster Notch Plate
SKU: 63248-99J00 Weight: 0.250000 Brand: Price: $ 5.19 |
Throttle Adjuster Notch Plate | 1 | $ 5.19 | ||
| 20 | 63340-99J00 Shift Grip
SKU: 63340-99J00 Weight: 0.250000 Brand: Price: $ 21.05 |
Shift Grip | 1 | $ 21.05 | ||
| 21 | 63344-99J00 Shift Rod Stopper
SKU: 63344-99J00 Weight: 0.250000 Brand: Price: $ 0.00 |
Shift Rod Stopper | 1 | $ 0.00 | ||
| 22 | 63345-99J00 Shift Grip Spring
SKU: 63345-99J00 Weight: 0.250000 Brand: Price: $ 0.00 |
Shift Grip Spring | 1 | $ 0.00 | ||
| 23 | 63350-99J00 Shift Rod
SKU: 63350-99J00 Weight: 0.250000 Brand: Price: $ 0.00 |
Shift Rod | 1 | $ 0.00 | ||
| 24 | 63353-99JL0 Shift Notch Plate
SKU: 63353-99JL0 Weight: 0.100000 Brand: Price: $ 7.67 |
Shift Notch Plate | 1 | $ 7.67 | ||
| 25 | 63354-99J00-0EP Shift Notch Holder
SKU: 63354-99J00-0EP Weight: 0.100000 Brand: Price: $ 62.17 |
Shift Notch Holder | 1 | $ 62.17 | ||
| 26 | 63355-99J00 Shift Notch Spring Bolt
SKU: 63355-99J00 Weight: 0.060000 Brand: Price: $ 17.33 |
Shift Notch Spring Bolt | 1 | $ 17.33 | ||
| 27 | 63610-99J00 Throttle Cable Assembly
SKU: 63610-99J00 Weight: 0.250000 Brand: Price: $ 44.89 |
Throttle Cable Assembly | 2 | $ 44.89 | ||
| 28 | 63640-99J00 Shift Cable Assembly
SKU: 63640-99J00 Weight: 0.250000 Brand: Price: $ 83.76 |
Shift Cable Assembly | 2 | $ 83.76 | ||
| 29 | 09116-06225 Bolt (6x16)
SKU: 09116-06225 Weight: 0.100000 Brand: Price: $ 2.60 |
Bolt (6x16) | 2 | $ 2.60 | ||
| 30 | 09116-06225 Bolt (6x16)
SKU: 09116-06225 Weight: 0.100000 Brand: Price: $ 2.60 |
Bolt (6x16) | 1 | $ 2.60 | ||
| 31 | 09116-06225 Bolt (6x16)
SKU: 09116-06225 Weight: 0.100000 Brand: Price: $ 2.60 |
Bolt (6x16) | 2 | $ 2.60 | ||
| 32 | 09116-08122 Bolt (8x30)
SKU: 09116-08122 Weight: 0.060000 Brand: Price: $ 4.66 |
Bolt (8x30) | 2 | $ 4.66 | ||
| 33 | 09116-08155 Bolt (8x45)
SKU: 09116-08155 Weight: 0.250000 Brand: Price: $ 5.19 |
Bolt (8x45) | 2 | $ 5.19 | ||
| 34 | 09125-05042 Screw (5x10)
SKU: 09125-05042 Weight: 0.060000 Brand: Price: $ 1.99 |
Screw (5x10) | 1 | $ 1.99 | ||
| 35 | 09126-06025 Screw (6x14)
SKU: 09126-06025 Weight: 0.250000 Brand: Price: $ 0.00 |
Screw (6x14) | 1 | $ 0.00 | ||
| 36 | 09126-06025 Screw (6x14)
SKU: 09126-06025 Weight: 0.250000 Brand: Price: $ 0.00 |
Screw (6x14) | 1 | $ 0.00 | ||
| 37 | 09140-08023-XC0 Nut (8mm)
SKU: 09140-08023-XC0 Weight: 0.060000 Brand: Price: $ 2.52 |
Nut (8mm) | 1 | $ 2.52 | ||
| 38 | 09160-08082 Washer (8.5x16x1.2)
SKU: 09160-08082 Weight: 0.060000 Brand: Price: $ 1.63 |
Washer (8.5x16x1.2) | 1 | $ 1.63 | ||
| 39 | 09160-10082 Washer (10.5x19x2.0)
SKU: 09160-10082 Weight: 0.060000 Brand: Price: $ 1.63 |
Washer (10.5x19x2.0) | 1 | $ 1.63 | ||
| 40 | 09160-10114 Washer (10.5x22x1.5)
SKU: 09160-10114 Weight: 0.060000 Brand: Price: $ 2.09 |
Washer (10.5x22x1.5) | 1 | $ 2.09 | ||
| 41 | 09163-06001 Lock Washer (6.4x12x0.5)
SKU: 09163-06001 Weight: 0.060000 Brand: Price: $ 1.49 |
Lock Washer (6.4x12x0.5) | 1 | $ 1.49 | ||
| 42 | 09163-06001 Lock Washer (6.4x12x0.5)
SKU: 09163-06001 Weight: 0.060000 Brand: Price: $ 1.49 |
Lock Washer (6.4x12x0.5) | 1 | $ 1.49 | ||
| 43 | 09202-04023 Pin (4x22)
SKU: 09202-04023 Weight: 0.250000 Brand: Price: $ 0.00 |
Pin (4x22) | 1 | $ 0.00 | ||
| 44 | 09260-10006 Ball
SKU: 09260-10006 Weight: 0.250000 Brand: Price: $ 2.53 |
Ball | 1 | $ 2.53 | ||
| 45 | 09260-10006 Ball
SKU: 09260-10006 Weight: 0.250000 Brand: Price: $ 2.53 |
Ball | 1 | $ 2.53 | ||
| 46 | 09403-13413 CLAMP
SKU: 09403-13413 Weight: 0.000000 Brand: Price: $ 5.28 |
CLAMP | 1 | $ 5.28 | ||
| 47 | 09440-06037 Spring
SKU: 09440-06037 Weight: 0.100000 Brand: Price: $ 0.69 |
Spring | 1 | $ 0.69 | ||
| 48 | 09440-07079 Spring
SKU: 09440-07079 Weight: 0.250000 Brand: Price: $ 3.42 |
Spring | 1 | $ 3.42 | ||
| 49 | 03522-05169 Screw
SKU: 03522-05169 Weight: 0.100000 Brand: Price: $ 0.00 |
Screw | 3 | $ 0.00 | ||
| 50 | 63215-93110 Handle Grip Mark
SKU: 63215-93110 Weight: 0.060000 Brand: Price: $ 3.19 |
Handle Grip Mark | 1 | $ 3.19 | ||
| 51 | 37830-99J02 Emergency Switch Assembly
SKU: 37830-99J02 Weight: 0.200000 Brand: Price: $ 50.18 |
Emergency Switch Assembly | 1 | $ 50.18 | ||
| 52 | 37823-97J00 Stop Switch Lanyard
SKU: 37823-97J00 Weight: 0.080000 Brand: Price: $ 28.07 |
Stop Switch Lanyard | 1 | $ 28.07 | ||
| 53 | 37826-92E00 Nut
SKU: 37826-92E00 Weight: 0.060000 Brand: Price: $ 5.77 |
Nut | 1 | $ 5.77 | ||
| 54 | 37835-91J00-YAY Stop Label
SKU: 37835-91J00-YAY Weight: 0.060000 Brand: Price: $ 1.20 |
Stop Label | 1 | $ 1.20 | ||
| 55 | 33833-91J00 Tube (6x8x250)
SKU: 33833-91J00 Weight: 0.125000 Brand: Price: $ 7.13 |
Tube (6x8x250) | 1 | $ 7.13 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
