Suzuki DF 9.9A Parts Listings - 2013
S/N 00994F-310001 to 00994F-31XXXX

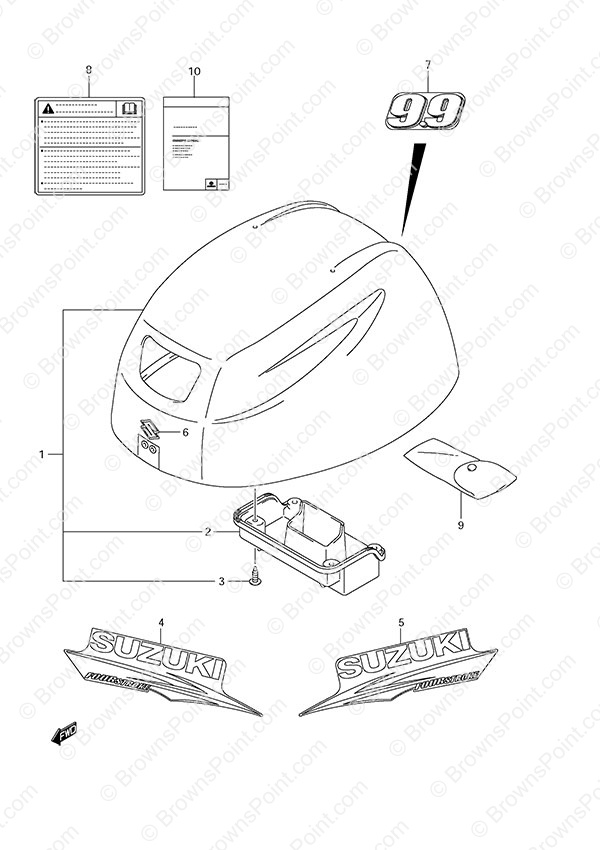

Fig. 67 - Engine Cover w/Remote Control
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 61400-99J01-0EP Engine Cover Assembly
SKU: 61400-99J01-0EP Weight: 50.000000 Brand: Price: $ 661.18 |
Engine Cover Assembly | 1 | $ 661.18 | ||
| 2 | 61443-99J00 Engine Cover Starboard Stripe
SKU: 61443-99J00 Weight: 0.250000 Brand: Price: $ 12.13 |
Engine Cover Starboard Stripe | 1 | $ 12.13 | ||
| 3 | 03542-05169 SCREW
SKU: 03542-05169 Weight: 0.060000 Brand: Price: $ 1.70 |
SCREW | 4 | $ 1.70 | ||
| 4 | 61443-99J00 Engine Cover Starboard Stripe
SKU: 61443-99J00 Weight: 0.250000 Brand: Price: $ 12.13 |
Engine Cover Starboard Stripe | 1 | $ 12.13 | ||
| 5 | 61453-99J00 Engine Cover Port Stripe
SKU: 61453-99J00 Weight: 0.250000 Brand: Price: $ 12.38 |
Engine Cover Port Stripe | 1 | $ 12.38 | ||
| 6 | 68111-99J00 S Emblem
SKU: 68111-99J00 Weight: 0.100000 Brand: Price: $ 5.37 |
S Emblem | 1 | $ 5.37 | ||
| 7 | 61435-99J10 Rear Emblem Mark (9.9)
SKU: 61435-99J10 Weight: 0.060000 Brand: Price: $ 14.80 |
Rear Emblem Mark (9.9) | 1 | $ 14.80 | ||
| 8 | 61458-89L10 Engine Cover Label
SKU: 61458-89L10 Weight: 0.125000 Brand: Price: $ 12.49 |
Engine Cover Label | 1 | $ 12.49 | ||
| 9 | 59800-99J01 Tool Set
SKU: 59800-99J01 Weight: 0.100000 Brand: Price: $ 54.54 |
Tool Set | 1 | $ 54.54 | ||
| 10 | 99011-99J20-03B Owners Manual DF8A / DF9.9A 310001~
SKU: 99011-99J20-03B Weight: 0.250000 Brand: Price: $ 20.00 |
Owners Manual DF8A / DF9.9A 310001~ | 1 | $ 20.00 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
