Suzuki DF 9.9A Parts Listings - 2013
S/N 00994F-310001 to 00994F-31XXXX

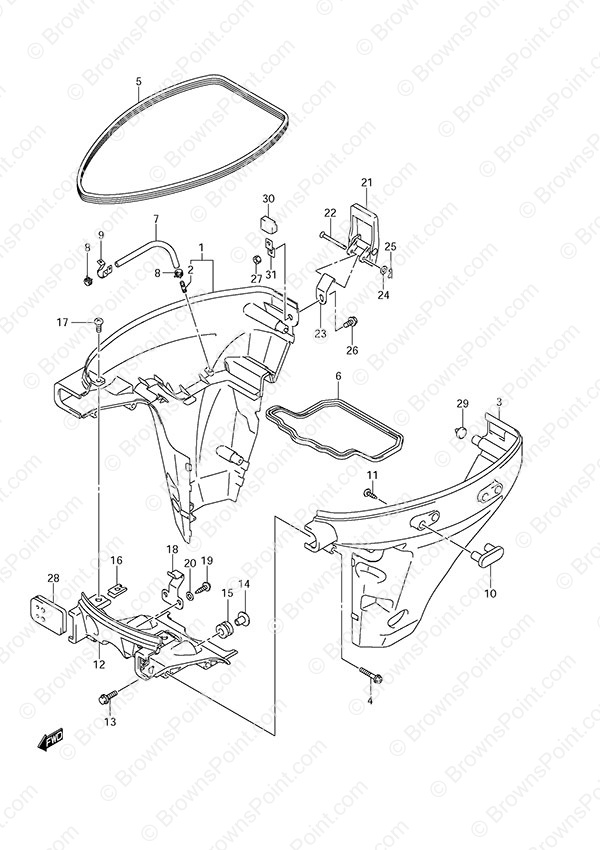

Fig. 63 - Side Cover w/Remote Control
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 61810-99J00-0EP Starboard Side Cover (NLA)
SKU: 61810-99J00-0EP Weight: 5.000000 Brand: Price: $ 353.05 |
Starboard Side Cover (NLA) | 1 | $ 353.05 | ||
| 2 | 61155-94500 Water Inspection Tube
SKU: 61155-94500 Weight: 0.060000 Brand: Price: $ 3.47 |
Water Inspection Tube | 1 | $ 3.47 | ||
| 3 | 61820-99J01-0EP Port Side Cover
SKU: 61820-99J01-0EP Weight: 5.000000 Brand: Price: $ 221.30 |
Port Side Cover | 1 | $ 221.30 | ||
| 4 | 09136-06169 Screw (6x35)
SKU: 09136-06169 Weight: 0.060000 Brand: Price: $ 2.96 |
Screw (6x35) | 8 | $ 2.96 | ||
| 5 | 61112-99J00 Side Cover Rubber
SKU: 61112-99J00 Weight: 1.000000 Brand: Price: $ 55.43 |
Side Cover Rubber | 1 | $ 55.43 | ||
| 6 | 61134-99JL0 Side Cover Seal
SKU: 61134-99JL0 Weight: 0.500000 Brand: Price: $ 34.74 |
Side Cover Seal | 1 | $ 34.74 | ||
| 7 | 61157-99J00 Water Inspection Hose
SKU: 61157-99J00 Weight: 0.250000 Brand: Price: $ 19.48 |
Water Inspection Hose | 1 | $ 19.48 | ||
| 8 | 09401-08413 Clip
SKU: 09401-08413 Weight: 0.060000 Brand: Price: $ 2.09 |
Clip | 2 | $ 2.09 | ||
| 9 | 09403-12316 Clamp
SKU: 09403-12316 Weight: 0.250000 Brand: Price: $ 4.99 |
Clamp | 1 | $ 4.99 | ||
| 10 | 61851-93E10 Engine Cover Protector
SKU: 61851-93E10 Weight: 0.060000 Brand: Price: $ 5.46 |
Engine Cover Protector | 2 | $ 5.46 | ||
| 11 | 03542-05169 SCREW
SKU: 03542-05169 Weight: 0.060000 Brand: Price: $ 1.70 |
SCREW | 4 | $ 1.70 | ||
| 12 | 61831-99J00-0EP Instrument Panel
SKU: 61831-99J00-0EP Weight: 1.000000 Brand: Price: $ 295.01 |
Instrument Panel | 1 | $ 295.01 | ||
| 13 | 09116-06133 Bolt (6x25)
SKU: 09116-06133 Weight: 0.250000 Brand: Price: $ 2.60 |
Bolt (6x25) | 2 | $ 2.60 | ||
| 14 | 09169-06075 Washer
SKU: 09169-06075 Weight: 0.200000 Brand: Price: $ 3.19 |
Washer | 2 | $ 3.19 | ||
| 15 | 09320-09059 Cushion
SKU: 09320-09059 Weight: 0.060000 Brand: Price: $ 3.31 |
Cushion | 2 | $ 3.31 | ||
| 16 | 09148-06017 Nut
SKU: 09148-06017 Weight: 0.060000 Brand: Price: $ 3.26 |
Nut | 2 | $ 3.26 | ||
| 17 | 02142-06167 6 X 16 CROSS SC
SKU: 02142-06167 Weight: 0.060000 Brand: Price: $ 1.38 |
6 X 16 CROSS SC | 2 | $ 1.38 | ||
| 18 | 61412-99J00 Front Panel Hook
SKU: 61412-99J00 Weight: 0.250000 Brand: Price: $ 39.73 |
Front Panel Hook | 1 | $ 39.73 | ||
| 19 | 61643-99J00 Hook Screw
SKU: 61643-99J00 Weight: 0.250000 Brand: Price: $ 7.08 |
Hook Screw | 2 | $ 7.08 | ||
| 20 | 09160-05029 Washer (5.5x10x0.8)
SKU: 09160-05029 Weight: 0.060000 Brand: Price: $ 1.70 |
Washer (5.5x10x0.8) | 2 | $ 1.70 | ||
| 21 | 61610-90L00 Fastener
SKU: 61610-90L00 Weight: 0.080000 Brand: Price: $ 40.56 |
Fastener | 1 | $ 40.56 | ||
| 22 | 61616-93EL0 Lever Pin
SKU: 61616-93EL0 Weight: 0.060000 Brand: Price: $ 7.55 |
Lever Pin | 1 | $ 7.55 | ||
| 23 | 61642-99J00 Fastner Lever Holder
SKU: 61642-99J00 Weight: 0.250000 Brand: Price: $ 13.36 |
Fastner Lever Holder | 1 | $ 13.36 | ||
| 24 | 09161-04012 Washer (4.2x11x1)
SKU: 09161-04012 Weight: 0.060000 Brand: Price: $ 1.51 |
Washer (4.2x11x1) | 1 | $ 1.51 | ||
| 25 | 09385-04003 Snap Pin
SKU: 09385-04003 Weight: 0.060000 Brand: Price: $ 2.41 |
Snap Pin | 1 | $ 2.41 | ||
| 26 | 29103-93J00 Bolt (6x12)
SKU: 29103-93J00 Weight: 0.060000 Brand: Price: $ 2.05 |
Bolt (6x12) | 1 | $ 2.05 | ||
| 27 | 08310-00067 Nut
SKU: 08310-00067 Weight: 0.060000 Brand: Price: $ 1.85 |
Nut | 1 | $ 1.85 | ||
| 28 | 61124-99J10 Remocon Cable Grommet
SKU: 61124-99J10 Weight: 0.250000 Brand: Price: $ 52.29 |
Remocon Cable Grommet | 1 | $ 52.29 | ||
| 29 | 61151-99J00 Side Cover Holder Cushion
SKU: 61151-99J00 Weight: 0.250000 Brand: Price: $ 12.00 |
Side Cover Holder Cushion | 1 | $ 12.00 | ||
| 30 | 61813-99J00 Side Cover Cushion (NLA)
SKU: 61813-99J00 Weight: 0.250000 Brand: Price: $ 2.62 |
Side Cover Cushion (NLA) | 1 | $ 2.62 | ||
| 31 | 36617-93J10 Harness Bracket
SKU: 36617-93J10 Weight: 0.060000 Brand: Price: $ 2.00 |
Harness Bracket | 1 | $ 2.00 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
