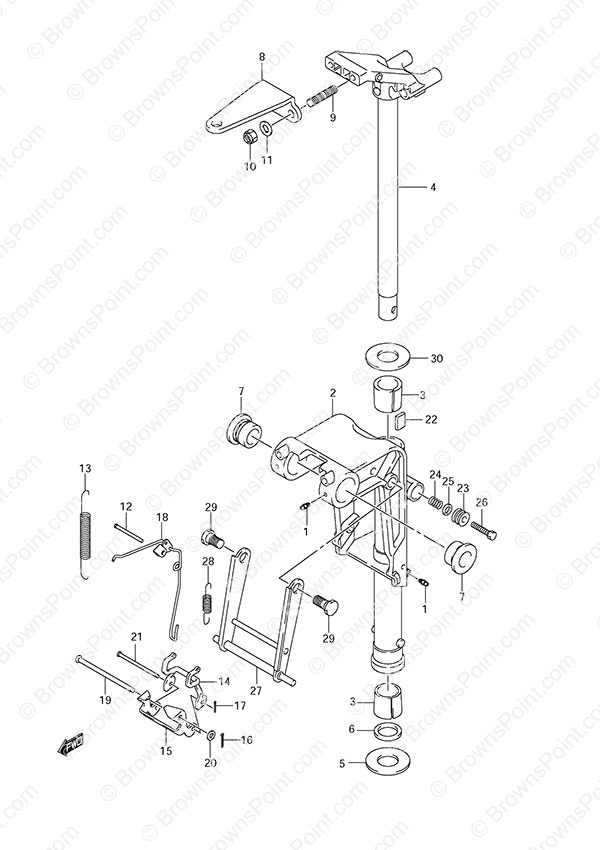

Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
---|---|---|---|---|---|---|
1 | 22511-99011 Grease Nipple SKU: 22511-99011 Weight: 0.060000 Brand: Price: $ 3.36 |
Grease Nipple | 3 | $ 3.36 | ||
2-1 | 43111-99J00-0EP Swivel Bracket (S) SKU: 43111-99J00-0EP Weight: 5.000000 Brand: Price: $ 364.18 |
Swivel Bracket (S) | 1 | $ 364.18 | w/Transom (S) | |
2-2 | 43111-99J10-0EP Swivel Bracket (L) SKU: 43111-99J10-0EP Weight: 5.000000 Brand: Price: $ 302.61 |
Swivel Bracket (L) | 1 | $ 302.61 | w/Transom (L) | |
3 | 43711-99J00 Steering Bushing SKU: 43711-99J00 Weight: 0.250000 Brand: Price: $ 14.52 |
Steering Bushing | 2 | $ 14.52 | ||
4-1 | 43750-99J60-0EP Steering Bracket (S) SKU: 43750-99J60-0EP Weight: 5.000000 Brand: Price: $ 118.60 |
Steering Bracket (S) | 1 | $ 118.60 | w/Transom (S) | |
4-2 | 43750-99J70-0EP Steering Bracket (L) SKU: 43750-99J70-0EP Weight: 5.000000 Brand: Price: $ 132.94 |
Steering Bracket (L) | 1 | $ 132.94 | w/Transom (L) | |
5 | 09160-27013 Washer SKU: 09160-27013 Weight: 0.060000 Brand: Price: $ 3.72 |
Washer | 1 | $ 3.72 | ||
6 | 09282-27002 Oil Seal (26x39x5) SKU: 09282-27002 Weight: 0.250000 Brand: Price: $ 14.52 |
Oil Seal (26x39x5) | 1 | $ 14.52 | ||
7 | 43211-87JL0 Swivel Bracket Bushing SKU: 43211-87JL0 Weight: 0.100000 Brand: Price: $ 33.39 |
Swivel Bracket Bushing | 2 | $ 33.39 | ||
8 | 43755-99J01 ATTACHMENT,STEE SKU: 43755-99J01 Weight: 0.000000 Brand: Price: $ 105.14 |
ATTACHMENT,STEE | 1 | $ 105.14 | ||
9 | 09108-08286 Stud Bolt SKU: 09108-08286 Weight: 0.060000 Brand: Price: $ 14.70 |
Stud Bolt | 2 | $ 14.70 | ||
10 | 09159-08059 Nut SKU: 09159-08059 Weight: 0.060000 Brand: Price: $ 5.21 |
Nut | 2 | $ 5.21 | ||
11 | 09160-08082 Washer (8.5x16x1.2) SKU: 09160-08082 Weight: 0.060000 Brand: Price: $ 1.63 |
Washer (8.5x16x1.2) | 2 | $ 1.63 | ||
12 | 41225-94502 Release Arm Pin SKU: 41225-94502 Weight: 0.060000 Brand: Price: $ 5.64 |
Release Arm Pin | 1 | $ 5.64 | ||
13 | 45212-99JL0 Reverse Lock Arm Spring SKU: 45212-99JL0 Weight: 0.200000 Brand: Price: $ 6.70 |
Reverse Lock Arm Spring | 2 | $ 6.70 | ||
14 | 45231-99J10 Reverse Lock Arm SKU: 45231-99J10 Weight: 0.100000 Brand: Price: $ 19.28 |
Reverse Lock Arm | 1 | $ 19.28 | ||
15 | 45241-99JL1 Reverse Lock Arm Link (NLA) SKU: 45241-99JL1 Weight: 0.100000 Brand: Price: $ 38.87 |
Reverse Lock Arm Link (NLA) | 1 | $ 38.87 | ||
16 | 09204-01002 Cotter Pin SKU: 09204-01002 Weight: 0.060000 Brand: Price: $ 1.70 |
Cotter Pin | 1 | $ 1.70 | ||
17 | 45247-99J00 Reverse Lock Arm Cotter Pin SKU: 45247-99J00 Weight: 0.250000 Brand: Price: $ 2.53 |
Reverse Lock Arm Cotter Pin | 1 | $ 2.53 | ||
18 | 45250-94J00 Release Link SKU: 45250-94J00 Weight: 0.250000 Brand: Price: $ 20.41 |
Release Link | 1 | $ 20.41 | ||
19 | 09200-06061 Pin SKU: 09200-06061 Weight: 0.060000 Brand: Price: $ 8.40 |
Pin | 1 | $ 8.40 | ||
20 | 09160-06082 Washer (6.5x13x1.0) SKU: 09160-06082 Weight: 0.060000 Brand: Price: $ 1.44 |
Washer (6.5x13x1.0) | 1 | $ 1.44 | ||
21 | 09200-05014 Pin SKU: 09200-05014 Weight: 0.100000 Brand: Price: $ 3.00 |
Pin | 1 | $ 3.00 | ||
22 | 43411-939L0 Steering Adjuster Plate SKU: 43411-939L0 Weight: 0.100000 Brand: Price: $ 3.31 |
Steering Adjuster Plate | 1 | $ 3.31 | ||
23 | 43412-93901 COVER,STEERING SKU: 43412-93901 Weight: 0.000000 Brand: Price: $ 2.60 |
COVER,STEERING | 1 | $ 2.60 | ||
24 | 29440-93J00 Steering Adjuster Spring SKU: 29440-93J00 Weight: 0.100000 Brand: Price: $ 2.24 |
Steering Adjuster Spring | 1 | $ 2.24 | ||
25 | 09160-08082 Washer (8.5x16x1.2) SKU: 09160-08082 Weight: 0.060000 Brand: Price: $ 1.63 |
Washer (8.5x16x1.2) | 1 | $ 1.63 | ||
26 | 09100-08308 Bolt (8x30) (NLA) SKU: 09100-08308 Weight: 0.250000 Brand: Price: $ 3.11 |
Bolt (8x30) (NLA) | 1 | $ 3.11 | ||
27 | 45710-99JL1 Shallow Water Drive Assembly SKU: 45710-99JL1 Weight: 0.500000 Brand: Price: $ 38.44 |
Shallow Water Drive Assembly | 1 | $ 38.44 | ||
28 | 45722-94J11 Shallow Water Drive Spring SKU: 45722-94J11 Weight: 0.060000 Brand: Price: $ 20.04 |
Shallow Water Drive Spring | 1 | $ 20.04 | ||
29 | 09111-10067 Bolt (10x20.4) SKU: 09111-10067 Weight: 0.060000 Brand: Price: $ 6.13 |
Bolt (10x20.4) | 2 | $ 6.13 | ||
30 | 09160-27012 Washer (27.5x47x1) SKU: 09160-27012 Weight: 0.250000 Brand: Price: $ 3.81 |
Washer (27.5x47x1) | 1 | $ 3.81 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
