Suzuki DF 9.9A Parts Listings - 2013
S/N 00994F-310001 to 00994F-31XXXX

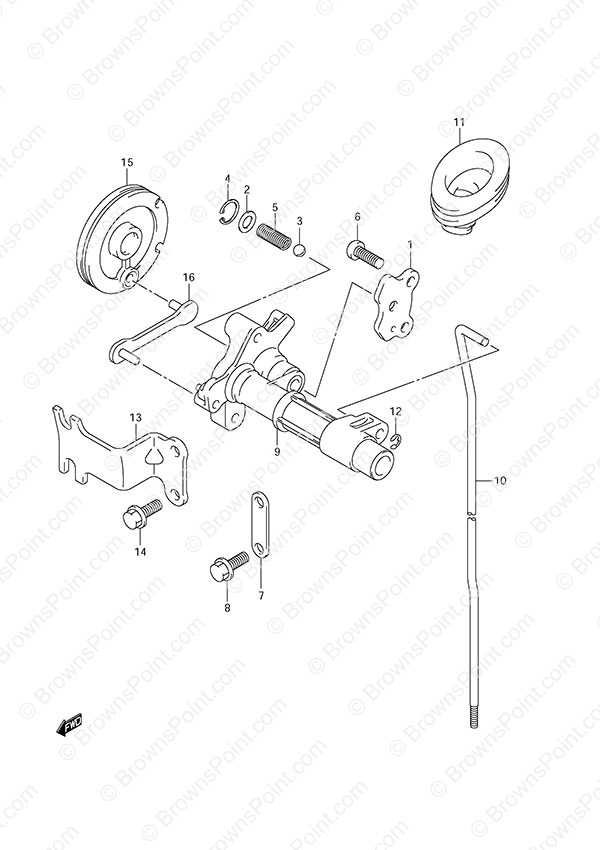

Fig. 28 - Clutch Rod Non-Remote Control
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 21122-99J00 Clutch Notch Plate
SKU: 21122-99J00 Weight: 0.250000 Brand: Price: $ 24.16 |
Clutch Notch Plate | 1 | $ 24.16 | ||
| 2 | 09160-06082 Washer (6.5x13x1.0)
SKU: 09160-06082 Weight: 0.060000 Brand: Price: $ 1.52 |
Washer (6.5x13x1.0) | 1 | $ 1.52 | ||
| 3 | 09260-10006 Ball
SKU: 09260-10006 Weight: 0.250000 Brand: Price: $ 2.61 |
Ball | 1 | $ 2.61 | ||
| 4 | 09381-14004 Circlip
SKU: 09381-14004 Weight: 0.250000 Brand: Price: $ 2.78 |
Circlip | 1 | $ 2.78 | ||
| 5 | 09440-07079 Spring
SKU: 09440-07079 Weight: 0.250000 Brand: Price: $ 3.60 |
Spring | 1 | $ 3.60 | ||
| 6 | 02112-06127 SCREW
SKU: 02112-06127 Weight: 0.060000 Brand: Price: $ 1.95 |
SCREW | 2 | $ 1.95 | ||
| 7 | 21126-99J00 Clutch Shaft Holder
SKU: 21126-99J00 Weight: 0.100000 Brand: Price: $ 4.60 |
Clutch Shaft Holder | 1 | $ 4.60 | ||
| 8 | 01550-06167 BOLT
SKU: 01550-06167 Weight: 0.060000 Brand: Price: $ 2.45 |
BOLT | 2 | $ 2.45 | ||
| 9 | 21210-99J00 Clutch Lever Shaft
SKU: 21210-99J00 Weight: 0.200000 Brand: Price: $ 52.13 |
Clutch Lever Shaft | 1 | $ 52.13 | ||
| 10-1 | 23111-99J00 Clutch Rod (S)
SKU: 23111-99J00 Weight: 0.250000 Brand: Price: $ 32.85 |
Clutch Rod (S) | 1 | $ 32.85 | w/Transom (S) | |
| 10-2 | 23111-99J10 Clutch Rod (L)
SKU: 23111-99J10 Weight: 2.000000 Brand: Price: $ 37.68 |
Clutch Rod (L) | 1 | $ 37.68 | w/Transom (L) | |
| 11 | 23131-99J00 Clutch Rod Boot
SKU: 23131-99J00 Weight: 0.250000 Brand: Price: $ 23.82 |
Clutch Rod Boot | 1 | $ 23.82 | ||
| 12 | 09383-04002 E Ring
SKU: 09383-04002 Weight: 0.060000 Brand: Price: $ 0.78 |
E Ring | 1 | $ 0.78 | ||
| 13 | 21127-99J00 Shift Cable Bracket
SKU: 21127-99J00 Weight: 0.250000 Brand: Price: $ 30.00 |
Shift Cable Bracket | 1 | $ 30.00 | ||
| 14 | 01550-06167 BOLT
SKU: 01550-06167 Weight: 0.060000 Brand: Price: $ 2.45 |
BOLT | 2 | $ 2.45 | ||
| 15 | 21212-99J00 Shift Drum
SKU: 21212-99J00 Weight: 0.250000 Brand: Price: $ 21.87 |
Shift Drum | 1 | $ 21.87 | ||
| 16 | 23115-99J00 Shift Drum Link
SKU: 23115-99J00 Weight: 0.250000 Brand: Price: $ 17.61 |
Shift Drum Link | 1 | $ 17.61 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
