Suzuki DF 9.9A Parts Listings - 2013
S/N 00994F-310001 to 00994F-31XXXX

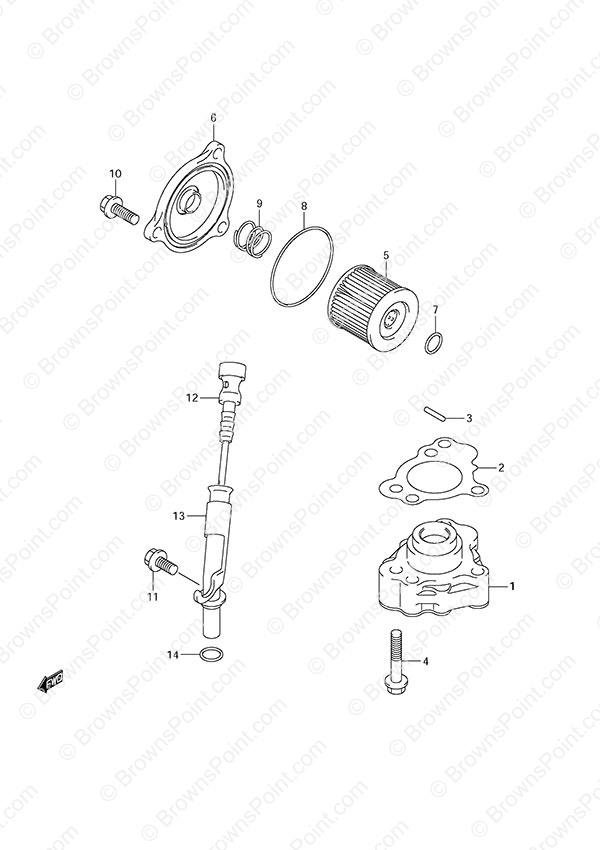

Fig. 25 - Oil Pump
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 16400-99JL0 Oil Pump Assembly
SKU: 16400-99JL0 Weight: 2.000000 Brand: Price: $ 328.86 |
Oil Pump Assembly | 1 | $ 328.86 | ||
| 2 | 16542-99J00 Oil Pump Gasket
SKU: 16542-99J00 Weight: 0.250000 Brand: Price: $ 6.31 |
Oil Pump Gasket | 1 | $ 6.31 | ||
| 3 | 09261-03009 Roll Pin (3x15.8) (NLA)
SKU: 09261-03009 Weight: 0.250000 Brand: Price: $ 1.15 |
Roll Pin (3x15.8) (NLA) | 1 | $ 1.15 | ||
| 4 | 01550-06357 BOLT
SKU: 01550-06357 Weight: 0.060000 Brand: Price: $ 2.82 |
BOLT | 3 | $ 2.82 | ||
| 5 | 16510-45H10 Engine Oil Filter
SKU: 16510-45H10 Weight: 0.180000 Brand: Price: $ 9.88 |
Engine Oil Filter | 1 | $ 9.88 | ||
| 6 | 16512-99J00 Oil Filter Cap
SKU: 16512-99J00 Weight: 0.250000 Brand: Price: $ 23.90 |
Oil Filter Cap | 1 | $ 23.90 | ||
| 7 | 09280-13004 Oil Pump O-Ring
SKU: 09280-13004 Weight: 0.060000 Brand: Price: $ 2.19 |
Oil Pump O-Ring | 1 | $ 2.19 | ||
| 8 | 09280-54001 Oil Filter O-Ring
SKU: 09280-54001 Weight: 0.060000 Brand: Price: $ 3.82 |
Oil Filter O-Ring | 1 | $ 3.82 | ||
| 9 | 09440-18002 Spring
SKU: 09440-18002 Weight: 0.060000 Brand: Price: $ 1.11 |
Spring | 1 | $ 1.11 | ||
| 10 | 01550-06207 BOLT
SKU: 01550-06207 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 3 | $ 2.33 | ||
| 11 | 01550-06127 BOLT
SKU: 01550-06127 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 1 | $ 2.33 | ||
| 12 | 16910-99J00 Oil Level Gauge
SKU: 16910-99J00 Weight: 0.250000 Brand: Price: $ 40.01 |
Oil Level Gauge | 1 | $ 40.01 | ||
| 13 | 16930-99J00 Oil Level Gauge Guide
SKU: 16930-99J00 Weight: 0.250000 Brand: Price: $ 24.61 |
Oil Level Gauge Guide | 1 | $ 24.61 | ||
| 14 | 09280-10016 O-Ring
SKU: 09280-10016 Weight: 0.060000 Brand: Price: $ 3.41 |
O-Ring | 1 | $ 3.41 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
