Suzuki DF 9.9A Parts Listings - 2013
S/N 00994F-310001 to 00994F-31XXXX

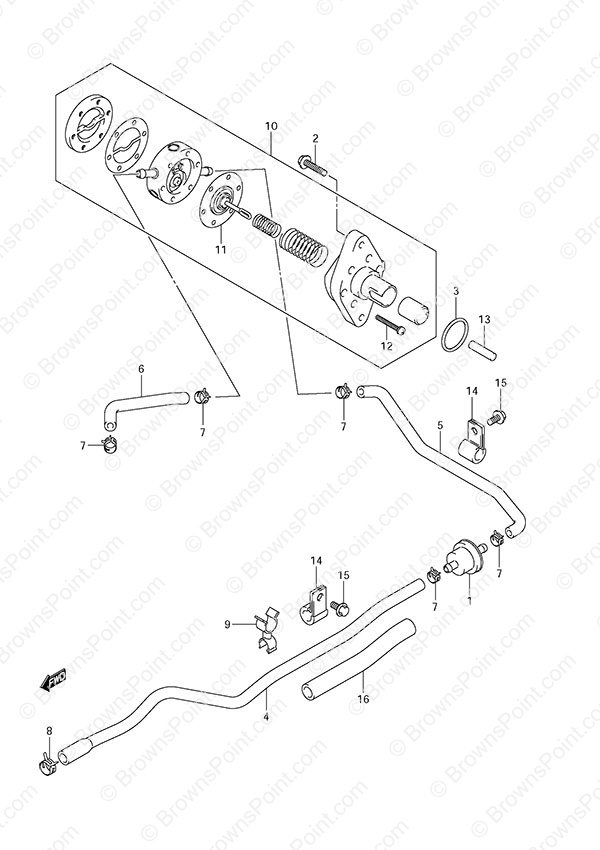

Fig. 17 - Fuel Pump
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 15410-98500 Fuel Filter
SKU: 15410-98500 Weight: 0.060000 Brand: Price: $ 10.74 |
Fuel Filter | 1 | $ 10.74 | ||
| 2 | 01550-06257 BOLT
SKU: 01550-06257 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 2 | $ 2.33 | ||
| 3 | 09280-26005 O-Ring
SKU: 09280-26005 Weight: 0.060000 Brand: Price: $ 2.33 |
O-Ring | 1 | $ 2.33 | ||
| 4 | 15192-99J11 Fuel Hose
SKU: 15192-99J11 Weight: 0.250000 Brand: Price: $ 27.77 |
Fuel Hose | 1 | $ 27.77 | Connector to Filter | |
| 5 | 15193-99J11 Fuel Hose
SKU: 15193-99J11 Weight: 0.250000 Brand: Price: $ 17.56 |
Fuel Hose | 1 | $ 17.56 | Filter to Pump | |
| 6 | 15191-99J11 Fuel Hose
SKU: 15191-99J11 Weight: 0.100000 Brand: Price: $ 10.09 |
Fuel Hose | 1 | $ 10.09 | Pump to Carb | |
| 7 | 09401-09404 Clip
SKU: 09401-09404 Weight: 0.060000 Brand: Price: $ 2.06 |
Clip | 5 | $ 2.06 | ||
| 8 | 09401-11422 Clip
SKU: 09401-11422 Weight: 0.060000 Brand: Price: $ 2.24 |
Clip | 1 | $ 2.24 | ||
| 9 | 09408-00054 Clamp (NLA)
SKU: 09408-00054 Weight: 0.060000 Brand: Price: $ 2.26 |
Clamp (NLA) | 1 | $ 2.26 | ||
| 10 | 15100-94J03 Fuel Pump Assembly
SKU: 15100-94J03 Weight: 0.600000 Brand: Price: $ 166.14 |
Fuel Pump Assembly | 1 | $ 166.14 | ||
| 11 | 15170-94J03 Fuel Pump Diaphragm Set
SKU: 15170-94J03 Weight: 0.080000 Brand: Price: $ 27.53 |
Fuel Pump Diaphragm Set | 1 | $ 27.53 | ||
| 12 | 15251-93E01 Screw
SKU: 15251-93E01 Weight: 0.060000 Brand: Price: $ 2.53 |
Screw | 6 | $ 2.53 | ||
| 13 | 15131-99J00 Fuel Pump Rod
SKU: 15131-99J00 Weight: 0.250000 Brand: Price: $ 3.21 |
Fuel Pump Rod | 1 | $ 3.21 | ||
| 14 | 09403-12406 Clamp
SKU: 09403-12406 Weight: 0.100000 Brand: Price: $ 3.50 |
Clamp | 1 | $ 3.50 | ||
| 15 | 01550-06127 BOLT
SKU: 01550-06127 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 1 | $ 2.33 | ||
| 16 | 18498-94JL0-100 Protector (L:100)
SKU: 18498-94JL0-100 Weight: 0.250000 Brand: Price: $ 3.85 |
Protector (L:100) | 1 | $ 3.85 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
