Suzuki DF 9.9 Parts Listings - 2013
S/N 00993F-310001 to 00993F-31XXXX

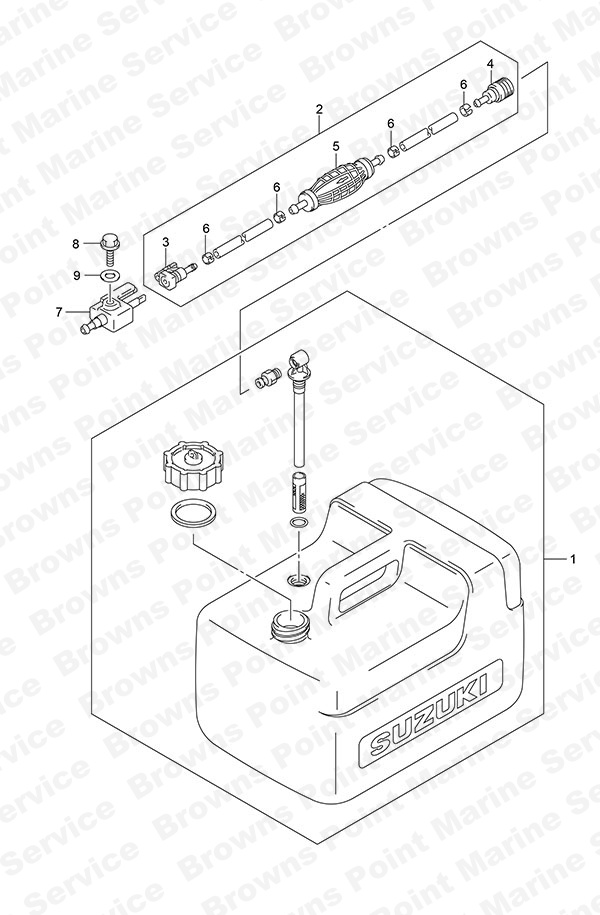

Fig. 31 - Fuel Tank
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 65000-99J01 3 Gallon Fuel Tank
SKU: 65000-99J01 Weight: 5.000000 Brand: Price: $ 133.96 |
3 Gallon Fuel Tank | 1 | $ 133.96 | ||
| 2 | 65700-94JC3 Fuel Hose (NLA)
SKU: 65700-94JC3 Weight: 2.000000 Brand: Price: $ 355.36 |
Fuel Hose (NLA) | 1 | $ 355.36 | ||
| 3 | 65750-87J11 Fuel Hose Connector
SKU: 65750-87J11 Weight: 0.200000 Brand: Price: $ 20.94 |
Fuel Hose Connector | 1 | $ 20.94 | ||
| 4 | 65750-98506 Fuel Hose Connector (11mm)
SKU: 65750-98506 Weight: 0.120000 Brand: Price: $ 30.19 |
Fuel Hose Connector (11mm) | 1 | $ 30.19 | ||
| 5 | 65770-94J00 Replaced by 65770-94J04
SKU: 65770-94J00 Weight: 0.500000 Brand: Price: $ 171.87 |
Replaced by 65770-94J04 | 1 | $ 171.87 | ||
| 6 | 65781-98500 Hose Clip
SKU: 65781-98500 Weight: 0.060000 Brand: Price: $ 2.90 |
Hose Clip | 4 | $ 2.90 | ||
| 7 | 65720-986L0 Fuel Connector
SKU: 65720-986L0 Weight: 0.100000 Brand: Price: $ 57.47 |
Fuel Connector | 1 | $ 57.47 | ||
| 8 | 09103-06237 Bolt (6x12.5)
SKU: 09103-06237 Weight: 0.060000 Brand: Price: $ 3.52 |
Bolt (6x12.5) | 1 | $ 3.52 | ||
| 9 | 09160-06085 Washer (6.5x15x1.0)
SKU: 09160-06085 Weight: 0.060000 Brand: Price: $ 1.36 |
Washer (6.5x15x1.0) | 1 | $ 1.36 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
