Suzuki DF 9.9 Parts Listings - 2013
S/N 00993F-310001 to 00993F-31XXXX

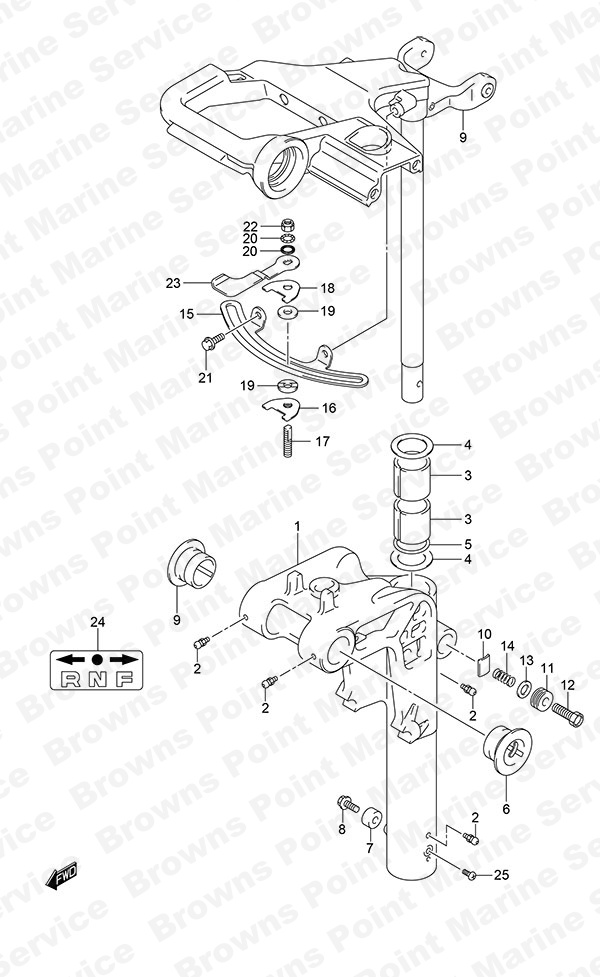

Fig. 24 - Swivel Bracket
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 43111-94JE0-0EP Swivel Bracket
SKU: 43111-94JE0-0EP Weight: 0.100000 Brand: Price: $ 812.08 |
Swivel Bracket | 1 | $ 812.08 | ||
| 2 | 22511-99011 Grease Nipple
SKU: 22511-99011 Weight: 0.060000 Brand: Price: $ 3.36 |
Grease Nipple | 4 | $ 3.36 | ||
| 3 | 43711-94JA0 Steering Bushing
SKU: 43711-94JA0 Weight: 0.125000 Brand: Price: $ 17.37 |
Steering Bushing | 2 | $ 17.37 | ||
| 4 | 09160-27013 Washer
SKU: 09160-27013 Weight: 0.060000 Brand: Price: $ 3.72 |
Washer | 2 | $ 3.72 | ||
| 5 | 09280-27004 O-Ring
SKU: 09280-27004 Weight: 0.100000 Brand: Price: $ 1.93 |
O-Ring | 1 | $ 1.93 | ||
| 6 | 43211-94JA0 Swivel Shaft Bushing (NLA)
SKU: 43211-94JA0 Weight: 0.100000 Brand: Price: $ 67.81 |
Swivel Shaft Bushing (NLA) | 2 | $ 67.81 | ||
| 7 | 55321-87J01 Aluminum Anode
SKU: 55321-87J01 Weight: 0.125000 Brand: Price: $ 7.36 |
Aluminum Anode | 1 | $ 7.36 | ||
| 8 | 09103-06281 Bolt (6x14)
SKU: 09103-06281 Weight: 0.060000 Brand: Price: $ 2.99 |
Bolt (6x14) | 1 | $ 2.99 | ||
| 9 | 43750-94JE0-0EP Steering Bracket
SKU: 43750-94JE0-0EP Weight: 0.100000 Brand: Price: $ 614.74 |
Steering Bracket | 1 | $ 614.74 | ||
| 10 | 43411-939L0 Steering Adjuster Plate
SKU: 43411-939L0 Weight: 0.100000 Brand: Price: $ 3.31 |
Steering Adjuster Plate | 1 | $ 3.31 | ||
| 11 | 43412-93901 COVER,STEERING
SKU: 43412-93901 Weight: 0.000000 Brand: Price: $ 2.60 |
COVER,STEERING | 1 | $ 2.60 | ||
| 12 | 09100-08232 Bolt (8x30)
SKU: 09100-08232 Weight: 0.060000 Brand: Price: $ 3.57 |
Bolt (8x30) | 1 | $ 3.57 | ||
| 13 | 09160-08082 Washer (8.5x16x1.2)
SKU: 09160-08082 Weight: 0.060000 Brand: Price: $ 1.63 |
Washer (8.5x16x1.2) | 1 | $ 1.63 | ||
| 14 | 29440-93J00 Steering Adjuster Spring
SKU: 29440-93J00 Weight: 0.100000 Brand: Price: $ 2.24 |
Steering Adjuster Spring | 1 | $ 2.24 | ||
| 15 | 43415-94J00 Steering Adjuster Plate
SKU: 43415-94J00 Weight: 0.100000 Brand: Price: $ 28.66 |
Steering Adjuster Plate | 1 | $ 28.66 | ||
| 16 | 43420-94J20 Steering Adjuster Friction Plate
SKU: 43420-94J20 Weight: 0.060000 Brand: Price: $ 10.88 |
Steering Adjuster Friction Plate | 1 | $ 10.88 | ||
| 17 | 43512-94JL0 Steering Adjuster Shaft
SKU: 43512-94JL0 Weight: 0.250000 Brand: Price: $ 17.66 |
Steering Adjuster Shaft | 1 | $ 17.66 | ||
| 18 | 43514-94J00 Steering Adjuster Plate
SKU: 43514-94J00 Weight: 0.060000 Brand: Price: $ 6.18 |
Steering Adjuster Plate | 1 | $ 6.18 | ||
| 19 | 43514-95J00 Steering Adjuster Washer
SKU: 43514-95J00 Weight: 0.100000 Brand: Price: $ 3.71 |
Steering Adjuster Washer | 2 | $ 3.71 | ||
| 20 | 43516-89J00 Steering Adjuster Washer
SKU: 43516-89J00 Weight: 0.100000 Brand: Price: $ 15.32 |
Steering Adjuster Washer | 2 | $ 15.32 | ||
| 21 | 29116-93J00 Bolt (6x20)
SKU: 29116-93J00 Weight: 0.060000 Brand: Price: $ 2.55 |
Bolt (6x20) | 2 | $ 2.55 | ||
| 22 | 09159-08059 Nut
SKU: 09159-08059 Weight: 0.060000 Brand: Price: $ 5.21 |
Nut | 1 | $ 5.21 | ||
| 23 | 43411-94J00 Steering Adjuster
SKU: 43411-94J00 Weight: 0.080000 Brand: Price: $ 19.50 |
Steering Adjuster | 1 | $ 19.50 | ||
| 24 | 21131-94J00 Clutch Shift Mark *
SKU: 21131-94J00 Weight: 0.060000 Brand: Price: $ 1.41 |
Clutch Shift Mark * | 1 | $ 1.41 | ||
| 25 | 09125-06063 Screw (6x10)
SKU: 09125-06063 Weight: 0.060000 Brand: Price: $ 1.96 |
Screw (6x10) | 2 | $ 1.96 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
