Suzuki DF 9.9 Parts Listings - 2013
S/N 00993F-310001 to 00993F-31XXXX

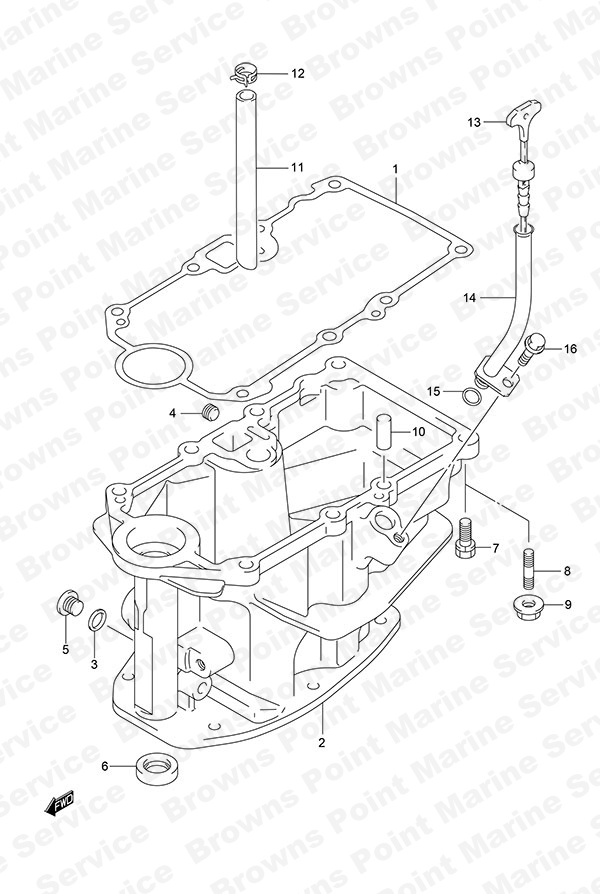

Fig. 14 - Oil Pan
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 11489-93E11 Oil Pan Gasket
SKU: 11489-93E11 Weight: 0.060000 Brand: Price: $ 28.61 |
Oil Pan Gasket | 1 | $ 28.61 | ||
| 2 | 11500-94J00-0EP Oil Pan Assembly (NLA)
SKU: 11500-94J00-0EP Weight: 0.100000 Brand: Price: $ 480.29 |
Oil Pan Assembly (NLA) | 1 | $ 480.29 | ||
| 3 | 09168-12017 Gasket (12x17x1)
SKU: 09168-12017 Weight: 0.060000 Brand: Price: $ 1.97 |
Gasket (12x17x1) | 1 | $ 1.97 | ||
| 4 | 09246-06002 Plug (NLA)
SKU: 09246-06002 Weight: 0.100000 Brand: Price: $ 1.91 |
Plug (NLA) | 1 | $ 1.91 | ||
| 5 | 09248-12009 Oil Drain Plug
SKU: 09248-12009 Weight: 0.060000 Brand: Price: $ 5.88 |
Oil Drain Plug | 1 | $ 5.88 | ||
| 6 | 09282-12L04 Oil Seal (12x25x7)
SKU: 09282-12L04 Weight: 0.060000 Brand: Price: $ 14.89 |
Oil Seal (12x25x7) | 1 | $ 14.89 | ||
| 7 | 01560-08307 BOLT
SKU: 01560-08307 Weight: 0.060000 Brand: Price: $ 3.74 |
BOLT | 6 | $ 3.74 | ||
| 8 | 01421-08257 BOLT, STUD
SKU: 01421-08257 Weight: 0.100000 Brand: Price: $ 4.37 |
BOLT, STUD | 2 | $ 4.37 | ||
| 9 | 08316-10087 Nut
SKU: 08316-10087 Weight: 0.060000 Brand: Price: $ 2.27 |
Nut | 2 | $ 2.27 | ||
| 10 | 04221-06129 PIN 6X12
SKU: 04221-06129 Weight: 0.060000 Brand: Price: $ 1.49 |
PIN 6X12 | 2 | $ 1.49 | ||
| 11 | 16515-94J00 Oil Hose (NLA)
SKU: 16515-94J00 Weight: 0.100000 Brand: Price: $ 3.44 |
Oil Hose (NLA) | 1 | $ 3.44 | ||
| 12 | 09401-12413 Clip
SKU: 09401-12413 Weight: 0.060000 Brand: Price: $ 2.24 |
Clip | 1 | $ 2.24 | ||
| 13 | 16910-94J00 Oil Level Gauge
SKU: 16910-94J00 Weight: 0.100000 Brand: Price: $ 26.71 |
Oil Level Gauge | 1 | $ 26.71 | ||
| 14 | 16930-94J00 Oil Level Gauge Guide (NLA)
SKU: 16930-94J00 Weight: 0.100000 Brand: Price: $ 12.60 |
Oil Level Gauge Guide (NLA) | 1 | $ 12.60 | ||
| 15 | 09280-09008 O-Ring
SKU: 09280-09008 Weight: 0.060000 Brand: Price: $ 3.16 |
O-Ring | 1 | $ 3.16 | ||
| 16 | 01550-06127 BOLT
SKU: 01550-06127 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 1 | $ 2.33 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
