Suzuki DF 9.9 Parts Listings - 2013
S/N 00993F-310001 to 00993F-31XXXX

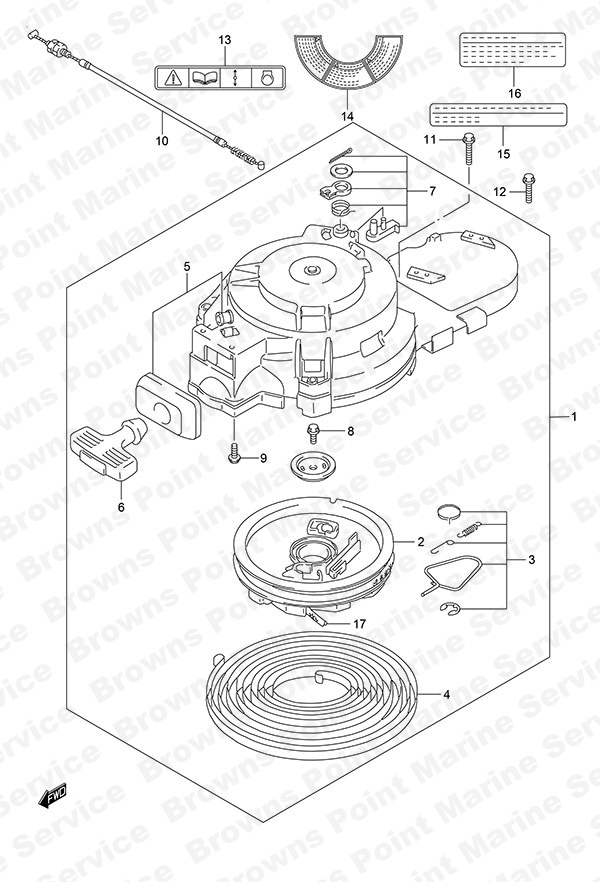

Fig. 11 - Recoil Starter

Ref# Part Number Description Req Qty* Price Each Order Remarks
1 18100-94JL0 Recoil Starter Assembly 1 $ 432.40
2 18121-94JL0 Reel 1 $ 66.16
3 18130-93E01 Ratchet Set 1 $ 17.20
4 18142-93E00 Spiral Spring 1 $ 27.50
5 18181-93900 Rope Guide (NLA) 1 $ 21.91

Not Available

6 18210-93002 Grip Assembly 1 $ 16.38
7 18280-93E00 NSI Set 1 $ 9.89
8 01570-06167 BOLT 1 $ 2.62
9 01570-06167 BOLT 1 $ 2.62
10 18290-94J01 NSI Cable Assembly 1 $ 36.12
11 01550-06207 BOLT 1 $ 2.33
12 01550-06307 BOLT 3 $ 2.74
13 69711-93E11 Label (S.I.G.P) 1 $ 4.45
14 61472-93E20 Recoil Starter Label (NLA) 1 $ 6.11

Not Available

15 61493-94J00 Clearance Label 1 $ 6.22

Not Available

16 61494-94J00 Oil Label 1 $ 6.22

Not Available

17 99000-81158-50M Starter Rope 1 $ 267.96
Opt: L:50000->1500

Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each. The information on this page is specific to the model and year and/or serial number shown in the header above.

Please verify your model and serial number before placing your order.
