Suzuki DF 9.9 Parts Listings - 2013
S/N 00993F-310001 to 00993F-31XXXX

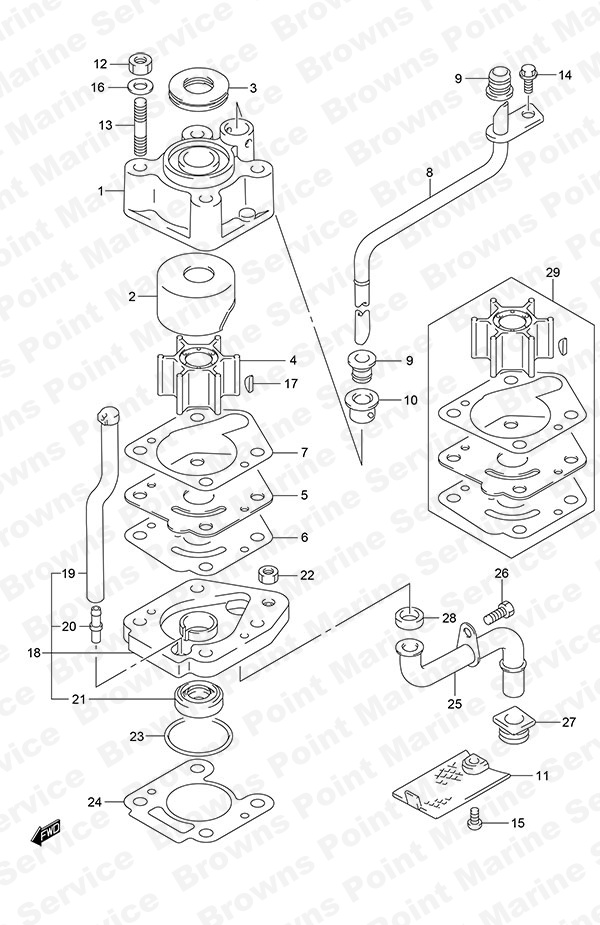

Fig. 9 - Water Pump
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 17411-94J00 Water Pump Case
SKU: 17411-94J00 Weight: 0.200000 Brand: Price: $ 41.39 |
Water Pump Case | 1 | $ 41.39 | ||
| 2 | 17413-94J00 Water Pump Case Sleeve
SKU: 17413-94J00 Weight: 0.120000 Brand: Price: $ 5.76 |
Water Pump Case Sleeve | 1 | $ 5.76 | ||
| 3 | 17417-93911 Water Pump Case Grommet
SKU: 17417-93911 Weight: 0.125000 Brand: Price: $ 2.33 |
Water Pump Case Grommet | 1 | $ 2.33 | ||
| 4 | 17461-939M0 Water Pump Impeller
SKU: 17461-939M0 Weight: 0.060000 Brand: Price: $ 21.72 |
Water Pump Impeller | 1 | $ 21.72 | ||
| 5 | 17471-93902 Water Pump Plate
SKU: 17471-93902 Weight: 0.060000 Brand: Price: $ 5.67 |
Water Pump Plate | 1 | $ 5.67 | ||
| 6 | 17472-93911 Water Pump Plate Gasket
SKU: 17472-93911 Weight: 0.060000 Brand: Price: $ 3.51 |
Water Pump Plate Gasket | 1 | $ 3.51 | ||
| 7 | 17473-94J00 Water Pump Case Gasket
SKU: 17473-94J00 Weight: 0.060000 Brand: Price: $ 3.19 |
Water Pump Case Gasket | 1 | $ 3.19 | ||
| 8-1 | 17560-94JL0 Water Tube (L)
SKU: 17560-94JL0 Weight: 0.250000 Brand: Price: $ 0.00 |
Water Tube (L) | 1 | $ 0.00 | w/Transom (L) | |
| 8-2 | 17560-94JM0 Water Tube (X)
SKU: 17560-94JM0 Weight: 0.500000 Brand: Price: $ 40.32 |
Water Tube (X) | 1 | $ 40.32 | w/Transom (X) | |
| 9 | 17563-94J00 Water Tube Grommet
SKU: 17563-94J00 Weight: 0.060000 Brand: Price: $ 1.92 |
Water Tube Grommet | 2 | $ 1.92 | ||
| 10 | 17564-93901 Water Pump Bushing
SKU: 17564-93901 Weight: 0.060000 Brand: Price: $ 2.40 |
Water Pump Bushing | 1 | $ 2.40 | ||
| 11 | 17631-92D01 Water Filter
SKU: 17631-92D01 Weight: 0.060000 Brand: Price: $ 5.05 |
Water Filter | 1 | $ 5.05 | ||
| 12 | 29141-93J00 Nut (6mm)
SKU: 29141-93J00 Weight: 0.060000 Brand: Price: $ 1.80 |
Nut (6mm) | 4 | $ 1.80 | ||
| 13 | 09108-06101 Stud Bolt (6x57)
SKU: 09108-06101 Weight: 0.200000 Brand: Price: $ 3.66 |
Stud Bolt (6x57) | 4 | $ 3.66 | ||
| 14 | 09116-06225 Bolt (6x16)
SKU: 09116-06225 Weight: 0.100000 Brand: Price: $ 2.60 |
Bolt (6x16) | 1 | $ 2.60 | ||
| 15 | 09125-06063 Screw (6x10)
SKU: 09125-06063 Weight: 0.060000 Brand: Price: $ 1.96 |
Screw (6x10) | 1 | $ 1.96 | ||
| 16 | 09160-06082 Washer (6.5x13x1.0)
SKU: 09160-06082 Weight: 0.060000 Brand: Price: $ 1.44 |
Washer (6.5x13x1.0) | 4 | $ 1.44 | ||
| 17 | 09420-03009 Key
SKU: 09420-03009 Weight: 0.060000 Brand: Price: $ 4.57 |
Key | 1 | $ 4.57 | ||
| 18 | 17450-94J11 Water Inlet Housing
SKU: 17450-94J11 Weight: 0.200000 Brand: Price: $ 42.57 |
Water Inlet Housing | 1 | $ 42.57 | ||
| 19 | 17453-93901 Water Inlet Drain
SKU: 17453-93901 Weight: 0.060000 Brand: Price: $ 4.67 |
Water Inlet Drain | 1 | $ 4.67 | ||
| 20 | 17454-94J00 Water Inlet Drain Union
SKU: 17454-94J00 Weight: 0.060000 Brand: Price: $ 2.07 |
Water Inlet Drain Union | 1 | $ 2.07 | ||
| 21 | 09289-12003 Oil Seal
SKU: 09289-12003 Weight: 0.060000 Brand: Price: $ 10.68 |
Oil Seal | 1 | $ 10.68 | ||
| 22 | 29141-93J00 Nut (6mm)
SKU: 29141-93J00 Weight: 0.060000 Brand: Price: $ 1.80 |
Nut (6mm) | 1 | $ 1.80 | ||
| 23 | 59291-94J10 O-Ring
SKU: 59291-94J10 Weight: 0.060000 Brand: Price: $ 3.77 |
O-Ring | 1 | $ 3.77 | ||
| 24 | 17452-94J00 Water Inlet Gasket
SKU: 17452-94J00 Weight: 0.060000 Brand: Price: $ 4.60 |
Water Inlet Gasket | 1 | $ 4.60 | ||
| 25 | 17520-94J01 Water Inlet Tube
SKU: 17520-94J01 Weight: 0.080000 Brand: Price: $ 17.73 |
Water Inlet Tube | 1 | $ 17.73 | ||
| 26 | 09100-06106 Bolt (6x9)
SKU: 09100-06106 Weight: 0.060000 Brand: Price: $ 2.16 |
Bolt (6x9) | 1 | $ 2.16 | ||
| 27 | 59317-94J00 Water Inlet Grommet
SKU: 59317-94J00 Weight: 0.060000 Brand: Price: $ 7.01 |
Water Inlet Grommet | 1 | $ 7.01 | ||
| 28 | 59317-94J10 Water Inlet Grommet
SKU: 59317-94J10 Weight: 0.060000 Brand: Price: $ 4.57 |
Water Inlet Grommet | 1 | $ 4.57 | ||
| 29 | 17400-94J00 Water Pump Repair Kit DF9.9 / DF15
SKU: 17400-94J00 Weight: 0.120000 Brand: Price: $ 28.02 |
Water Pump Repair Kit DF9.9 / DF15 | 1 | $ 28.02 | Optional |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
