Suzuki DF 9.9 Parts Listings - 2013
S/N 00993F-310001 to 00993F-31XXXX

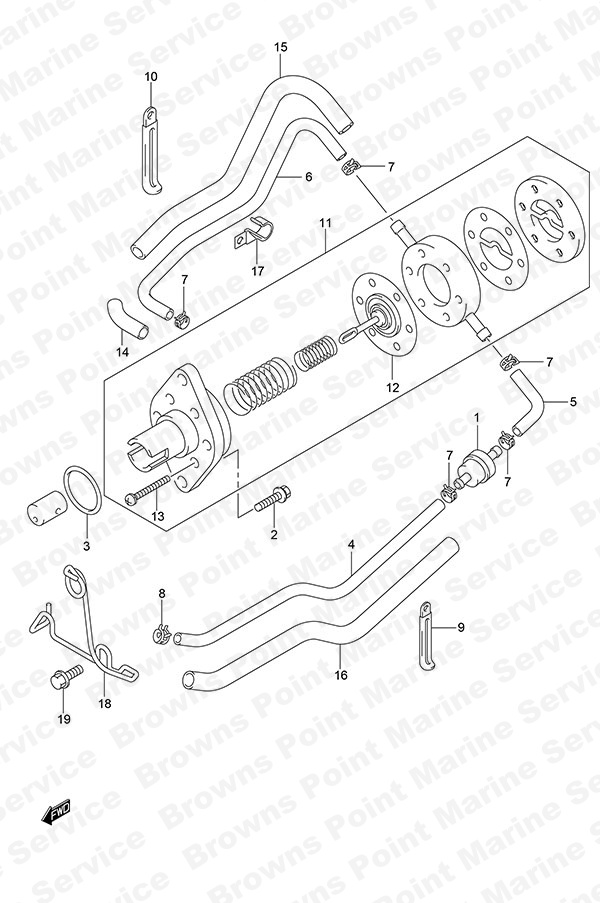

Fig. 8 - Fuel Pump
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 15410-98500 Fuel Filter
SKU: 15410-98500 Weight: 0.060000 Brand: Price: $ 10.74 |
Fuel Filter | 1 | $ 10.74 | ||
| 2 | 01550-06257 BOLT
SKU: 01550-06257 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 2 | $ 2.33 | ||
| 3 | 09280-26005 O-Ring
SKU: 09280-26005 Weight: 0.060000 Brand: Price: $ 2.33 |
O-Ring | 1 | $ 2.33 | ||
| 4 | 15191-94J01 Fuel Hose
SKU: 15191-94J01 Weight: 0.100000 Brand: Price: $ 22.81 |
Fuel Hose | 1 | $ 22.81 | Connector to Filter | |
| 5 | 09343-50001-600 Hose (5x10x600)
SKU: 09343-50001-600 Weight: 0.140000 Brand: Price: $ 35.27 |
Hose (5x10x600) | 1 | $ 35.27 | Filter to Pump L:600->60 | |
| 6 | 09343-50001-600 Hose (5x10x600)
SKU: 09343-50001-600 Weight: 0.140000 Brand: Price: $ 35.27 |
Hose (5x10x600) | 1 | $ 35.27 | Pump to Carb L:600->460 | |
| 7 | 09401-09404 Clip
SKU: 09401-09404 Weight: 0.060000 Brand: Price: $ 2.06 |
Clip | 5 | $ 2.06 | ||
| 8 | 09401-11422 Clip
SKU: 09401-11422 Weight: 0.060000 Brand: Price: $ 2.24 |
Clip | 1 | $ 2.24 | ||
| 9 | 29404-93J11 Clamp (L:65)
SKU: 29404-93J11 Weight: 0.060000 Brand: Price: $ 1.57 |
Clamp (L:65) | 2 | $ 1.57 | ||
| 10 | 09404-08207 Clamp (L:97)
SKU: 09404-08207 Weight: 0.100000 Brand: Price: $ 2.37 |
Clamp (L:97) | 1 | $ 2.37 | ||
| 11 | 15100-94J03 Fuel Pump Assembly
SKU: 15100-94J03 Weight: 0.600000 Brand: Price: $ 166.14 |
Fuel Pump Assembly | 1 | $ 166.14 | ||
| 12 | 15170-94J03 Fuel Pump Diaphragm Set
SKU: 15170-94J03 Weight: 0.080000 Brand: Price: $ 27.53 |
Fuel Pump Diaphragm Set | 1 | $ 27.53 | ||
| 13 | 15251-93E01 Screw
SKU: 15251-93E01 Weight: 0.060000 Brand: Price: $ 2.53 |
Screw | 6 | $ 2.53 | ||
| 14 | 18498-94JL0-050 Protector (L:50)
SKU: 18498-94JL0-050 Weight: 0.250000 Brand: Price: $ 0.00 |
Protector (L:50) | 1 | $ 0.00 | ||
| 15 | 18498-94JL0-320 Protector (L:320)
SKU: 18498-94JL0-320 Weight: 0.250000 Brand: Price: $ 0.00 |
Protector (L:320) | 1 | $ 0.00 | ||
| 16 | 18498-94JL0-390 Protector (L:390)
SKU: 18498-94JL0-390 Weight: 0.250000 Brand: Price: $ 0.00 |
Protector (L:390) | 1 | $ 0.00 | ||
| 17 | 09403-12318 Clamp (NLA)
SKU: 09403-12318 Weight: 0.100000 Brand: Price: $ 1.88 |
Clamp (NLA) | 1 | $ 1.88 | ||
| 18 | 65793-94J01 Fuel Hose Holder
SKU: 65793-94J01 Weight: 0.100000 Brand: Price: $ 15.90 |
Fuel Hose Holder | 1 | $ 15.90 | ||
| 19 | 09116-08137 Bolt (8x22)
SKU: 09116-08137 Weight: 0.060000 Brand: Price: $ 7.44 |
Bolt (8x22) | 2 | $ 7.44 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
