Suzuki DF 9.9 Parts Listings - 2013
S/N 00993F-310001 to 00993F-31XXXX

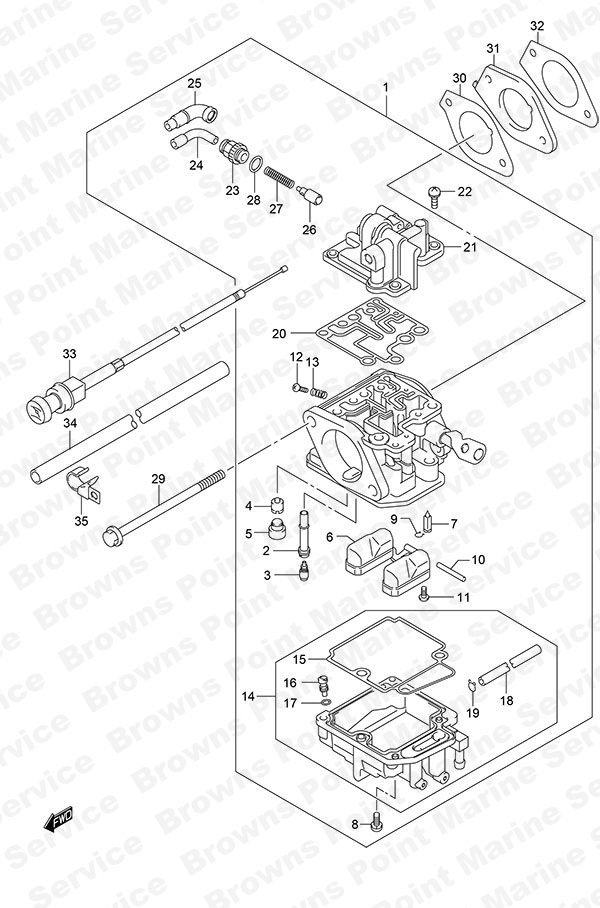

Fig. 7 - Carburetor
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 13200-94J20 Carburetor Assembly
SKU: 13200-94J20 Weight: 1.000000 Brand: Price: $ 475.20 |
Carburetor Assembly | 1 | $ 475.20 | ||
| 2 | 13236-94J10 Main Nozzle
SKU: 13236-94J10 Weight: 0.060000 Brand: Price: $ 20.47 |
Main Nozzle | 1 | $ 20.47 | ||
| 3 | 09491-70017 Main Jet #70
SKU: 09491-70017 Weight: 0.060000 Brand: Price: $ 15.71 |
Main Jet #70 | 1 | $ 15.71 | ||
| 4 | 09492-38009 Pilot Jet #38
SKU: 09492-38009 Weight: 0.060000 Brand: Price: $ 16.18 |
Pilot Jet #38 | 1 | $ 16.18 | ||
| 5 | 13239-94J00 Rubber Cap
SKU: 13239-94J00 Weight: 0.060000 Brand: Price: $ 6.88 |
Rubber Cap | 1 | $ 6.88 | ||
| 6 | 13250-94J00 Carburetor Float
SKU: 13250-94J00 Weight: 0.060000 Brand: Price: $ 34.88 |
Carburetor Float | 1 | $ 34.88 | ||
| 7 | 13370-94J00 Needle Valve
SKU: 13370-94J00 Weight: 0.060000 Brand: Price: $ 21.38 |
Needle Valve | 1 | $ 21.38 | ||
| 8 | 13247-94J00 Screw
SKU: 13247-94J00 Weight: 0.100000 Brand: Price: $ 9.12 |
Screw | 4 | $ 9.12 | ||
| 9 | 13375-26E00 Valve Clip
SKU: 13375-26E00 Weight: 0.060000 Brand: Price: $ 5.74 |
Valve Clip | 1 | $ 5.74 | ||
| 10 | 13254-94J00 Float Pin
SKU: 13254-94J00 Weight: 0.060000 Brand: Price: $ 3.07 |
Float Pin | 1 | $ 3.07 | ||
| 11 | 13802-94J00 Screw
SKU: 13802-94J00 Weight: 0.100000 Brand: Price: $ 3.31 |
Screw | 1 | $ 3.31 | ||
| 12 | 13534-94J00 Stop Screw
SKU: 13534-94J00 Weight: 0.060000 Brand: Price: $ 7.62 |
Stop Screw | 1 | $ 7.62 | ||
| 13 | 13268-94J00 Spring
SKU: 13268-94J00 Weight: 0.100000 Brand: Price: $ 4.39 |
Spring | 1 | $ 4.39 | ||
| 14 | 13240-94J00 Float Chamber Assembly
SKU: 13240-94J00 Weight: 0.400000 Brand: Price: $ 99.49 |
Float Chamber Assembly | 1 | $ 99.49 | ||
| 15 | 13251-94J00 Float Chamber Gasket
SKU: 13251-94J00 Weight: 0.060000 Brand: Price: $ 10.80 |
Float Chamber Gasket | 1 | $ 10.80 | ||
| 16 | 13279-94J00 Drain Screw
SKU: 13279-94J00 Weight: 0.060000 Brand: Price: $ 5.31 |
Drain Screw | 1 | $ 5.31 | ||
| 17 | 13523-94J00 O-Ring
SKU: 13523-94J00 Weight: 0.060000 Brand: Price: $ 4.21 |
O-Ring | 1 | $ 4.21 | ||
| 18 | 13684-94J00 Pipe (NLA)
SKU: 13684-94J00 Weight: 0.100000 Brand: Price: $ 7.36 |
Pipe (NLA) | 1 | $ 7.36 | ||
| 19 | 09401-05402-XC0 Clip
SKU: 09401-05402-XC0 Weight: 0.100000 Brand: Price: $ 1.43 |
Clip | 1 | $ 1.43 | ||
| 20 | 13345-94J00 U-Ring
SKU: 13345-94J00 Weight: 0.060000 Brand: Price: $ 10.24 |
U-Ring | 1 | $ 10.24 | ||
| 21 | 13346-94J00 Cover (NLA)
SKU: 13346-94J00 Weight: 0.100000 Brand: Price: $ 37.92 |
Cover (NLA) | 1 | $ 37.92 | ||
| 22 | 13247-94J00 Screw
SKU: 13247-94J00 Weight: 0.100000 Brand: Price: $ 9.12 |
Screw | 4 | $ 9.12 | ||
| 23 | 13361-94J00 Cable Holder
SKU: 13361-94J00 Weight: 0.060000 Brand: Price: $ 13.87 |
Cable Holder | 1 | $ 13.87 | ||
| 24 | 13362-94J00 Cable Guide
SKU: 13362-94J00 Weight: 0.200000 Brand: Price: $ 12.78 |
Cable Guide | 1 | $ 12.78 | ||
| 25 | 13363-94J00 Cable Sealing Cap
SKU: 13363-94J00 Weight: 0.060000 Brand: Price: $ 11.58 |
Cable Sealing Cap | 1 | $ 11.58 | ||
| 26 | 13364-94J00 Starter Valve
SKU: 13364-94J00 Weight: 0.060000 Brand: Price: $ 15.32 |
Starter Valve | 1 | $ 15.32 | ||
| 27 | 13365-94J00 Spring
SKU: 13365-94J00 Weight: 0.060000 Brand: Price: $ 4.31 |
Spring | 1 | $ 4.31 | ||
| 28 | 13295-14G00 O-Ring
SKU: 13295-14G00 Weight: 0.060000 Brand: Price: $ 3.54 |
O-Ring | 1 | $ 3.54 | ||
| 29 | 09103-06276 Bolt (6x100)
SKU: 09103-06276 Weight: 0.200000 Brand: Price: $ 3.74 |
Bolt (6x100) | 2 | $ 3.74 | ||
| 30 | 13125-94J01 Carburetor Gasket
SKU: 13125-94J01 Weight: 0.060000 Brand: Price: $ 4.64 |
Carburetor Gasket | 1 | $ 4.64 | ||
| 31 | 13124-94J00 Carburetor Insulator
SKU: 13124-94J00 Weight: 0.125000 Brand: Price: $ 10.47 |
Carburetor Insulator | 1 | $ 10.47 | ||
| 32 | 13127-94J00 Insulator Gasket
SKU: 13127-94J00 Weight: 0.060000 Brand: Price: $ 4.64 |
Insulator Gasket | 1 | $ 4.64 | ||
| 33 | 13640-94J00 Start Knob
SKU: 13640-94J00 Weight: 0.250000 Brand: Price: $ 28.66 |
Start Knob | 1 | $ 28.66 | ||
| 34 | 18498-94JM0-250 Starter Cable Protector
SKU: 18498-94JM0-250 Weight: 0.250000 Brand: Price: $ 0.00 |
Starter Cable Protector | 1 | $ 0.00 | ||
| 35 | 09403-12318 Clamp (NLA)
SKU: 09403-12318 Weight: 0.100000 Brand: Price: $ 1.88 |
Clamp (NLA) | 1 | $ 1.88 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
