Suzuki DF 9.9 Parts Listings - 2013
S/N 00993F-310001 to 00993F-31XXXX

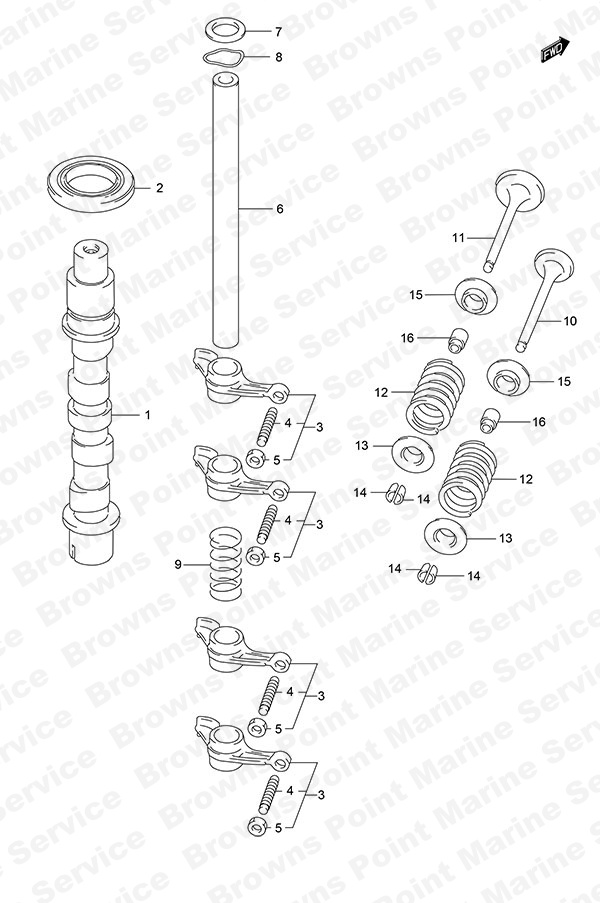

Fig. 5 - Camshaft
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 12711-94JM0 Camshaft wo/Decomp
SKU: 12711-94JM0 Weight: 5.000000 Brand: Price: $ 217.82 |
Camshaft wo/Decomp | 1 | $ 217.82 | ||
| 2 | 09283-25096 Oil Seal
SKU: 09283-25096 Weight: 0.125000 Brand: Price: $ 10.80 |
Oil Seal | 1 | $ 10.80 | ||
| 3 | 12840-89L00 Rocker Arm
SKU: 12840-89L00 Weight: 0.250000 Brand: Price: $ 24.00 |
Rocker Arm | 4 | $ 24.00 | ||
| 4 | 12842-49201 Tappet Adjust Screw
SKU: 12842-49201 Weight: 0.100000 Brand: Price: $ 5.97 |
Tappet Adjust Screw | 4 | $ 5.97 | ||
| 5 | 12843-27A00 Tappet Adjust Nut
SKU: 12843-27A00 Weight: 0.100000 Brand: Price: $ 3.11 |
Tappet Adjust Nut | 4 | $ 3.11 | ||
| 6 | 12861-93E00 Rocker Arm Shaft
SKU: 12861-93E00 Weight: 0.250000 Brand: Price: $ 15.06 |
Rocker Arm Shaft | 1 | $ 15.06 | ||
| 7 | 09160-13010 Washer
SKU: 09160-13010 Weight: 0.060000 Brand: Price: $ 1.81 |
Washer | 1 | $ 1.81 | ||
| 8 | 09164-14012 Wave Washer
SKU: 09164-14012 Weight: 0.100000 Brand: Price: $ 1.48 |
Wave Washer | 1 | $ 1.48 | ||
| 9 | 12891-94J00 Rocker Arm Shaft Spring
SKU: 12891-94J00 Weight: 0.125000 Brand: Price: $ 1.51 |
Rocker Arm Shaft Spring | 1 | $ 1.51 | ||
| 10 | 12911-93E00 Intake Valve
SKU: 12911-93E00 Weight: 0.200000 Brand: Price: $ 30.87 |
Intake Valve | 2 | $ 30.87 | ||
| 11 | 12915-93E00 Exhaust Valve
SKU: 12915-93E00 Weight: 0.200000 Brand: Price: $ 53.22 |
Exhaust Valve | 2 | $ 53.22 | ||
| 12 | 12921-93E00 Valve Spring
SKU: 12921-93E00 Weight: 0.100000 Brand: Price: $ 7.28 |
Valve Spring | 4 | $ 7.28 | ||
| 13 | 12931-78G00 Valve Spring Retainer
SKU: 12931-78G00 Weight: 0.060000 Brand: Price: $ 4.25 |
Valve Spring Retainer | 4 | $ 4.25 | ||
| 14 | 12932-24400 Valve Cotter
SKU: 12932-24400 Weight: 0.060000 Brand: Price: $ 2.04 |
Valve Cotter | 8 | $ 2.04 | ||
| 15 | 12933-71C00 Valve Spring Seat
SKU: 12933-71C00 Weight: 0.100000 Brand: Price: $ 2.49 |
Valve Spring Seat | 4 | $ 2.49 | ||
| 16 | 09289-05006 Valve Stem Seal
SKU: 09289-05006 Weight: 0.060000 Brand: Price: $ 4.02 |
Valve Stem Seal | 4 | $ 4.02 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
